Oracle data to mysql FlinkSQL CDC to achieve synchronization
2022-08-02 01:00:00 【m0_67392811】
环境准备
1、flink 1.13.0
2、oracle 11g
3、flink-connector-oracle-cdc 2.1.0
1、oracle环境配置
首先需要安装oracle环境,参考 https://blog.csdn.net/qq_36039236/article/details/124224500?spm=1001.2014.3001.5502
进入容器进行配置:
docker exec -it oracle11 bash
# 切换到oracle用户
su - oracle
# 创建数据需要的目录,需要提前创建,否则报错目录不存在
mkdir /home/oracle/oracle-data-test
sqlplus /nolog
# 以 DBA 身份连接到数据库
SQL> conn /as sysdba
接下来进行相关重要的配置:
-- 启用日志归档
alter system set db_recovery_file_dest_size = 10G;
alter system set db_recovery_file_dest = '/home/oracle/oracle-data-test' scope=spfile;
shutdown immediate;
startup mount;
alter database archivelog;
alter database open;
-- 检查日志归档是否开启
archive log list;
-- 为捕获的数据库启用补充日志记录,以便数据更改捕获更改的数据库行之前的状态,下面说明了如何在数据库级别进行配置.
ALTER DATABASE ADD SUPPLEMENTAL LOG DATA;
-- 创建表空间
CREATE TABLESPACE logminer_tbs DATAFILE '/home/oracle/logminer_tbs.dbf' SIZE 25M REUSE AUTOEXTEND ON MAXSIZE UNLIMITED;
-- 创建用户family绑定表空间LOGMINER_TBS
CREATE USER family IDENTIFIED BY zyhcdc DEFAULT TABLESPACE LOGMINER_TBS QUOTA UNLIMITED ON LOGMINER_TBS;
-- 授予family用户dba的权限
grant connect,resource,dba to family;
-- 并授予权限
GRANT CREATE SESSION TO family;
GRANT SELECT ON V_$DATABASE to family;
GRANT FLASHBACK ANY TABLE TO family;
GRANT SELECT ANY TABLE TO family;
GRANT SELECT_CATALOG_ROLE TO family;
GRANT EXECUTE_CATALOG_ROLE TO family;
GRANT SELECT ANY TRANSACTION TO family;
GRANT EXECUTE ON SYS.DBMS_LOGMNR TO family;
GRANT SELECT ON V_$LOGMNR_CONTENTS TO family;
GRANT CREATE TABLE TO family;
GRANT LOCK ANY TABLE TO family;
GRANT ALTER ANY TABLE TO family;
GRANT CREATE SEQUENCE TO family;
GRANT EXECUTE ON DBMS_LOGMNR TO family;
GRANT EXECUTE ON DBMS_LOGMNR_D TO family;
GRANT SELECT ON V_$LOG TO family;
GRANT SELECT ON V_$LOG_HISTORY TO family;
GRANT SELECT ON V_$LOGMNR_LOGS TO family;
GRANT SELECT ON V_$LOGMNR_CONTENTS TO family;
GRANT SELECT ON V_$LOGMNR_PARAMETERS TO family;
GRANT SELECT ON V_$LOGFILE TO family;
GRANT SELECT ON V_$ARCHIVED_LOG TO family;
GRANT SELECT ON V_$ARCHIVE_DEST_STATUS TO family;
本地使用Navcat连接oracle:
-- 创建 STUDENT_INFO 表
create table student_info (
sid number(10) constraint pk_sid primary key,
sname varchar2(10),
sex varchar2(2)
);
-- 修改STUDENT_INFO表让其支持增量日志,这句先在Oracle里创建user表再执行
ALTER TABLE FAMILY.STUDENT_INFO ADD SUPPLEMENTAL LOG DATA (ALL) COLUMNS;
2、flink cdc程序开发
maven依赖:
<properties>
<java.version>1.8</java.version>
<maven.compiler.source>${java.version}</maven.compiler.source>
<maven.compiler.target>${java.version}</maven.compiler.target>
<flink.version>1.13.0</flink.version>
<scala.version>2.12</scala.version>
</properties>
<dependencies>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-planner-blink_${scala.version}</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>com.ververica</groupId>
<artifactId>flink-connector-oracle-cdc</artifactId>
<version>2.1.0</version>
</dependency>
<dependency>
<groupId>com.oracle.database.jdbc</groupId>
<artifactId>ojdbc10</artifactId>
<version>19.10.0.0</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-streaming-java_${scala.version}</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-clients_${scala.version}</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-cep_${scala.version}</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-java</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-json</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.68</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.20</version>
</dependency>
<!--Flink 默认使用的是 slf4j 记录日志,相当于一个日志的接口,我们这里使用 log4j 作为
具体的日志实现-->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>1.7.25</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>1.7.25</version>
</dependency>
<dependency>
<groupId>org.apache.logging.log4j</groupId>
<artifactId>log4j-to-slf4j</artifactId>
<version>2.14.0</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-assembly-plugin</artifactId>
<version>3.0.0</version>
<configuration>
<descriptorRefs>
<descriptorRef>jar-with-dependencies</descriptorRef>
</descriptorRefs>
</configuration>
<executions>
<execution>
<id>make-assembly</id>
<phase>package</phase>
<goals>
<goal>single</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
功能代码:
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.TableResult;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
/**
* 测试 flink cdc 实时获取oracle数据变化
* @author zyh
*/
public class FlinkCdcOracleExample {
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setParallelism(1);
env.disableOperatorChaining();
StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env);
tableEnv.executeSql("CREATE TABLE student_info (
" +
" SNO INT NOT NULL,
" + // 注意字段名要大写
" SNAME STRING,
" +
" SEX STRING,
" +
" PRIMARY KEY(SNO) NOT ENFORCED
" +
" ) WITH (
" +
" 'connector' = 'oracle-cdc',
" +
" 'hostname' = 'localhost',
" +
" 'port' = '1521',
" +
" 'username' = 'family',
" +
" 'password' = 'zyhcdc',
" +
" 'database-name' = 'helowin',
" +
" 'schema-name' = 'FAMILY',
" + // 注意这里要大写
" 'table-name' = 'STUDENT_INFO',
" +
" 'debezium.log.mining.continuous.mine'='true',
"+
" 'debezium.log.mining.strategy'='online_catalog',
" +
" 'debezium.database.tablename.case.insensitive'='false',
"+
" 'scan.startup.mode' = 'initial')");
TableResult tableResult = tableEnv.executeSql("select * from student_info");
tableResult.print();
env.execute();
}
}
启动测试:

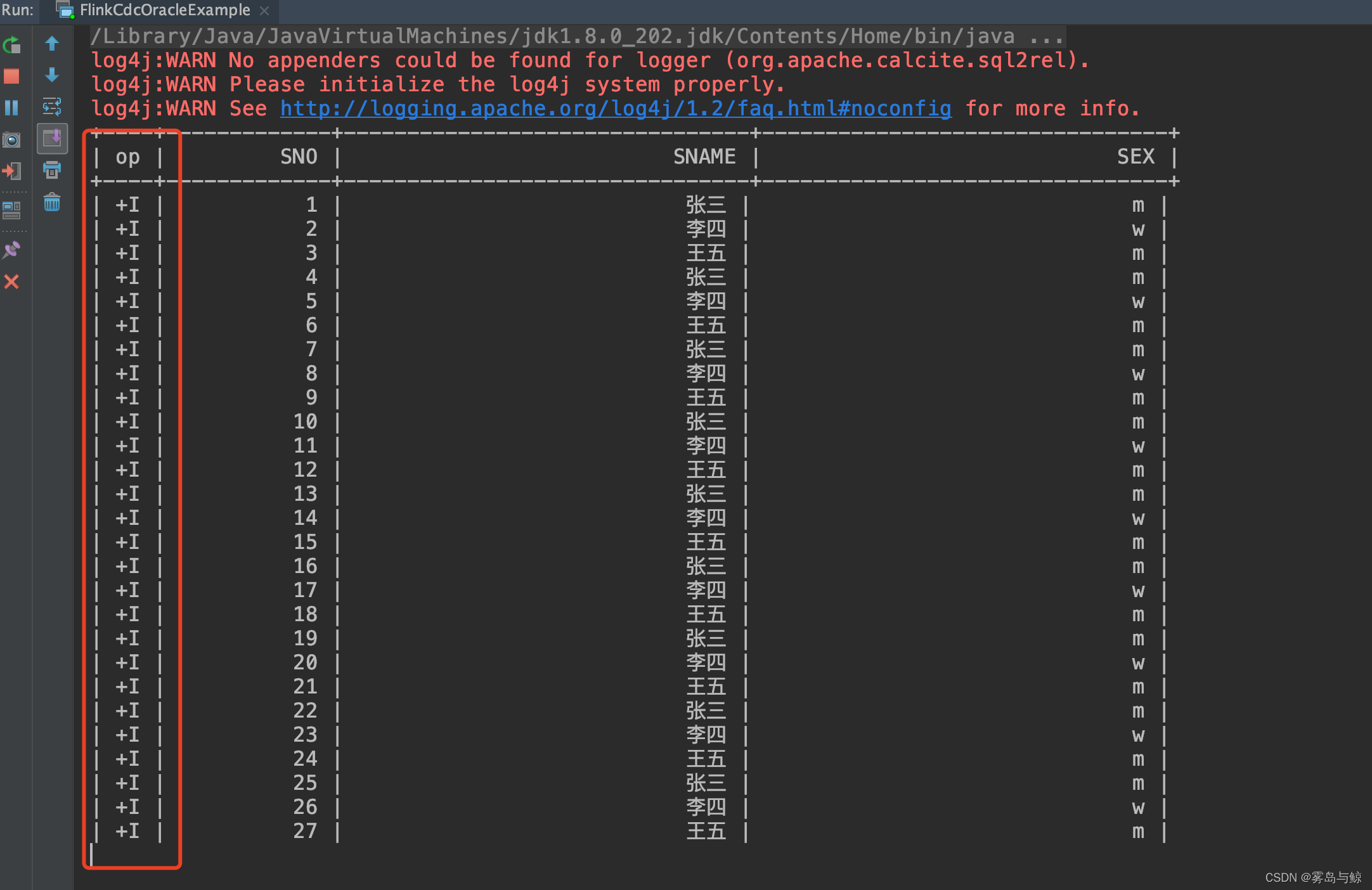

由于设置了’scan.startup.mode’ = ‘initial’,所以程序会初始化表中现有的数据.
现在对数据表执行以下操作:
-- 新增一条数据
insert into student_info (sno, sname, sex)
values (28, 'zyh-test', 'm');
-- 更新数据
update student_info t set t.sname='zyh666', t.sex='m' where t.sno=26;
-- 删除数据
delete from student_info where sno = 25;
程序执行结果:
自此,oracle-cdc的功能已经测试成功,将对应的结果写到mysql表中,可以使用flink sql将对应的结果写入mysql中,由于上面执行的结果属于撤回流,需要在flink sql中创建mysql sink表的时候指定主键,写入mysql的功能这里就不再贴出,小伙伴可以自己下去实现.
3、中间遇到的问题,排查解决
1、读取数据有延迟,在create语句配置以下两个选项进行解决:
'debezium.log.mining.strategy'='online_catalog',
'debezium.log.mining.continuous.mine'='true'
2、找不到表
[ERROR] Could not execute SQL statement. Reason:
io.debezium.DebeziumException: Supplemental logging not configured for table FAMILY.STUDENT_INFO Use command: ALTER TABLE LIUYUN.flink ADD SUPPLEMENTAL LOG DATA (ALL) COLUMNS
参看文档： https://docs.oracle.com/cd/E11882_01/server.112/e41084/sql_elements008.htm
可以在 create 语句中加上 ：
'debezium.database.tablename.case.insensitive'='false'
参考资料
另外,除此之外,还可以使用kafka connect结合debezium的方式采集oracle数据,不过使用这种方式采集的是最原始的oracle变更日志数据,需要开发者再去进行一次日志内容的解析,增加了开发的难度以及维护成本,这种方式的具体操作步骤将会在下篇文章给出,希望感兴趣的小伙伴能够点个关注,哈哈～
