[learning notes] xr872 audio driver framework analysis

Xradio Sdk Of Audio Drive framework and Linux Of ASOC The drive frame is very similar , It just simplifies a lot .

Diagram of the relationship between driver and chip

Below SOC It means XR872 chip , Here we use AC107 As an example to explain ,XR872 In fact, there is only one way I2S, Two routes are drawn here to facilitate the follow-up explanation .

As can be seen from the above figure ：

On software , A complete sound card , Mainly by platform_driver and codec_driver form , Their composition and related configuration information are provided by snd_card_board_config determine , The system builds a new sound card according to this configuration .

On hardware ,XR872 adopt I2C and I2S And AC107 Connected to a ,I2C The interface is mainly in the codec driver Middle configuration codec , Such as sampling rate 、 Sampling bit depth 、 Data transmission format, etc . and I2S Mainly in the platform driver For audio data transmission .

Key data structure analysis

On software , There are mainly four core data structures , The relationship between them is as follows ：

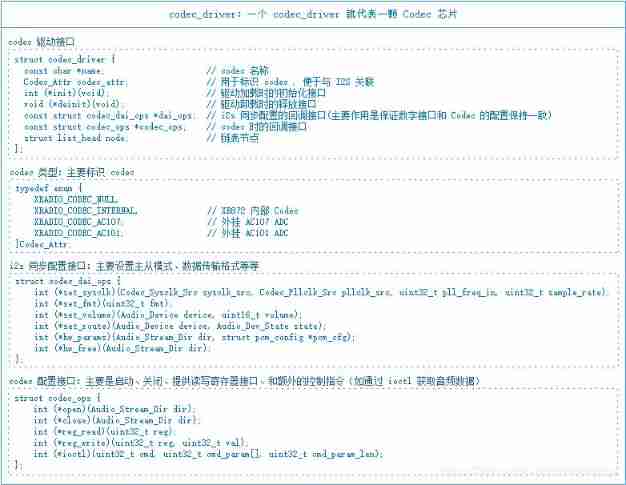

struct platform_driver：

It is a platform related digital audio interface driver , The main interaction objects are XR872 Inside   I2S Interface , Such as configuration I2S Master-slave relationship ,  Data transfer format , clock frequency , start-up 、 stop it I2S The data transfer . One platform_driver On behalf of SOC On the one I2S controller .

struct codec_driver：

It is related to the concrete Codec Chip related drivers , The main interaction objects are AC107 , Play the role of configuration AC107 The function of the relevant register , The specific configuration will be the same as platfrom_driver Association synchronization , Such as configuration I2S Master-slave relationship , Data transfer format , clock frequency , start-up 、 Stop data collection . One  codec_driver It means one Codec chip .

struct snd_card_board_config：

Describe the basic parameters of a sound card , Specify which codec_driver and Which one? platform_driver form . amount to Linux ASOC Medium  Machine Driving role .

struct snd_card： The specific sound card reflects , One snd_card Corresponds to a sound card , Dynamically created during system operation .

Sound card registration process

One 、Codec Drive workflow （ With AC107 For example ：src\driver\chip\codec\ac107.c）

1. Construct a struct codec_driver structure , And implement the relevant callback interface in the structure .

/*** codec dai ops ****/
static const struct codec_dai_ops ac107_codec_dai_ops = {
	.set_sysclk = ac107_dai_set_sysclk,
	.set_fmt    = ac107_dai_set_fmt,
	.set_volume = ac107_dai_set_volume,
	.set_route  = ac107_dai_set_route,
	.hw_params  = ac107_dai_hw_params,
	.hw_free    = ac107_dai_hw_free,
};

/*** codec ops ****/
static const struct codec_ops ac107_codec_ops = {
	.open  = ac107_codec_open,
	.close = ac107_codec_close,
	.reg_read  = ac107_codec_reg_read,
	.reg_write = ac107_codec_reg_write,
	.ioctl = ac107_codec_ioctl,
};

/*** codec driver ****/
static struct codec_driver ac107_codec_drv = {
	.name = AC107_CODEC_NAME,
	.codec_attr = XRADIO_CODEC_AC107,
	.init   = ac107_codec_init,
	.deinit = ac107_codec_deinit,
	.dai_ops   = &ac107_codec_dai_ops,
	.codec_ops = &ac107_codec_ops,
};

2. Provide a register and unload interface , The final implementation will  ac107_codec_drv Add to  hal_snd_codec_list Linked list .

HAL_Status ac107_codec_register(void)
{
	// ......

	//  initialization  I2C  controller
	if(HAL_I2C_Init(i, &i2c_param) != HAL_OK){
		AC107_ERR("I2C-[%d] init Fail...\n",i);
	}

	// ......

	//  adopt  I2C  Read chip ID, Used to confirm whether the chip exists
	AC107_I2C_READ(i2c_id, ac107_i2c_addr[i], CHIP_AUDIO_RST, I2C_MEMADDR_SIZE_8BIT, &chip_id, 1);
	if(chip_id == 0x4B){
		AC107_DBG("AC107-[0x%02x] on I2C-[%d] auto detect success\n",ac107_i2c_addr[i],i2c_id);
		ac107_i2c_cfg_temp[detect_nums].i2c_id = i2c_id;
		ac107_i2c_cfg_temp[detect_nums].i2c_addr = ac107_i2c_addr[i];
		detect_nums++;
	}

	// ......

	//  take  ac107_codec_drv  Add to  hal_snd_codec_list  In the list
	list_add(&ac107_codec_drv.node, &hal_snd_codec_list);

	return HAL_OK;
}

HAL_Status ac107_codec_unregister(void)
{
	// ......

	//  Traverse  hal_snd_codec_list  Link the list and put  ac107_codec_drv  remove
	list_for_each_entry(codec_drv_ptr, &hal_snd_codec_list, node){
		if(codec_drv_ptr == &ac107_codec_drv){
			list_del(&ac107_codec_drv.node);
			break;
		}
	}

	// ......

	return HAL_OK;
}


// src\driver\chip\hal_snd_card.c
HAL_Status HAL_SndCard_CodecRegisterAc107(void)
{
	return ac107_codec_register();
}

HAL_Status HAL_SndCard_CodecUnregisterAc107(void)
{
	return ac107_codec_unregister();
}

Two 、platform Drive workflow （ With I2S For example ：src\driver\chip\hal_i2s.c）

1. structure  struct platform_driver data structure , And implement the relevant callback interface in the structure .

/*** platform dai ops ***/
static const struct platform_dai_ops xradio_i2s_dai_ops = {
	.set_fmt = xradio_i2s_dai_set_fmt,
	.set_clkdiv = xradio_i2s_set_clkdiv,
	.hw_params = xradio_i2s_dai_hw_params,
	.hw_free = xradio_i2s_dai_hw_free,
};

/*** platform ops ***/
static const struct platform_ops xradio_i2s_ops = {
	.open = xradio_i2s_open,
	.close = xradio_i2s_close,
	.pcm_read = xradio_i2s_pcm_read,
	.pcm_write = xradio_i2s_pcm_write,
	.ioctl = xradio_i2s_ioctl,
};

/*** platform driver ***/
static struct platform_driver xradio_i2s_drv = {
	.name = XRADIO_PLATFORM_I2S_NAME,
	.platform_attr = XRADIO_PLATFORM_I2S,
	.init = xradio_i2s_init,
	.deinit = xradio_i2s_deinit,
	.dai_ops = &xradio_i2s_dai_ops,
	.platform_ops = &xradio_i2s_ops,
};

2.  Provide a register and unload interface , The final implementation will  xradio_i2s_drv  Add to  hal_snd_platform_list Linked list .

HAL_Status xradio_i2s_register(void)
{
	// ......

	//  take  xradio_i2s_drv  Add to  hal_snd_platform_list  In the list
	list_add(&xradio_i2s_drv.node, &hal_snd_platform_list);

	return HAL_OK;
}

HAL_Status xradio_i2s_unregister(void)
{
	// ......

	//  Traverse  hal_snd_platform_list  Link the list and put  xradio_i2s_drv  remove
	list_for_each_entry(i2s_drv_ptr, &hal_snd_platform_list, node){
		if(i2s_drv_ptr == &xradio_i2s_drv){
			list_del(&xradio_i2s_drv.node);
			break;
		}
	}

	// ......

	return HAL_OK;
}

// src\driver\chip\hal_snd_card.c
HAL_Status HAL_SndCard_PlatformRegisterI2S(void)
{
	return xradio_i2s_register();
}

HAL_Status HAL_SndCard_PlatformUnregisterI2S(void)
{
	return xradio_i2s_unregister();
}

3、 ... and 、 In the board level configuration file , Provide snd_card_board_config  relation Codec and Platform And provide access interface （ Take the proposal configuration as an example ：project\common\board\xr872_evb_ai\board_config.c）

board_ioctl() --->  board_get_pinmux_info() ---> snd_cards_board_cfg[] ---> ac107_codec_snd_card

#if PRJCONF_AC107_SOUNDCARD_EN
__xip_rodata const static struct snd_card_board_config ac107_codec_snd_card = {
	.card_num = SND_CARD_1,
	.card_name = HAL_SND_CARD_NAME(AC107_CODEC_NAME, SND_CARD_SUFFIX),
	.codec_link = XRADIO_CODEC_AC107,
	.platform_link = XRADIO_PLATFORM_I2S,
	.pa_switch_ctl = NULL,
	.codec_sysclk_src = SYSCLK_SRC_MCLK,
	.codec_pllclk_src = 0,
	.codec_pll_freq_in = 0,
	.i2s_fmt = DAIFMT_CBS_CFS | DAIFMT_I2S | DAIFMT_NB_NF,
};
#endif

const static struct snd_card_board_config *snd_cards_board_cfg[] = {
// ......

#if PRJCONF_AC107_SOUNDCARD_EN
	&ac107_codec_snd_card,
#endif

// ......
};

static HAL_Status board_get_pinmux_info(uint32_t major, uint32_t minor, uint32_t param, struct board_pinmux_info info[])
{
	// ......
	switch (major) {
	// ......
	//  Realization  HAL_DEV_MAJOR_AUDIO_CODEC  command ,  according to  card_num  To return the corresponding  snd_card_board_config
	case HAL_DEV_MAJOR_AUDIO_CODEC:
		for(i=0; i<HAL_ARRAY_SIZE(snd_cards_board_cfg); i++){
			if(snd_cards_board_cfg[i]->card_num == minor){
				if(snd_cards_board_cfg[i]->pa_switch_ctl){
					info[0].pinmux = snd_cards_board_cfg[i]->pa_switch_ctl->pin_param;
					info[0].count  = snd_cards_board_cfg[i]->pa_switch_ctl->pin_param_cnt;
				}
			}
		}
		break;

	// ......
	}

	return ret;
}


HAL_Status board_ioctl(HAL_BoardIoctlReq req, uint32_t param0, uint32_t param1)
{
	// ......
	switch (req) {
	case HAL_BIR_PINMUX_INIT:
	case HAL_BIR_PINMUX_DEINIT:
		memset(info, 0, sizeof(info));
		major = HAL_DEV_MAJOR((HAL_Dev_t)param0);
		minor = HAL_DEV_MINOR((HAL_Dev_t)param0);
		ret = board_get_pinmux_info(major, minor, param1, info);
	// ......
	}
	// ......

	return ret;
}

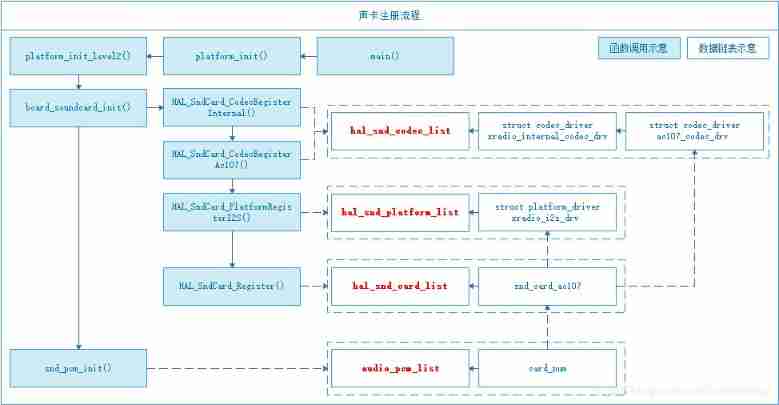

Four 、 Trigger the sound card registration process

1.  stay main.c Entry function call  platform_init()

__sram_text
void platform_init(void)
{
	platform_init_level0();
	platform_init_level1();
	platform_init_level2();    //  Perform secondary initialization
	platform_show_info();
}


/* init extern platform hardware and services */
__weak void platform_init_level2(void)
{
	// ...
#if PRJCONF_AUDIO_SNDCARD_EN
	board_soundcard_init();    //  Initialize the sound card
	audio_manager_init();
	snd_pcm_init();
  #if PRJCONF_AUDIO_CTRL_EN
	audio_ctrl_init();
  #endif
#endif
  // ...
}


#if PRJCONF_AUDIO_SNDCARD_EN
__weak HAL_Status board_soundcard_init(void)
{
	/* Codec register */
#if PRJCONF_INTERNAL_SOUNDCARD_EN
	HAL_SndCard_CodecRegisterInternal();
#endif
#if PRJCONF_AC107_SOUNDCARD_EN
	HAL_SndCard_CodecRegisterAc107();     //  register  AC107  namely  ac107_codec_register()
#endif
#if PRJCONF_AC101_SOUNDCARD_EN
	HAL_SndCard_CodecRegisterAc101();
#endif
	//Add other codec register here

	/* Platform register */
#if PRJCONF_PLATFORM_I2S_EN
	HAL_SndCard_PlatformRegisterI2S();    //  register  I2S  namely  xradio_i2s_register();
#endif
	//Add other platform register here

	/* Snd Card register*/
	HAL_SndCard_Register();

	return HAL_OK;
}

__weak HAL_Status board_soundcard_deinit(void)
{
	/* Snd Card unregister*/
	HAL_SndCard_Unregister();

	/* Platform unregister */
#if PRJCONF_PLATFORM_I2S_EN
	HAL_SndCard_PlatformUnregisterI2S();
#endif
	//Add other platform unregister here

	/* Codec unregister */
#if PRJCONF_INTERNAL_SOUNDCARD_EN
	HAL_SndCard_CodecUnregisterInternal();
#endif
#if PRJCONF_AC107_SOUNDCARD_EN
	HAL_SndCard_CodecUnregisterAc107();
#endif
#if PRJCONF_AC101_SOUNDCARD_EN
	HAL_SndCard_CodecUnregisterAc101();
#endif
	//Add other codec unregister here

	return HAL_OK;
}
#endif

2. Sound card registration process

uint8_t HAL_SndCard_Register(void)
{
	// ......

	//  Find all by traversing all sound card numbers  snd_card_board_config
	for(i=0; i<=SND_CARD_MAX; i++,snd_card_board_cfg = NULL)
	{
		//  obtain  struct snd_card_board_config  Configuration information
		hal_status = HAL_BoardIoctl(HAL_BIR_GET_CFG, HAL_MKDEV(HAL_DEV_MAJOR_AUDIO_CODEC, i), (uint32_t)&snd_card_board_cfg);
		if(hal_status != HAL_OK || snd_card_board_cfg == NULL){
			continue;
		}

		//  Check whether the sound card number is legal
		if(snd_card_board_cfg->card_num > SND_CARD_MAX){
			HAL_SND_CARD_ERROR("Invalid snd card number-[%d], while the max card number is %d!\n",snd_card_board_cfg->card_num,SND_CARD_MAX);
			continue;
		}

		//  Traverse the sound card linked list ,  If the sound card hardware exists, it will not continue
		if(!list_empty(&hal_snd_card_list)){
			found = 0;
			list_for_each_entry(sound_card, &hal_snd_card_list, node){
				if(sound_card->card_num == snd_card_board_cfg->card_num){
					found = 1;
					break;
				}
			}
			if(found){
				HAL_SND_CARD_ERROR("The snd card number-[%d] has registered\n",snd_card_board_cfg->card_num);
				continue;
			}
		}

		//  Traverse  hal_snd_codec_list  Linked list search  snd_card_board_config  designated  codec_driver
		if(snd_card_board_cfg->codec_link == XRADIO_CODEC_NULL){
			codec_drv_ptr = NULL;
		} else {
			found = 0;
			if(!list_empty(&hal_snd_codec_list)){
				list_for_each_entry(codec_drv_ptr, &hal_snd_codec_list, node){
					if(snd_card_board_cfg->codec_link == codec_drv_ptr->codec_attr){
						found = 1;
						break;	//snd card match board config codec SUCCESS, break to continue register sound card
					}
				}
			}
			if(!found){
				HAL_SND_CARD_ERROR("snd card-[%d] match board config codec Fail!\n",snd_card_board_cfg->card_num);
				continue;
			}
		}

		//  Traverse  hal_snd_platform_list  Linked list search  snd_card_board_config  designated  platform_driver
		if(snd_card_board_cfg->platform_link == XRADIO_PLATFORM_NULL){
			platform_drv_ptr = NULL;
		} else {
			found = 0;
			if(!list_empty(&hal_snd_platform_list)){
				list_for_each_entry(platform_drv_ptr, &hal_snd_platform_list, node){
					if(snd_card_board_cfg->platform_link == platform_drv_ptr->platform_attr){
						found = 1;
						break;	//snd card match board config platform SUCCESS, break to continue register sound card
					}
				}
			}
			if(!found){
				HAL_SND_CARD_ERROR("snd card-[%d] match board config platform Fail!\n",snd_card_board_cfg->card_num);
				continue;
			}
		}

		//  If none is found, continue to the next  snd_card_board_config
		if(codec_drv_ptr == NULL && platform_drv_ptr == NULL){
			HAL_SND_CARD_ERROR("snd card-[%d] must link one codec or platform at least!\n",snd_card_board_cfg->card_num);
			continue;
		}

		//  If you find them all ,  Start creating a new sound card by applying for memory
		sound_card = (struct snd_card *)HAL_Malloc(sizeof(struct snd_card));
		if(!sound_card){
			HAL_SND_CARD_ERROR("Malloc snd card-[%d] struct snd_card buffer Fail!\n",snd_card_board_cfg->card_num);
			break;//continue;
		}
		HAL_Memset(sound_card, 0, sizeof(struct snd_card));

		//  relation  codec driver  and  platform driver
		sound_card->codec_drv = codec_drv_ptr;
		sound_card->platform_drv = platform_drv_ptr;

		/* Card lock init */
		if(sound_card->card_lock.handle == NULL){
			hal_status = HAL_MutexInit(&sound_card->card_lock);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] mutex init Fail\n", (uint8_t)sound_card->card_num);
				HAL_Free(sound_card);
				continue;
			}
		}

		//  Copy  snd_card_board_config  Configuration information
		sound_card->card_num = snd_card_board_cfg->card_num;
		sound_card->card_name = snd_card_board_cfg->card_name;
		sound_card->codec_sysclk_src = snd_card_board_cfg->codec_sysclk_src;
		sound_card->codec_pllclk_src = snd_card_board_cfg->codec_pllclk_src;
		sound_card->codec_pll_freq_in = snd_card_board_cfg->codec_pll_freq_in;
		sound_card->i2s_fmt = snd_card_board_cfg->i2s_fmt;
		sound_card->pa_switch_ctl = snd_card_board_cfg->pa_switch_ctl;

		//  If the power amplifier control pin is specified, set the status of the power amplifier control pin according to the configuration information
		HAL_BoardIoctl(HAL_BIR_PINMUX_INIT, HAL_MKDEV(HAL_DEV_MAJOR_AUDIO_CODEC, (uint8_t)sound_card->card_num), 0);
		if(sound_card->pa_switch_ctl){
			//PA switch init
			HAL_GPIO_WritePin(sound_card->pa_switch_ctl->pin_param->port,\
				sound_card->pa_switch_ctl->pin_param->pin, !sound_card->pa_switch_ctl->on_state);
		}

		//  call  codec  Of  init  Callback , That is to call  ac107_codec_drv.init = ac107_codec_init()
		if(sound_card->codec_drv && sound_card->codec_drv->init){
			hal_status = sound_card->codec_drv->init();
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] codec init Fail\n", (uint8_t)sound_card->card_num);
				HAL_Free(sound_card);
				continue;
			}
		}

		//  call  codec  Of  init  Callback , That is to call  xradio_i2s_drv.init = xradio_i2s_init()
		if(sound_card->platform_drv && sound_card->platform_drv->init){
			hal_status = sound_card->platform_drv->init();
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] platform-I2S init Fail\n", (uint8_t)sound_card->card_num);
				HAL_Free(sound_card);
				continue;
			}
		}

		// ......

		//  If  codec  and  platform  Of  init()  They all succeeded ,  Then the sound card is officially added to the sound card linked list
		list_add(&sound_card->node, &hal_snd_card_list);
		card_nums++;

		HAL_SND_CARD_DEBUG("/*** Register snd card[%d]->%s Success ***\\^_^\n\n",sound_card->card_num,sound_card->card_name);
	}

	return card_nums;
}

5、 ... and 、 It was recorded that audio_pcm_list In the list , by snd_pcm Class interface preparation

int snd_pcm_init(void)
{
	char *pcm_priv_temp;
	uint8_t *card_num, card_nums, i;
	struct pcm_priv* audio_pcm_priv;
	AUDIO_PCM_DEBUG("--->%s\n",__FUNCTION__);

	/* Get snd card nums */
	card_nums = HAL_SndCard_GetCardNums();
	if(!card_nums){
		AUDIO_PCM_ERROR("card nums is 0!\n");
		return -1;
	}

	/* Malloc buffer and init */
	pcm_priv_temp = (char  *)pcm_zalloc(sizeof(struct pcm_priv) * card_nums);
	card_num = (uint8_t *)pcm_zalloc(sizeof(uint8_t) * card_nums);

	if(!pcm_priv_temp || !card_num){
		AUDIO_PCM_ERROR("Malloc audio pcm buffer Fail!\n");
		pcm_free(pcm_priv_temp);
		pcm_free(card_num);
		return -1;
	}

	HAL_SndCard_GetAllCardNum(card_num);

	/* Init struct pcm_priv and list add */
	for(i=0; i<card_nums; i++){
		//Init struct pcm_priv
		audio_pcm_priv = (struct pcm_priv *)(pcm_priv_temp + sizeof(struct pcm_priv)*i);
		audio_pcm_priv->card_num = (Snd_Card_Num)card_num[i];
		pcm_lock_init(&audio_pcm_priv->play_lock);
		pcm_lock_init(&audio_pcm_priv->cap_lock);
		pcm_lock_init(&audio_pcm_priv->write_lock);

		//list add
		list_add(&audio_pcm_priv->node, &audio_pcm_list);
	}

	/* Free get card num buffer */
	pcm_free(card_num);

	return 0;
}

6、 ... and 、 Summarize workflow

according to AC107 Of  snd_card_board_config To configure （ac107_codec_snd_card ） The data structure of the sound card is as follows ：

Summarize the whole sound card workflow ：

The whole sound card registration is to prepare for the four key linked lists ： hal_snd_codec_list、hal_snd_platform_list、hal_snd_card_list、audio_pcm_list

hal_snd_codec_list： Save all successful registrations  codec_driver, by  HAL_SndCard_Register() To prepare for .

hal_snd_platform_list： Save all successful registrations platform_driver , by  HAL_SndCard_Register() To prepare for .

hal_snd_card_list： Save through snd_card_board_config Configuration information , Successfully paired  codec_driver、platform_driver And the sound card formed by the combination .

audio_pcm_list： Keep the sound card numbers of all sound cards , by snd_pcm_* Prepare for a series of interface functions （ It mainly establishes and maintains the buffer of the application layer ）

Application layer usage

One 、 Application example

All of the above , It's all through API The interface method prepares the business logic of the upper application , The following is the simplest recording program .

#include <stdio.h>
#include <string.h>
#include "audio/pcm/audio_pcm.h"
#include "common/framework/platform_init.h"

int main(void)
{
	int ret;
	void *data;
	unsigned int len;
	struct pcm_config config;

	//  Platform initialization
	platform_init();

	//  Configure audio parameters
	config.channels = 1;
	config.format = PCM_FORMAT_S16_LE;
	config.period_count = 2;
	config.period_size = 1024;
	config.rate = 16000;

	//  adopt  SND_CARD_1  Sound card signal open the specified sound card
	ret = snd_pcm_open(SND_CARD_1, PCM_IN, &config);
	if (ret) {
		printf("snd_pcm_open fail.\n");
		return ;
	}

	//  Request buffer
	len = config.channels * config.period_count * config.period_size;
	data = malloc(len);
	if (data == NULL) {
		snd_pcm_close(AUDIO_SND_CARD_DEFAULT, PCM_IN);
		return;
	}

	while (1)
	{
		//  Read data from the sound card
		ret = snd_pcm_read(AUDIO_SND_CARD_DEFAULT, data, len);
		if (ret != len) {
			printf("snd_pcm_read fail.\n");
			break;
		}
		//  Processing audio data
	}
	printf("record pcm over.\n");
	free(data);

	//  Turn off the sound card
	snd_pcm_close(AUDIO_SND_CARD_DEFAULT, PCM_IN);

	return;
}

Two 、 Open the workflow of sound card

int snd_pcm_open(Snd_Card_Num card_num, Audio_Stream_Dir stream_dir, struct pcm_config *pcm_cfg)
{
	uint32_t buf_size;
	struct pcm_priv *audio_pcm_priv;
	AUDIO_PCM_DEBUG("--->%s\n",__FUNCTION__);

	/* Get audio_pcm_priv */
	audio_pcm_priv = card_num_to_pcm_priv(card_num);
	if(audio_pcm_priv == NULL){
		AUDIO_PCM_ERROR("Invalid sound card num [%d]!\n",(uint8_t)card_num);
		return -1;
	}

	/* Init audio_pcm_priv */
	if (stream_dir == PCM_OUT) {
		//play lock
		if (pcm_lock(&audio_pcm_priv->play_lock) != OS_OK) {
			AUDIO_PCM_ERROR("Obtain play lock err...\n");
			return -1;
		}

		//  Request play buffer
		buf_size = pcm_frames_to_bytes(pcm_cfg, pcm_config_to_frames(pcm_cfg));
		audio_pcm_priv->play_priv.cache = pcm_zalloc(buf_size/2);
		if (audio_pcm_priv->play_priv.cache == NULL) {
			pcm_unlock(&audio_pcm_priv->play_lock);
			AUDIO_PCM_ERROR("obtain play cache failed...\n");
			return -1;
		}
		audio_pcm_priv->play_priv.length = 0;
		audio_pcm_priv->play_priv.half_buf_size = buf_size/2;
	} else {
		//cap lock
		if (pcm_lock(&audio_pcm_priv->cap_lock) != OS_OK) {
			AUDIO_PCM_ERROR("obtain cap lock err...\n");
			return -1;
		}

		//  Request recording buffer
		buf_size = pcm_frames_to_bytes(pcm_cfg, pcm_config_to_frames(pcm_cfg));
		audio_pcm_priv->cap_priv.cache = pcm_zalloc(buf_size/2);
		if (audio_pcm_priv->cap_priv.cache == NULL) {
			pcm_unlock(&audio_pcm_priv->cap_lock);
			AUDIO_PCM_ERROR("obtain cap cache failed...\n");
			return -1;
		}
		audio_pcm_priv->cap_priv.length = 0;
		audio_pcm_priv->cap_priv.half_buf_size = buf_size/2;
	}

	//  Open the sound card
	if (HAL_SndCard_Open(card_num, stream_dir, pcm_cfg) != HAL_OK) {
		AUDIO_PCM_ERROR("Sound card-[%d] open Fai!\n",card_num);
		if (stream_dir == PCM_OUT) {
			pcm_free(audio_pcm_priv->play_priv.cache);
			memset(&(audio_pcm_priv->play_priv), 0, sizeof(struct play_priv));
			pcm_unlock(&audio_pcm_priv->play_lock);
		} else {
			pcm_free(audio_pcm_priv->cap_priv.cache);
			memset(&(audio_pcm_priv->cap_priv), 0, sizeof(struct cap_priv));
			pcm_unlock(&audio_pcm_priv->cap_lock);
		}
		return -1;
	}

	return 0;
}

HAL_Status HAL_SndCard_Open(Snd_Card_Num card_num, Audio_Stream_Dir stream_dir, struct pcm_config *pcm_cfg)
{
	HAL_SND_CARD_DEBUG("--->%s\n",__FUNCTION__);

	uint32_t dma_buf_size;
	HAL_Status hal_status;

	//  From the sound card number  hal_snd_card_list  Find the corresponding sound card in the linked list
	struct snd_card *sound_card = card_num_to_snd_card(card_num);

	// ......

	HAL_MutexLock(&sound_card->card_lock, OS_WAIT_FOREVER);

	//  According to the preset parameters, the sound card associated with  codec  To configure （ The parameters are from the board level file  snd_card_board_config、 And applications  pcm_cfg ）
	if(sound_card->codec_drv && sound_card->codec_drv->dai_ops){

		//  Set the system clock
		if(sound_card->codec_drv->dai_ops->set_sysclk){
			hal_status = sound_card->codec_drv->dai_ops->set_sysclk(sound_card->codec_sysclk_src,\
				sound_card->codec_pllclk_src, sound_card->codec_pll_freq_in, pcm_cfg->rate);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] codec set sysclk Fail!\n",(uint8_t)card_num);
				goto codec_hw_free;
			}
		}

		//  Set up  I2S  Related parameters
		if(sound_card->codec_drv->dai_ops->set_fmt){
			hal_status = sound_card->codec_drv->dai_ops->set_fmt(sound_card->i2s_fmt);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] codec set fmt Fail!\n",(uint8_t)card_num);
				goto codec_hw_free;
			}
		}

		//  Configure hardware parameters
		if(sound_card->codec_drv->dai_ops->hw_params){
			hal_status = sound_card->codec_drv->dai_ops->hw_params(stream_dir, pcm_cfg);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] codec config hw params Fail!\n",(uint8_t)card_num);
				goto codec_hw_free;
			}
		}
	}

	//  If it's done  codec_ops->open  The callback calls , Give Way  codec  To prepare
	if(sound_card->codec_drv && sound_card->codec_drv->codec_ops){
		//codec ioctl
		//related Codec Ioctl place here

		//codec open
		if(sound_card->codec_drv->codec_ops->open){
			hal_status = sound_card->codec_drv->codec_ops->open(stream_dir);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] codec open Fail!\n",(uint8_t)card_num);
				goto codec_hw_free;
			}
		}
	}

	//  According to the preset parameters, the sound card associated with  I2S  To configure （ The parameters are from the board level file  snd_card_board_config、 And applications  pcm_cfg ）
	if(sound_card->platform_drv && sound_card->platform_drv->dai_ops){

		//  Set up  I2S  Related parameters
		if(sound_card->platform_drv->dai_ops->set_fmt){
			hal_status = sound_card->platform_drv->dai_ops->set_fmt(sound_card->i2s_fmt);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] platform set fmt Fail!\n",(uint8_t)card_num);
				goto platform_hw_free;
			}
		}

		//  Set up  I2S  The clock frequency division
		if(sound_card->platform_drv->dai_ops->set_clkdiv){
			hal_status = sound_card->platform_drv->dai_ops->set_clkdiv(pcm_cfg->rate);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] platform set clkdiv Fail!\n",(uint8_t)card_num);
				goto platform_hw_free;
			}
		}

		//  Set hardware parameters
		if(sound_card->platform_drv->dai_ops->hw_params){
			hal_status = sound_card->platform_drv->dai_ops->hw_params(stream_dir, pcm_cfg);
			if(hal_status != HAL_OK){
				HAL_SND_CARD_ERROR("snd card[%d] platform config hw params Fail!\n",(uint8_t)card_num);
				goto platform_hw_free;
			}
		}
	}

	//  If it's done  platform_ops->open  The callback calls , Give Way  I2S  To prepare
	if(sound_card->platform_drv && sound_card->platform_drv->platform_ops && sound_card->platform_drv->platform_ops->open){
		hal_status = sound_card->platform_drv->platform_ops->open(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] platform-I2S open Fail!\n",(uint8_t)card_num);
			goto platform_hw_free;
		}
	}

	HAL_MutexUnlock(&sound_card->card_lock);

	//  If it is audio output , Then control the output pin of the power amplifier , Let the amplifier work
	if(stream_dir == PCM_OUT){
		if(sound_card->pa_switch_ctl){
			if(sound_card->pa_switch_ctl->on_delay_before)	HAL_MSleep(sound_card->pa_switch_ctl->on_delay_before);
			HAL_GPIO_WritePin(sound_card->pa_switch_ctl->pin_param->port, sound_card->pa_switch_ctl->pin_param->pin, sound_card->pa_switch_ctl->on_state);
			if(sound_card->pa_switch_ctl->on_delay_after)	HAL_MSleep(sound_card->pa_switch_ctl->on_delay_after);
		}
	}

	return HAL_OK;


platform_hw_free:
	if(sound_card->platform_drv && sound_card->platform_drv->dai_ops && sound_card->platform_drv->dai_ops->hw_free){
		hal_status = sound_card->platform_drv->dai_ops->hw_free(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] platform hw free Fail!\n",(uint8_t)card_num);
		}
	}

//codec_close:
	if(sound_card->codec_drv && sound_card->codec_drv->codec_ops && sound_card->codec_drv->codec_ops->close){
		hal_status = sound_card->codec_drv->codec_ops->close(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] codec close Fail!\n",(uint8_t)card_num);
		}
	}

codec_hw_free:
	if(sound_card->codec_drv && sound_card->codec_drv->dai_ops && sound_card->codec_drv->dai_ops->hw_free){
		hal_status = sound_card->codec_drv->dai_ops->hw_free(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] codec hw free Fail!\n",(uint8_t)card_num);
		}
	}

	HAL_MutexUnlock(&sound_card->card_lock);
	return HAL_ERROR;
}

3、 ... and 、 Read audio data flow

int snd_pcm_read(Snd_Card_Num card_num, void *data, uint32_t count)
{
	// ......  Omit the buffer processing flow of the application layer

	//  Read data from sound card
	if(read_remain >= half_buf_size){
		hw_read = (read_remain / half_buf_size) * half_buf_size;
		ret = HAL_SndCard_PcmRead(card_num, data_ptr, hw_read);
		if(ret != hw_read){
			AUDIO_PCM_ERROR("PCM read error!\n");
			return ret ? count - read_remain + ret : count - read_remain;
		}
		data_ptr += hw_read;
		read_remain -= hw_read;
		if(!read_remain){
			return count;
		}
	}

	// ......  Omit the buffer processing flow of the application layer

	return count;
}

int HAL_SndCard_PcmRead(Snd_Card_Num card_num, uint8_t *buf, uint32_t size)
{
	struct snd_card *sound_card = card_num_to_snd_card(card_num);

	// ......

	//  If  platform_driver  The driver has implementation  platform_ops->pcm_read()  Give priority to  pcm_read()  Interface to read data
	if(sound_card->platform_drv && sound_card->platform_drv->platform_ops && sound_card->platform_drv->platform_ops->pcm_read){
		return sound_card->platform_drv->platform_ops->pcm_read(buf, size);
	} else if (sound_card->codec_drv && sound_card->codec_drv->codec_ops && sound_card->codec_drv->codec_ops->ioctl){
		//  Otherwise, from  codec_driver  Driven  codec_ops->ioctl  Interface to read data
		uint32_t cmd_param[2] = {(uint32_t)buf, size};
		return sound_card->codec_drv->codec_ops->ioctl(CODEC_IOCTL_PCM_READ, cmd_param, 2);
	}

	return 0;
}

Four 、 Close the sound card process

HAL_Status HAL_SndCard_Close(Snd_Card_Num card_num, Audio_Stream_Dir stream_dir)
{
	HAL_SND_CARD_DEBUG("--->%s\n",__FUNCTION__);

	HAL_Status hal_status;
	struct snd_card *sound_card = card_num_to_snd_card(card_num);

	if(!sound_card){
		HAL_SND_CARD_ERROR("Invalid sound card num [%d]!\n",(uint8_t)card_num);
		return HAL_INVALID;
	}

	//  Turn off the power amplifier first
	if(stream_dir == PCM_OUT){
		if(sound_card->pa_switch_ctl){
			HAL_GPIO_WritePin(sound_card->pa_switch_ctl->pin_param->port, sound_card->pa_switch_ctl->pin_param->pin, !sound_card->pa_switch_ctl->on_state);
		}
	}

	HAL_MutexLock(&sound_card->card_lock, OS_WAIT_FOREVER);

	//  close  I2S
	if(sound_card->platform_drv && sound_card->platform_drv->platform_ops && sound_card->platform_drv->platform_ops->close){
		hal_status = sound_card->platform_drv->platform_ops->close(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] platform close Fail!\n",(uint8_t)card_num);
		}
	}

	//  close  Codec
	if(sound_card->codec_drv && sound_card->codec_drv->codec_ops && sound_card->codec_drv->codec_ops->close){
		hal_status = sound_card->codec_drv->codec_ops->close(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] codec close Fail!\n",(uint8_t)card_num);
		}
	}

	//  Release  Codec  hardware configuration
	if(sound_card->codec_drv && sound_card->codec_drv->dai_ops && sound_card->codec_drv->dai_ops->hw_free){
		hal_status = sound_card->codec_drv->dai_ops->hw_free(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] codec hw free Fail!\n",(uint8_t)card_num);
		}
	}

	//  Release  I2S  hardware configuration
	if(sound_card->platform_drv && sound_card->platform_drv->dai_ops && sound_card->platform_drv->dai_ops->hw_free){
		hal_status = sound_card->platform_drv->dai_ops->hw_free(stream_dir);
		if(hal_status != HAL_OK){
			HAL_SND_CARD_ERROR("snd card[%d] platform hw free Fail!\n",(uint8_t)card_num);
		}
	}

	HAL_MutexUnlock(&sound_card->card_lock);

	return HAL_OK;
}
