#There is no auto-configuration class 需要手动读取
# 微信开放平台 appid
wx.open.app_id=你的appid
# 微信开放平台 appsecret
wx.open.app_secret=你的appsecret
# 微信开放平台 重定向url
wx.open.redirect_url=http://你的服务器名称/api/ucenter/wx/callback

2. utils Create a constant class under the package

@Component
//@PropertySource("classpath:application.properties") The variable name needs to match the configuration file
public class ConstantPropertiesUtil implements InitializingBean {

	@Value("${wx.open.app_id}")
	private String appId;

	@Value("${wx.open.app_secret}")
	private String appSecret;

	@Value("${wx.open.redirect_url}")
	private String redirectUrl;

	public static String WX_OPEN_APP_ID;
	public static String WX_OPEN_APP_SECRET;
	public static String WX_OPEN_REDIRECT_URL;

	@Override
	public void afterPropertiesSet() throws Exception {
		WX_OPEN_APP_ID = appId;
		WX_OPEN_APP_SECRET = appSecret;
		WX_OPEN_REDIRECT_URL = redirectUrl;
	}
}

3. 实现接口

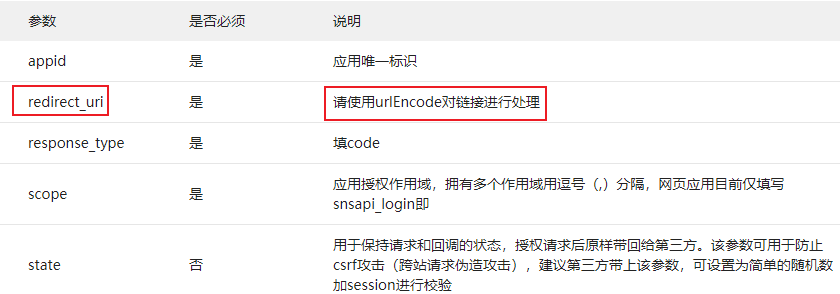

1. 接口分析

*参数：无

*返回值：map (获取二维码参数)

2. 实现 WeixinApiController

@Api(tags = "微信接口")
@Controller
@RequestMapping("/api/ucenter/wx")
public class WeixinApiController {

    //获取微信登录参数
    @GetMapping("getLoginParam")
    @ResponseBody
    public R genQrConnect(HttpSession session) throws UnsupportedEncodingException {
        Map<String, Object> map = new HashMap<>();
        //地址进行URLEncoder编码
        String redirectUri = URLEncoder.encode(ConstantPropertiesUtil.WX_OPEN_REDIRECT_URL, "UTF-8");

        map.put("appid", ConstantPropertiesUtil.WX_OPEN_APP_ID);
        map.put("redirectUri", redirectUri);
        map.put("scope", "snsapi_login");
        map.put("state", System.currentTimeMillis()+"");//System.currentTimeMillis()+""
        return R.ok().data(map);
    }
}

3. 修改端口,添加网关配置

#设置路由id
spring.cloud.gateway.routes[4].id=service-user
#设置路由的uri
spring.cloud.gateway.routes[4].uri=lb://service-user
#设置路由断言,代理servicerId为auth-service的/auth/路径
spring.cloud.gateway.routes[4].predicates= Path=/*/ucenter/**

2、前端页面实现

（1）方式一,拼写url进行重定向 (Redirect to a web page QR code)

（2）方式二,通过jsRealize QR code acquisition（选择,用户体验更好,The QR code is embedded in the page）

1. 创建API接口方法

创建 api/wx.js

import request from '@/utils/request'

const api_name = `/api/ucenter/wx`

export default {
  getLoginParam() {
    return request({
      url: `${api_name}/getLoginParam`,
      method: `get`
    })
  }
}

2. Confirm page elements

3. 改造JS

import wxApi from '@/api/wx'

        ...
        mounted() {
            // 注册全局登录事件对象
            window.loginEvent = new Vue();
            // 监听登录事件
            loginEvent.$on('loginDialogEvent', function () {
                document.getElementById("loginDialog").click();
            })
            // 触发事件,显示登录层：loginEvent.$emit('loginDialogEvent')
            //初始化微信js
            const script = document.createElement('script')
            script.type = 'text/javascript'
            script.src = 'https://res.wx.qq.com/connect/zh_CN/htmledition/js/wxLogin.js'
            document.body.appendChild(script)

            // 微信登录回调处理
            let self = this;
            window["loginCallback"] = (name, token, openid) => {
                self.loginCallback(name, token, openid);
            }
        },
        methods: {
            //WeChat login callback method
            loginCallback(name, token, openid) {
                //1.第一次登录,绑定手机号
                //2.不是第一次,设置登录状态
            },
            //切换微信登录
            weixinLogin() {
                this.dialogAtrr.showLoginType = 'weixin'
                wxApi.getLoginParam().then(response => {
                    let obj = new WxLogin({
                        self_redirect: true,
                        id: 'weixinLogin', // 需要显示的容器id
                        appid: response.data.appid, // 公众号appid wx*******
                        scope: response.data.scope, // 网页默认即可
                        redirect_uri: response.data.redirectUri, // 授权成功后回调的url
                        state: response.data.state, // 可设置为简单的随机数加session用来校验
                        style: 'black', // 提供"black"、"white"可选.二维码的样式
                        href: '' // 外部css文件url,需要https
                    });
                });
            },

三、WeChat scan login callback interface - 内网穿透 *

1、内网穿透
How to request an internal network address for an external network request
解决方案：
1. Solve intranet penetration in the company *
Find the operation and maintenance personnel to solve,Log in to the switch console,Add the mapping relationship between the internal and external networks
例如：192.168.140.100:12345 => 192.168.43.86:8160
2. 个人解决：修改系统配置文件host,添加域名和ip映射
优点：简单
缺点：只能使用80端口,(只能配置ipMapping Port mapping cannot be configured)
3. 个人解决：使用内网穿透工具
优点：可以配置ip映射,It can also be used with port mapping
缺点：花钱
4. 个人解决：Published on external hostsweb服务,Do the request redirect to the intranet
优势：可以配置ip映射,It can also be used with port mapping
缺点：Intranet interfaceurl,端口不能修改
5. 个人解决：Intranet penetration is provided by WeChat,principles and methods (4) 一致
所以,端口号8160 请求url不能变

1、后端接口开发

1. 接口分析

*参数：code 、state

*返回值：重定向地址

2. userService 添加依赖

    <dependencies>
        <!--httpclient-->
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
        </dependency>
    </dependencies>

3. 添加工具类

4. controller方法实现

    //扫码后,微信回调方法,授权临时票据code
    @GetMapping("callback")
    public String callback(String code, String state, HttpSession session) {
        //1.Get the WeChat callback verification codecode
        System.out.println("code = " + code);
        System.out.println("state = " + state);
        //2.访问微信接口,用code验证码,换取access_token、open_id
        //2.1拼写url
        //方式一
        String url = "ttps://api.weixin.qq.com/sns/oauth2/access_token?" +
                "appid=APPID&secret=SECRET&code=CODE&grant_type=authorization_code";

        //方式二
        StringBuffer baseAccessTokenUrl = new StringBuffer()
                .append("https://api.weixin.qq.com/sns/oauth2/access_token")
                .append("?appid=%s")
                .append("&secret=%s")
                .append("&code=%s")
                .append("&grant_type=authorization_code");
        String accessTokenUrl = String.format(baseAccessTokenUrl.toString(),
                ConstantPropertiesUtil.WX_OPEN_APP_ID,
                ConstantPropertiesUtil.WX_OPEN_APP_SECRET,
                code);

        //2.2Use the tool to send a request and get a response
        try {
            String accessTokenString = HttpClientUtils.get(accessTokenUrl);
            System.out.println("accessTokenString = " + accessTokenString);

            //2.3从json串中获取access_token、open_id
            JSONObject accessTokenJson = JSONObject.parseObject(accessTokenString);
            String accessToken = accessTokenJson.getString("access_token");
            String openid = accessTokenJson.getString("openid");

            //3.根据open_id查询用户信息
            QueryWrapper<UserInfo> wrapper = new QueryWrapper<>();
            wrapper.eq("openid",openid);
            UserInfo userInfo = userInfoService.getOne(wrapper); //openid是唯一的

            //4.用户信息为空,Go through the registration process
            if(userInfo==null){
                //5.根据access_token、open_id获取用户信息,完成注册流程
                //5.1拼写url
                String baseUserInfoUrl = "https://api.weixin.qq.com/sns/userinfo" +
                        "?access_token=%s" +
                        "&openid=%s";
                String userInfoUrl = String.format(baseUserInfoUrl, accessToken, openid);
                //5.2Send a request with the help of a tool,获取响应
                String resultInfo = HttpClientUtils.get(userInfoUrl);
                System.out.println("resultInfo:"+resultInfo);
                //5.3Convert backjson串,获取返回值
                JSONObject resultInfoJson = JSONObject.parseObject(resultInfo);
                //用户昵称
                String nickname = resultInfoJson.getString("nickname");
                //用户头像
                String headimgurl = resultInfoJson.getString("headimgurl");
                //5.4userInfo中存入信息,完成注册操作
                userInfo = new UserInfo();
                userInfo.setOpenid(openid);
                userInfo.setNickName(nickname);
                userInfo.setStatus(1);
                userInfoService.save(userInfo);
            }

            //6.Verify that the user is not locked out
            if(userInfo.getStatus()==0){
                throw new YyghException(20001,"用户已被锁定");
            }

            //7.Verify whether the user is bound with a mobile phone number
            //If the mobile phone number is boundopenid=""
            //如果没有绑定手机号openid=WeChat unique number
            Map<String,Object> map = new HashMap<>();
            if(userInfo.getPhone()==null){
                map.put("openid",openid);
            }else {
                map.put("openid","");
            }

            //8.补全用户信息,进行登录
            String name = userInfo.getName();
            if(StringUtils.isEmpty(name)) {
                name = userInfo.getNickName();
            }
            if(StringUtils.isEmpty(name)) {
                name = userInfo.getPhone();
            }
            String token = JwtHelper.createToken(userInfo.getId(), name);
            map.put("token", token);
            map.put("name", name);

            //9.Redirects back to the relevant page
            return "redirect:http://localhost:3000/weixin/callback?token="
                    +map.get("token")+ "&openid="+map.get("openid")
                    +"&name="+URLEncoder.encode((String) map.get("name"),"utf-8");
        } catch (Exception e) {
            e.printStackTrace();
            throw new YyghException(20001,"Wechat scan code login failed");
        }
    }

5. Modify the mobile phone number verification code login interface,Implement binding mobile phone number

    //会员登录
    @Override
    public Map<String, Object> login(LoginVo loginVo) {
        //1.数据校验
        String phone = loginVo.getPhone();
        String code = loginVo.getCode();
        String openid = loginVo.getOpenid();

        if(StringUtils.isEmpty(phone)||StringUtils.isEmpty(code)){
            throw new YyghException(20001,"注册信息有误");
        }
        //2.校验验证码
        //2.1 根据手机号从redis取出验证码
        String rediscode = redisTemplate.opsForValue().get(phone);
        //2.2 对比验证码,注意字符串空指针
        if(!code.equals(rediscode)){
            throw new YyghException(20001,"验证码有误");
        }

        //2.3判断openid,Sign in with the mobile phone number verification code,It is not empty to bind the mobile phone number
        Map<String, Object> map = new HashMap<>();
        UserInfo userInfo;
        if(StringUtils.isEmpty(openid)){
            //3.根据手机号查询用户信息
            QueryWrapper<UserInfo> wrapper = new QueryWrapper<>();
            wrapper.eq("phone",phone);
            userInfo = baseMapper.selectOne(wrapper);

            //4.用户信息为空,走注册功能
            if(userInfo==null){
                userInfo = new UserInfo();
                userInfo.setPhone(phone);
                userInfo.setStatus(1); //0锁定 1正常
                baseMapper.insert(userInfo);
            }

        }else {
            //8.根据openid查询用户信息
            QueryWrapper<UserInfo> wrapper = new QueryWrapper<>();
            wrapper.eq("openid",openid);
            userInfo = baseMapper.selectOne(wrapper);
            if(userInfo==null){
                throw new YyghException(20001,"User registration information is incorrect");
            }
            //9.Update user phone number information
            userInfo.setPhone(phone);
            baseMapper.updateById(userInfo);

        }

        //5.判断用户是否被锁定
        if(userInfo.getStatus()==0){
            throw new YyghException(20001,"用户已被锁定");
        }
        //6.补全用户信息
        //返回页面显示名称

        String name = userInfo.getName();
        if(StringUtils.isEmpty(name)) {
            name = userInfo.getNickName();
        }
        if(StringUtils.isEmpty(name)) {
            name = userInfo.getPhone();
        }
        //7.用户登录
        String token = JwtHelper.createToken(userInfo.getId(), userInfo.getName());

        map.put("token", token);
        map.put("name", name);

        return map;
    }

2、Integrate WeChat scan login front-end

1. 需求确认

说明：我们只期望返回一个空页面,然后跟登录层通信就可以了,其实就是一个过渡页面,所以我们要给这个过渡页面定义一个空模板

2. 创建空白布局

3. 创建空白页面

<template>
    <!-- header -->
    <div>
    </div>
    <!-- footer -->
</template>
<script>
    export default {
        layout: "empty",
        data() {
            return {
            }
        },
        //页面加载后执行
        mounted() {
            //1.获取参数 queryObtained by question mark
            let token = this.$route.query.token
            let openid = this.$route.query.openid
            let name = this.$route.query.name
            //2.调用父vue方法
            window.parent['loginCallback'](name, token, openid)
        },
    }
</script>

4. 在myheader.vue添加方法 The method is implemented after WeChat scans the code

        methods: {
            //WeChat login callback method
            loginCallback(name, token, openid) {
                //1.第一次登录,绑定手机号
                if (openid != "") {
                    this.userInfo.openid = openid
                    //this.dialogAtrr.showLoginType = 'phone'
                    this.showLogin() //showLogin The popup object is initialized
                }
                //2.不是第一次,设置登录状态
                this.setCookies(name, token)

            },
        ....
