First step ： Select the data first , Then click Insert , The format of pie chart will be generated automatically , The next thing to do is adjust some details

The second step ： Click the plus sign in the upper right corner of the pie chart , Optimize the details of the pie chart , Can display data , And the location and mode of display

② Composite pie chart

The previous operations are basically the same （ Select the data first , Then find the corresponding style in the insert ）, The second step is the same , The only difference is the adjustment of the data shown in the composite diagram , For example, display the data of Hangzhou in the figure in the second part

Select the pie chart first , Then right click , Select format data series , Then adjust the basis of segmentation （ According to the position and percentage ）

③ Doughnut

The previous steps are the same , The only thing to note is to adjust the size of the ring ; The next operation is consistent with that of the composite diagram , Then adjust the size of the ring

Two 、 Broken line diagram

1、 Exhibition

2、 step

① Broken line diagram

The first steps are the same , Is to select data ; Amway has a trick of selecting data , First select a column of data , Then press ctrl Don't let go , Other data can be selected at the same time

② Stacked line charts

③ Percentage stacked line chart

alike , The previous steps are the same , Just a lot of repetition , What I want to mention here is to change the two lines to a different position ; Click on the graphic , Then click Select data , Then you can move up and down to change the position between the two

3、 ... and 、 Bar chart

1、 Exhibition

2、 step

① Cluster bar chart

② Stacked bars

③ Percentage stacked bar chart

3、 ... and 、 A symmetrical chart compares two companies

1、 Exhibition

2、 step

At first, it is still the selected data , Then generate a clustered bar graph

Then set the abscissa axis to about 0 Symmetric interval （ Double click the abscissa ）

Moreover, double click the red data bar , Select it as the secondary axis

And then replace the abscissa axis above with the abscissa axis about 0 Symmetric interval , Select the inverse scale value

Finally, delete the abscissa axis above , Choose again （7 The branch line ）, Right click to select the coordinate axis format , Set the position of the label , will （7 The branch line ） Moved to the side

Four 、 Scatter plot

1、 Exhibition

2、 step

First select the data of age and credit score （ use ctrl Select two columns of data ）, Then click Insert to select the scatter chart

Then adjust the interval of the horizontal and vertical axis , Then click the plus sign in the upper right corner , Format data labels , Select the value in the cell , Show the name as well

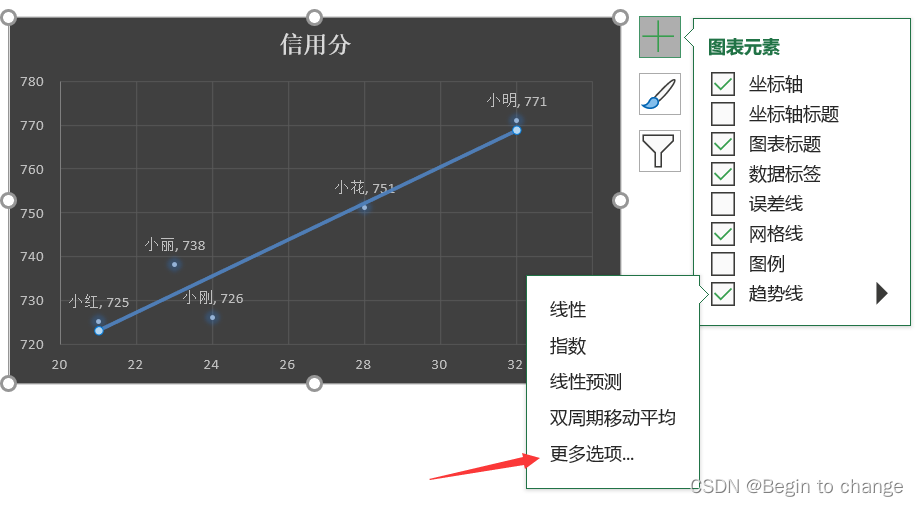

Click the plus sign in the upper right corner , Choose more options in the trend line , Then check show formula and R The square of

5、 ... and 、 Bubble chart

1、 Exhibition

2、 step

Start by choosing age and credit score to create a scatter chart , Then adjust the interval of horizontal and vertical coordinates

Then click the plus sign in the upper right corner , Click on the data tab for more options ; Cancel display y Value , Check show bubble size , Also select the value in the cell （ Select the user ）（ At this time, the bubble size is 1 It is not the data of credit history ）

You need to select the picture , Right click , Select select data , Then click Edit , Adjust the bubble size sequence to credit history , At this time, the bubble size is divided according to the history of credit

6、 ... and 、 Radar map

1、 Exhibition

2、 step

Select the data first , Then click Insert , The radar map at this time is not on the surface , In the recommended Icon

Select the radar value axis , Right click to select Format coordinate axis , Then set its label to none , And then it disappeared

Then select more options for the axis of the plus sign in the upper right corner , Finally, set the maximum and minimum values of its coordinate axis

7、 ... and 、 Combination table

1、 Exhibition

2、 step

8、 ... and 、 Various comparisons

1、 Exhibition

2、 step

Adjust the vertical axis interval ; Display the data ; Delete the repeated numbers on the passing line and the excellent line ; Select all scatter points , Click the plus sign on the upper right , The range of the selected cell is name

Nine 、 Waterfall Plot

1、 Exhibition

2、 step

3、 Data interpretation

At this time, the hidden scale is the sum of the previous scales （ from 0 Start , from 0 end ）; Formula for ：=SUM($B$2:B3)

Nine 、 Funnel diagram

1、 Exhibition

2、 step

3、 Data interpretation

① Conversion rate of the whole process

Is the ratio of the current data to the initial data , Formula for ：=B3/$B$2

② Hide scale

The function of the hidden proportion is the empty parts on the left and right sides of the funnel , That is to say, its value is 1- Current proportion , Then divide by 2; Formula for ：=(1-C3)/2

③ Conversion rate of each stage

Different from the whole process conversion rate, the conversion rate of each stage is compared with the previous data rather than the initial data , Formula for ：=B3/B2
