SpingBoot+Quartrz生产环境的应用支持分布式、自定义corn、反射执行多任务
2022-06-11 10:54:00 【一恍过去】
目录
《SpingBoot+Quartrz单机版实现动态定时任务》
《SpingBoot+Quartrz集群版实现动态定时任务》
1、前言
1、动态任务的实现主要通过SpingBoot+Quartrz进行实现，并且配合自定义封装类通过反射机制实现完整的动态任务流程，支持、分布式、自定义corn；
2、通过数据库记录具体的任务信息；
3、以下说明为核心代码的编写，具体完整代码可以参考gitee：《quartrz-demo》;
2、数据库设计
数据库有两张自定义表与是一张Quartrz表构成，如下：
自定义数据表(2张)：
sys_job：自定义任务信息sys_job_log：自定义任务日志表
Quartrz集群必需表(11张)：
QRTZ_JOB_DETAILS：任务详细信息表QRTZ_TRIGGERS：触发器详细信息表QRTZ_SIMPLE_TRIGGERS：简单触发器的信息表QRTZ_CRON_TRIGGERS：Cron类型的触发器表QRTZ_BLOB_TRIGGERS：Blob类型的触发器表QRTZ_CALENDARS：日历信息表QRTZ_PAUSED_TRIGGER_GRPS：暂停的触发器表QRTZ_FIRED_TRIGGERS：已触发的触发器表QRTZ_SCHEDULER_STATE：调度器状态表QRTZ_LOCKS：存储的悲观锁信息表QRTZ_SIMPROP_TRIGGERS：同步机制的行锁表
3、业务代码实现
只进行核心业务类的编写，包括JobMapper.xml、JobMapper、JobService、JobController；
3.1 JobMapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.quartz.mapper.JobMapper">
<resultMap type="com.example.quartz.model.entity.JobEntity" id="BaseResultMap">
<id property="id" column="id" jdbcType="VARCHAR"/>
<result property="name" column="name" jdbcType="VARCHAR"/>
<result property="cycle" column="cycle" jdbcType="VARCHAR"/>
<result property="invokeTarget" column="invoke_target" jdbcType="VARCHAR"/>
<result property="cronExpression" column="cron_expression" jdbcType="VARCHAR"/>
<result property="policy" column="policy" jdbcType="INTEGER"/>
<result property="situation" column="situation" jdbcType="INTEGER"/>
<result property="version" column="version" jdbcType="INTEGER"/>
<result property="lastRunTime" column="last_run_time" jdbcType="TIMESTAMP"/>
<result property="nextRunTime" column="next_run_time" jdbcType="TIMESTAMP"/>
<result property="status" column="status" jdbcType="INTEGER"/>
<result property="delFlag" column="del_flag" jdbcType="INTEGER"/>
<result property="remark" column="remark" jdbcType="VARCHAR"/>
<result property="createBy" column="create_by" jdbcType="VARCHAR"/>
<result property="createTime" column="create_time" jdbcType="TIMESTAMP"/>
<result property="updateBy" column="update_by" jdbcType="VARCHAR"/>
<result property="updateTime" column="update_time" jdbcType="TIMESTAMP"/>
</resultMap>
<sql id="Base_Column_List">
id,name,cycle,invoke_target,cron_expression,policy,situation,version,last_run_time,next_run_time,status,del_flag,create_by,create_time,update_by,update_time,remark
</sql>
<select id="jobList" parameterType="java.lang.Integer" resultMap="BaseResultMap">
select
<include refid="Base_Column_List"/>
from sys_job
<where>
`del_flag` = 0
<if test="status != null">
and status = #{status}
</if>
</where>
</select>
<select id="selectById" parameterType="string" resultMap="BaseResultMap">
select
<include refid="Base_Column_List"/>
from sys_job where id =#{id}
</select>
<insert id="insert" parameterType="com.example.quartz.model.entity.JobEntity">
insert into sys_job(id, name, cycle, invoke_target, cron_expression, situation, version, policy, last_run_time,
next_run_time, status, del_flag,
create_by, create_time, update_by, update_time, remark)
values (#{id}, #{name}, #{cycle}, #{invokeTarget}, #{cronExpression}, #{situation}, #{version}, #{policy},
#{lastRunTime}, #{nextRunTime}, #{status}, #{delFlag},
#{createBy}, #{createTime}, #{updateBy}, #{updateTime}, #{remark})
</insert>
<update id="updateVersion">
update sys_job
<set>
version = #{version} + 1,
<if test="job.lastRunTime != null">
last_run_time = #{job.lastRunTime},
</if>
<if test="job.nextRunTime != null">
next_run_time = #{job.nextRunTime},
</if>
<if test="job.situation != null">
situation = #{job.situation},
</if>
</set>
where id = #{job.id} and version = #{version}
</update>
<update id="update" parameterType="com.example.quartz.model.entity.JobEntity">
update sys_job
<set>
<if test="name != null">
name = #{name},
</if>
<if test="situation != null">
situation = #{situation},
</if>
<if test="status != null">
status = #{status},
</if>
<if test="invokeTarget != null">
invoke_target = #{invokeTarget},
</if>
<if test="cronExpression != null">
cron_expression = #{cronExpression},
</if>
<if test="situation != null">
situation = #{situation},
</if>
<if test="cycle != null">
cycle = #{cycle},
</if>
<if test="policy != null">
policy = #{policy},
</if>
<if test="version != null">
version = #{version} + 1,
</if>
<if test="lastRunTime != null">
last_run_time = #{lastRunTime},
</if>
<if test="nextRunTime != null">
next_run_time = #{nextRunTime},
</if>
</set>
where id = #{id,jdbcType=VARCHAR}
</update>
<delete id="delete" parameterType="string">
delete
from sys_job
where id = #{id}
</delete>
<insert id="insertTaskLog" parameterType="com.example.quartz.model.entity.JobLog">
insert into sys_job_log
value (#{id}, #{taskId}, #{time}, #{status}, #{exceptionInfo}, #{createTime})
</insert>
<update id="updateSituationStatus">
update sys_job
set situation = #{situation}
where id IN
<foreach collection="ids" item="id" separator="," open="(" close=")">
#{id}
</foreach>
</update>
</mapper>
3.2 JobMapper
@Mapper
public interface JobMapper {
/** * 任务列表 * * @return */
List<JobEntity> jobList(@Param("status") Integer status);
/** * 根据id查询 * * @param id * @return */
JobEntity selectById(String id);
/** * 新增 * * @param job * @return */
int insert(JobEntity job);
/** * 更新 * * @param job * @return */
int update(JobEntity job);
/** * 更新版本号 * * @param job * @param version * @return */
int updateVersion(@Param("job") JobEntity job, @Param("version") Integer version);
/** * 删除 * * @param id * @return */
int delete(String id);
/** * 插入任务日志 * * @param log */
void insertTaskLog(JobLog log);
/** * 更新运行状态 * * @param ids * @param situation */
void updateSituationStatus(@Param("ids") List<String> ids, @Param("situation") Integer situation);
}
3.3 JobService
@Service
@Slf4j
public class JobServiceImpl implements JobService {
@Resource
private JobMapper jobMapper;
@Resource
private JobManager jobManager;
/*** *任务列表查询 * @return o */
@Override
public Object jobList() {
return jobMapper.jobList(null);
}
/** * 新增列表 * * @param param 新增参数 */
@Override
public void addJob(JobParam param) {
// 解析表达式，此表达式由后端根据规则进行解析，可以直接由前端进行传递
String cron = CronUtils.dateConvertToCron(param);
//查询执行周期
Date nextTime = CronUtils.nextCurrentTime(cron);
//生成实体
JobEntity job = new JobEntity();
BeanUtils.copyProperties(param, job);
job.setId(UUIDUtils.getUuId());
job.setDelFlag(0);
job.setCronExpression(cron);
job.setNextRunTime(nextTime);
// 执行策略(1手动-暂停状态(2)，2-自动-执行中状态(1))
Integer situation = param.getPolicy().equals(JobConstant.MANUAL) ? JobConstant.PAUSE : JobConstant.EXECUTE;
job.setSituation(situation);
//设置版本好为0
job.setVersion(0);
job.setCreateBy("");
job.setCreateTime(new Date());
job.setUpdateBy("");
job.setUpdateTime(new Date());
// 执行任务
String runType = param.getPolicy().equals(JobConstant.MANUAL) ? JobConstant.USER_RUN : JobConstant.SYSTEM_RUN;
jobManager.startJob(job, runType);
//插入数据库
jobMapper.insert(job);
}
/** * 修改任务 * * @param param 修改参数 */
@Override
public void updateJob(JobParam param) {
JobEntity job = jobMapper.selectById(param.getId());
if (job == null) {
throw new RuntimeException("更新失败,任务不存在");
}
//解析表达式
String cron = CronUtils.dateConvertToCron(param);
//查询执行周期
Date nextTime = CronUtils.nextCurrentTime(cron);
//生成实体
BeanUtils.copyProperties(param, job);
job.setCronExpression(cron);
job.setNextRunTime(nextTime);
// 执行策略(1手动-暂停状态(2)，2-自动-执行中状态(1))
int situation = param.getPolicy().equals(JobConstant.MANUAL) ? JobConstant.PAUSE : JobConstant.EXECUTE;
job.setSituation(situation);
job.setUpdateBy("");
job.setUpdateTime(new Date());
// 执行策略(1手动，2-自动)：根据手动还是自动决定如何处理 执行任务
if (job.getPolicy().equals(JobConstant.MANUAL)) {
// 手动模式则从quartz中删除
log.info("======== 手动模式,删除执行中任务 ========");
jobManager.deleteJob(job.getId());
return;
}
// 更新任务
jobManager.updateJob(job);
// 更新数据库
jobMapper.update(job);
}
/** * 执行任务 * * @param id 任务id */
@Override
public void runOnceJob(String id) {
JobEntity job = jobMapper.selectById(id);
if (job == null) {
throw new RuntimeException("执行失败,任务不存在");
}
// 执行
jobManager.runOnceJob(id);
}
/** * 暂停任务 * * @param id 任务id */
@Override
public void pauseJob(String id) {
JobEntity job = jobMapper.selectById(id);
if (job == null) {
throw new RuntimeException("暂停任务失败,任务不存在");
}
job.setSituation(JobConstant.PAUSE);
// 暂停
jobManager.pauseJob(id);
// 更新数据库
jobMapper.update(job);
}
/** * 恢复任务 * * @param id 任务id */
@Override
public void resumeJob(String id) {
// 更新数据库
JobEntity job = jobMapper.selectById(id);
if (job == null) {
throw new RuntimeException("暂停任务失败,任务不存在");
}
job.setStatus(JobConstant.ENABLE);
job.setSituation(JobConstant.EXECUTE);
// 启动任务
jobManager.resumeJob(job);
// 更新数据库
jobMapper.update(job);
}
/** * 删除任务 * * @param id 任务id */
@Override
public void deleteJob(String id) {
JobEntity job = jobMapper.selectById(id);
if (job == null) {
throw new RuntimeException("删除任务失败,任务不存在");
}
// 删除执行的任务
jobManager.deleteJob(id);
//数据库删除
jobMapper.delete(id);
}
/** * 禁用任务 * * @param id 任务id */
@Override
public void forbidJob(String id) {
JobEntity job = jobMapper.selectById(id);
if (job == null) {
throw new RuntimeException("禁用失败,任务不存在");
}
// 删除执行的任务
jobManager.deleteJob(id);
//禁用
job.setStatus(JobConstant.DISABLE);
job.setSituation(JobConstant.PAUSE);
jobMapper.update(job);
}
/** * 查询详情 * * @param id 任务id */
@Override
public JobVo getJobById(String id) {
JobEntity job = jobMapper.selectById(id);
if (job == null) {
throw new RuntimeException("任务不存在！");
}
JobVo jobVo = new JobVo();
BeanUtils.copyProperties(job, jobVo);
List<String> nextExecution = (List<String>) CronUtils.getNextExecution(job.getCronExpression(), 8, true);
jobVo.setNext(nextExecution);
return jobVo;
}
/** * 任务日志 */
@Override
@Async
public void insertTaskLog(JobLog log) {
jobMapper.insertTaskLog(log);
}
}
3.4 JobController
@Api(tags = "任务管理")
@RestController
@RequestMapping("/task")
@Slf4j
public class JobController {
@Resource
private JobService jobService;
/** * 查询任务列表 * * @return */
@GetMapping("/list")
@ApiOperation(value = "任务列表", notes = "任务列表", response = JobVo.class, responseContainer = "List")
public Object jobList() {
return jobService.jobList();
}
@ApiOperation(value = "新增任务", notes = "新增任务")
@ApiOperationSupport(order = 5)
@PostMapping("/insert")
public String addJob(@RequestBody JobParam job) {
jobService.addJob(job);
return "操作成功";
}
@ApiOperation(value = "更新任务", notes = "更新任务")
@ApiOperationSupport(order = 10)
@PutMapping("/update")
public String update(@RequestBody JobParam job) {
jobService.updateJob(job);
return "操作成功";
}
@ApiOperation(value = "删除任务", notes = "删除任务")
@ApiOperationSupport(order = 10)
@DeleteMapping("/delete/{id}")
public String delete(@PathVariable String id) {
jobService.deleteJob(id);
return "操作成功";
}
@ApiOperation(value = "禁用任务", notes = "禁用任务")
@ApiOperationSupport(order = 10)
@DeleteMapping("/forbid/{id}")
public String forbidJob(@PathVariable String id) {
jobService.forbidJob(id);
return "操作成功";
}
@ApiOperation(value = "暂停任务", notes = "暂停任务")
@ApiOperationSupport(order = 10)
@PostMapping("/pause/{id}")
public String pause(@PathVariable String id) {
jobService.pauseJob(id);
return "操作成功";
}
@ApiOperation(value = "恢复任务", notes = "恢复任务")
@ApiOperationSupport(order = 10)
@PostMapping("/resume/{id}")
public String resume(@PathVariable String id) {
jobService.resumeJob(id);
return "操作成功";
}
@ApiOperation(value = "执行一次任务", notes = "执行一次任务")
@ApiOperationSupport(order = 20)
@PostMapping("/once/{id}")
public String runOnceJob(@PathVariable String id) {
jobService.runOnceJob(id);
return "操作成功";
}
/** * 查询详情 * * @param id * @return */
@GetMapping("info/{id}")
@ApiOperation(value = "查询详情", notes = "查询详情")
@ApiImplicitParam(name = "id", value = "任务id", paramType = "path", required = true, dataType = "String")
public Object getJobById(@PathVariable("id") String id) {
// 查询数据库
return jobService.getJobById(id);
}
}
4、任务核心代码
4.1 SysServiceJob
@Service
@Slf4j
public class SysServiceJob {
/** * 参数由任务中的 invokeTarget 解析而来，参数个数以及类型需要与invokeTarget中的一致 * * @param jobId * @param jobName * @param str * @param l * @param d * @param b */
public void test(String jobId, String jobName, String str, Long l, Double d, Boolean b) {
log.info("ID：{}，Name：{}", jobId, jobName);
// 打印参数
log.info("参数：str={},l={},d={},b={}", str, l, d, b);
}
}
4.2 BaseQuartzJobBean
// 持久化
@PersistJobDataAfterExecution
// 禁止并发执行
@DisallowConcurrentExecution
@Component
@Slf4j
public class BaseQuartzJobBean extends QuartzJobBean {
@Resource
private JobManager jobManager = MyApplicationContext.getBean(JobManager.class);
@Resource
private JobMapper jobMapper = MyApplicationContext.getBean(JobMapper.class);
/** * 是否进行校验时间差，第一次执行任务时，不校验时间差 */
private boolean checkTime = false;
@Override
protected void executeInternal(JobExecutionContext jobExecutionContext) {
JobDetail jobDetail = jobExecutionContext.getJobDetail();
String jobId = jobDetail.getKey().getName();
log.info("执行任务，任务ID：" + jobId);
if (true) {
return;
}
//获取当前执行时间戳
long currentTime = System.currentTimeMillis();
// 获取参数
JobDataMap jobDataMap = jobDetail.getJobDataMap();
Map<String, Object> paramMap = (Map<String, Object>) jobDataMap.get("paramMap");
String cron = paramMap.get("cron").toString();
Date nextCurrentTime = CronUtils.nextCurrentTime(cron);
log.info("任务：{}，当前：{}，下次：{}", jobId, new Date(), nextCurrentTime);
// 时间差
long diffTime = Math.abs(currentTime - nextCurrentTime.getTime());
//执行时，允许200ms误差，为了防止服务器时间钟摆出现误差
if (diffTime > 200 && checkTime) {
String msg = "任务执行异常，时间节点错误！";
//开发中出现了错误情况，可以采用发生邮箱提醒给开发者
log.error(msg);
// 记录日志
JobLogRecord.recordTaskLog(jobId, currentTime, msg);
return;
}
JobEntity job = jobMapper.selectById(jobId);
try {
// 模拟耗时
TimeUnit.SECONDS.sleep(1);
// 通过反射执行方法
String invokeTarget = paramMap.get("beanName").toString();
log.info("beanName：" + invokeTarget);
String methodStr = paramMap.get("methodName").toString();
log.info("methodName：" + methodStr);
// 执行具体类的方法
List<Object[]> methodParams = (List<Object[]>) paramMap.get("methodParams");
Object beanName = MyApplicationContext.getBean(invokeTarget);
Method method = beanName.getClass().getMethod(methodStr, QuartzUtils.getMethodParamsType(methodParams));
// 执行任务
method.invoke(beanName, QuartzUtils.getMethodParamsValue(methodParams));
// 记录日志
JobLogRecord.recordTaskLog(jobId, currentTime, null);
} catch (Exception e) {
String message = "没有找到可执行方法：" + e.getMessage();
log.error(message);
// 需要关闭任务
jobManager.deleteJob(jobId);
job.setSituation(JobConstant.PAUSE);
// 记录日志
JobLogRecord.recordTaskLog(jobId, currentTime, message);
} finally {
// 当任务执行完成后，后续开启时间校验
checkTime = true;
// 更新任务
job.setId(jobId);
job.setLastRunTime(new Date());
job.setNextRunTime(nextCurrentTime);
jobMapper.updateVersion(job, job.getVersion());
}
}
}
4.3 JobManager
@Component
@Slf4j
public class JobManager {
@Resource
private Scheduler scheduler;
@Resource
private JobMapper jobMapper;
/** * 初始化任务 */
public void initTask() throws SchedulerException {
// 读取自动执行任务列表状态为：正常(启用)
List<JobEntity> jobs = jobMapper.jobList(0);
// 过滤状态为执行中的任务
List<JobEntity> startList = jobs.stream().filter(t -> t.getPolicy().equals(JobConstant.AUTO) || t.getSituation().equals(JobConstant.EXECUTE)).collect(Collectors.toList());
List<String> startIdList = startList.stream().map(JobEntity::getId).collect(Collectors.toList());
// 获取quartz中的任务,并且对比,如果存在于quartz中则删除(避免自启)
GroupMatcher<JobKey> matcher = GroupMatcher.anyJobGroup();
Set<JobKey> jobKeys = scheduler.getJobKeys(matcher);
List<String> existsIdList = new ArrayList<>();
for (JobKey jobKey : jobKeys) {
String id = jobKey.getName();
if (!startIdList.contains(id)) {
deleteJob(id);
} else {
existsIdList.add(id);
}
}
// 执行任务
for (JobEntity entity : startList) {
// 比对cron是否一致,如果不一致则删除，如果一致则不做处理
TriggerKey triggerKey = TriggerKey.triggerKey(entity.getId());
if (existsIdList.contains(triggerKey.getName())) {
CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);
String cronExpression = trigger.getCronExpression();
String entityCron = entity.getCronExpression();
if (!cronExpression.equals(entityCron)) {
deleteJob(entity.getId());
// 删除后再次执行
startJob(entity, JobConstant.SYSTEM_RUN);
}
} else {
startJob(entity, JobConstant.SYSTEM_RUN);
}
}
// 开启所有任务
scheduler.resumeAll();
scheduler.start();
}
public void destroyTask() throws SchedulerException {
log.info("######## 结束任务 #########");
// 查询运行中的任务，进行停止操作
GroupMatcher<JobKey> matcher = GroupMatcher.anyJobGroup();
Set<JobKey> jobKeys = scheduler.getJobKeys(matcher);
List<String> ids = new ArrayList<>();
for (JobKey jobKey : jobKeys) {
String id = jobKey.getName();
// 暂停任务
pauseJob(id);
ids.add(id);
}
// 更新运行状态为暂停
if (ids.size() > 0) {
jobMapper.updateSituationStatus(ids, JobConstant.PAUSE);
}
}
/** * 开启一个定时任务 * * @param jobEntity 任务实体 * @throws Exception */
public void startJob(JobEntity jobEntity, String runType) {
try {
Integer status = jobEntity.getStatus();
Integer policy = jobEntity.getPolicy();
// 任务暂停(禁用)状态则不执行后续操作
if (status.equals(JobConstant.DISABLE)) {
throw new RuntimeException("禁用状态无法执行");
}
// 如果人不是自启、并且不是系统自动触发则不会被执行
if (!policy.equals(JobConstant.AUTO) && !runType.equals(JobConstant.SYSTEM_RUN)) {
return;
}
String jobId = jobEntity.getId();
// 判断是否存在
JobKey jobKey = JobKey.jobKey(jobId);
boolean exists = scheduler.checkExists(jobKey);
if (exists) {
throw new RuntimeException("任务已经存在!");
}
log.info("======== 创建任务：{} ========", jobId);
// 构建参数
JobDataMap jobDataMap = new JobDataMap();
Map<String, Object> map = QuartzUtils.generatorJobDataMap(jobEntity);
jobDataMap.put("paramMap", map);
// 以任务的ID来构建定时任务
Class<? extends Job> aClass = BaseQuartzJobBean.class;
JobBuilder jobBuilder = JobBuilder.newJob(aClass).withIdentity(jobId);
jobBuilder.setJobData(jobDataMap);
JobDetail jobDetail = jobBuilder.build();
// 设置cron
String cron = jobEntity.getCronExpression();
// 验证cron
CronUtils.isValid(cron);
CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(cron);
// 任务触发器
CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(jobId).withSchedule(scheduleBuilder).build();
scheduler.scheduleJob(jobDetail, trigger);
// 更新任务状态为已执行
// 执行中
jobEntity.setSituation(JobConstant.EXECUTE);
jobMapper.update(jobEntity);
} catch (Exception e) {
e.printStackTrace();
throw new RuntimeException("任务启动失败!");
}
}
/** * 重新执行任务 - 更新任务 * * @param jobEntity 任务实体 * @throws SchedulerException */
public void updateJob(JobEntity jobEntity) {
try {
String jobId = jobEntity.getId();
JobKey jobKey = JobKey.jobKey(jobId);
boolean exists = scheduler.checkExists(jobKey);
// 任务原有没有执行，则重新创建任务
if (!exists) {
log.info("======== 更新的任务暂未运行,将创建新任务 ========");
startJob(jobEntity, JobConstant.SYSTEM_RUN);
return;
}
log.info("======== 更新任务：{} ========", jobId);
// 先删除，再新建
deleteJob(jobId);
// 新增
String runType = jobEntity.getPolicy().equals(JobConstant.MANUAL) ? JobConstant.USER_RUN : JobConstant.SYSTEM_RUN;
startJob(jobEntity, runType);
} catch (SchedulerException e) {
e.printStackTrace();
throw new RuntimeException("任务更新失败！");
}
}
/** * 删除定时任务 * * @param jobId 定时任务名称 * @throws SchedulerException */
public void deleteJob(String jobId) {
try {
log.info("删除任务：" + jobId);
JobKey jobKey = JobKey.jobKey(jobId);
scheduler.deleteJob(jobKey);
} catch (SchedulerException e) {
e.printStackTrace();
throw new RuntimeException("任务删除失败！ ");
}
}
/** * 暂停任务 * * @param jobId 定时任务ID，与构造任务时的ID一致 * @throws SchedulerException */
public void pauseJob(String jobId) {
try {
log.info("暂停任务：" + jobId);
JobKey jobKey = JobKey.jobKey(jobId);
boolean exists = scheduler.checkExists(jobKey);
if (!exists) {
log.info("任务未运行!");
return;
}
scheduler.pauseJob(jobKey);
} catch (SchedulerException e) {
e.printStackTrace();
throw new RuntimeException("任务暂停失败：" + e.getMessage());
}
}
/** * 恢复任务 * * @param job 定时任务ID，与构造任务时的ID一致 * @throws SchedulerException */
public void resumeJob(JobEntity job) {
String jobId = job.getId();
// 恢复任务时会立即执行一次任务
log.info("恢复任务：" + jobId);
try {
JobKey jobKey = JobKey.jobKey(jobId);
boolean exists = scheduler.checkExists(jobKey);
if (exists) {
scheduler.resumeJob(jobKey);
} else {
startJob(job, JobConstant.SYSTEM_RUN);
}
} catch (SchedulerException e) {
e.printStackTrace();
throw new RuntimeException("任务恢复失败：" + e.getMessage());
}
}
/** * 立即执行一次任务 : 没有达到任务的执行周期直接触发 * * @param jobId 定时任务ID，与构造任务时的ID一致 * @throws SchedulerException */
public void runOnceJob(String jobId) {
try {
log.info("立即执行一次任务：" + jobId);
JobKey jobKey = JobKey.jobKey(jobId);
boolean exists = scheduler.checkExists(jobKey);
if (!exists) {
throw new RuntimeException("任务未运行!");
}
scheduler.triggerJob(jobKey);
} catch (SchedulerException e) {
e.printStackTrace();
throw new RuntimeException("任务执行失败：" + e.getMessage());
}
}
}
5、接口测试
该工程整合swagger进行接口测试实现，具体的接口测试通过swagger发起请求
5.1、新增任务
新增一个任务，corn为：0/5 * * * * ? ，每5S执行一次；
{
"cycle": "seconds",
"invokeTarget": "sysServiceJob.test('test',10L,20.22D,false)",
"name": "测试任务二",
"policy": 2,
"seconds": "0/5",
"status": 0
}
测试结果：每5S会执行一次，运行情况入截图：
5.2、更新任务
更新一个任务，corn为：0/3 * * * * ? ，每3S执行一次；
{
"cycle": "seconds",
"id": "35935f74098c4f33a86eff8eed82b97d",
"invokeTarget": "sysServiceJob.test('test',10L,20.22D,false)",
"name": "测试任务三 ",
"policy": 1,
"seconds": "0/3",
"status": 0,
}
测试结果：由原来的每5S会执行一次变成了3S一次，运行情况入截图：
5.3、任务详情
查看任务时详情，以及后续几次触发时间：
5.4、分布式测试

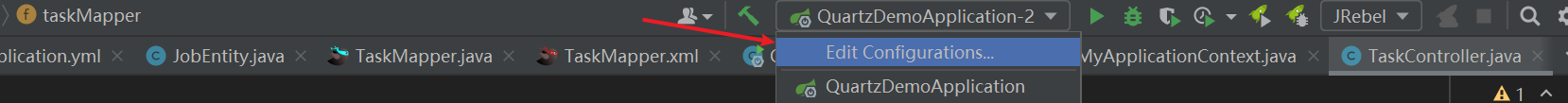

使用IDEA进行测试时，启动两个应用，设置不同的端口，操作如下：
第一步：
第二步：
第三步：
测试并发执行任务：
同时启动两个应用，调用新增接口并且增加多个任务；
通过打印的日志可以看到，同一个时间节点，两个应用执行的任务ID不同，达到了分布式下任务不重复执行的要求；
测试节点宕机：
关闭其中一个应用节点，效果如下：
在仅存的节点中的，打印了所有的任务信息；
测试节点重新加入集群：
新进入集群节点后，任务又会在不同节点上不重复的执行
6、源码参考
具体完整代码可以参考gitee：《quartra-demo》，建议下载源码后，再结合文档说明进行理解；
边栏推荐
- 数字藏品app小程序公众号源码
- 封装组件系列-（一）-插槽及动态组件
- 国际多语言出海商城返佣产品自动匹配订单源码
- Implementing declarative rest calls using feign
- Exness: the progress of Russia Ukraine negotiations is limited, and the RBA's decision remains unchanged
- Half of the property rights of the house are registered in the woman's name when they are in love, and they want to return after they break up
- Why is Web3 a game changer for the "creator economy"
- Tu ne peux pas être libre sans richesse?
- Appearance mode -- it has been used in various packages for a long time!
- NFT will change data ownership in the metauniverse
猜你喜欢
Beginning an excellent emlog theme
Mn Monet pagoda host system v1.5 release
AI security and Privacy Forum issue 11 - stable learning: finding common ground between causal reasoning and machine learning
云画质助手iApp源码
地铁路线图云开发小程序源码和配置教程
距离度量 —— 欧式距离（Euclidean Distance）
Taking the cooperation between different banks as an example, the construction of small program ecology
White screen time, first screen time
外观模式--在各种套餐中早就用到啦！
beginning一款非常优秀的emlog主题
随机推荐
White screen time, first screen time
Migrating minini to littlefs
使用Yolov5训练好模型调用电脑自带摄像头时出现问题：TypeError: argument of type “int‘ is not iterable的解决方法
杰理之获取 BLE 区分复位跟唤醒【篇】
Characteristics and classification of creation mode (single case, factory)
网上开户是安全的吗?普通人可以开吗？
Don't be a fake worker
Jerry's acquisition of ble to check the causes of abnormal conditions such as abnormal code reset [chapter]
Application of volatile in single chip microcomputer
Droid-slam: depth vision slam for monocular and binocular rgbd cameras
Yibentong 1122: calculating saddle point
5. read the specified pathname -dirname
企业微信小程序避坑指南，欢迎补充。。。
Half of the property rights of the house are registered in the woman's name when they are in love, and they want to return after they break up
95后大厂程序员删库被判刑！只因项目被接手对领导心生不满
杰理之BLE SPP 开启 pin_code 功能【篇】
Surrounddepth: self supervised multi camera look around depth estimation
装饰模式--小美的生日蛋糕
外观模式--在各种套餐中早就用到啦！
SWUST oj668: the thief ran away
