Jenkins voucher management

Catalog

1、 install Credentials Binding plug-in unit .

2、 combination git Pull up the code , Presentation voucher management .

 2.1、jenkins Installation on git plug-in unit

 2.2、CentOS7 Installation on Git Tools

3、 The user password type creates a voucher

 3.1、 add to http The credentials

3.1.1、 Using credentials

 3.1.2、 Use Jenkins structure , Pull the code

  3.2、 add to ssh The credentials

 3.2.1、 Use root Users generate public and private keys

3.2.2、 Put the generated public key in gitlab On

---

Credentials can be used to store database passwords that require ciphertext protection 、Gitlab Password information 、Docker Private warehouse password, etc , In order to Jenkins It can interact with these third-party applications .

1、 install Credentials Binding plug-in unit .

To be in Jenkins Use the voucher management function , Need to install Credentials Binding plug-in unit .

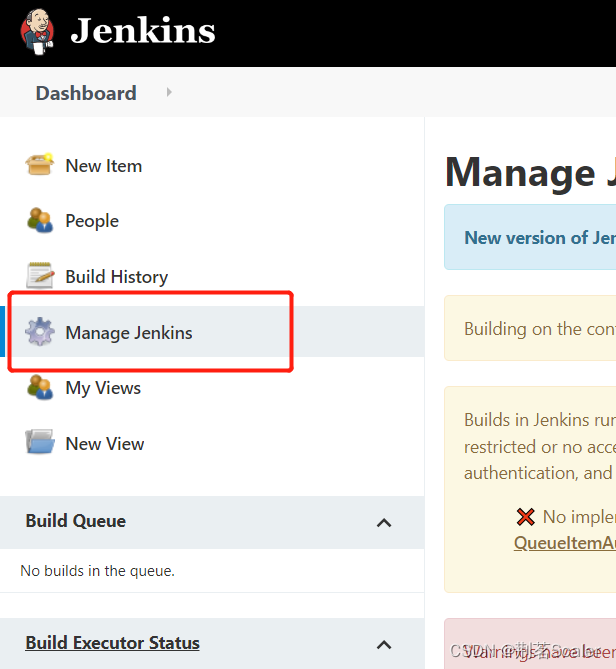

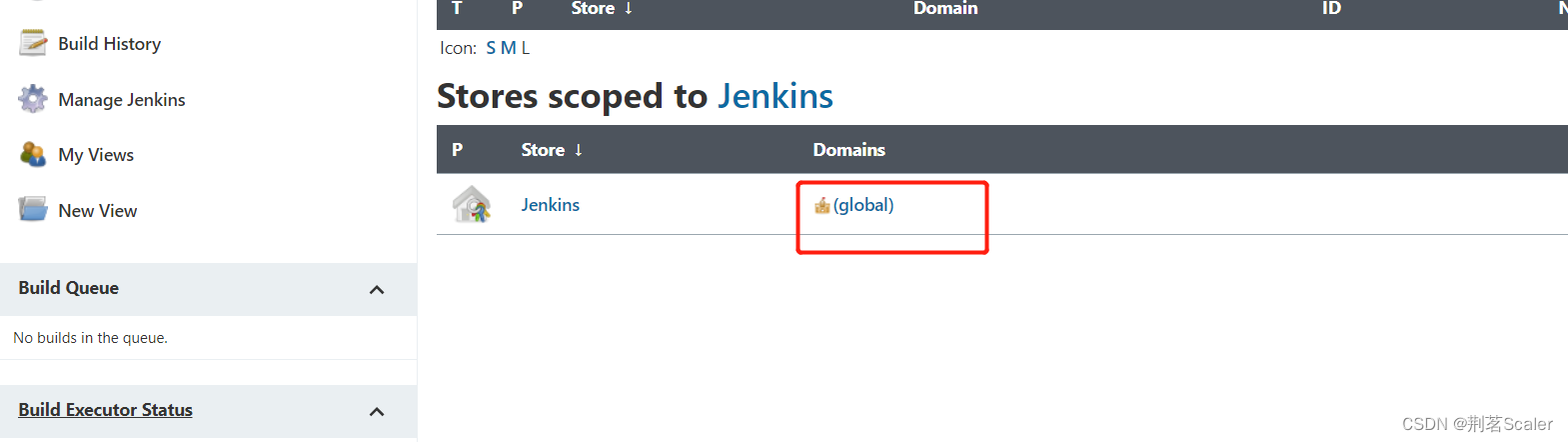

After the installation , stay Manage Jenkins Can be found in ： Different versions have different locations , Some versions are listed in the left-hand menu .



2、 combination git Pull up the code , Presentation voucher management .

In order to make Jenkins from git Can pull code on , Need to be in jenkins Installation on git plug-in unit 、linux Installation on server git .

 2.1、jenkins Installation on git plug-in unit

 2.2、CentOS7 Installation on Git Tools

yum install git -y  install

git --version    Check the version after installation

3、 The user password type creates a voucher







 3.1、 add to http The credentials

Account No gitlab Account number registered on



3.1.1、 Using credentials





visit gitlab, Copy project address ：

  visit Jenkins, Enter the gitlab Address , Select add a good voucher , preservation ：

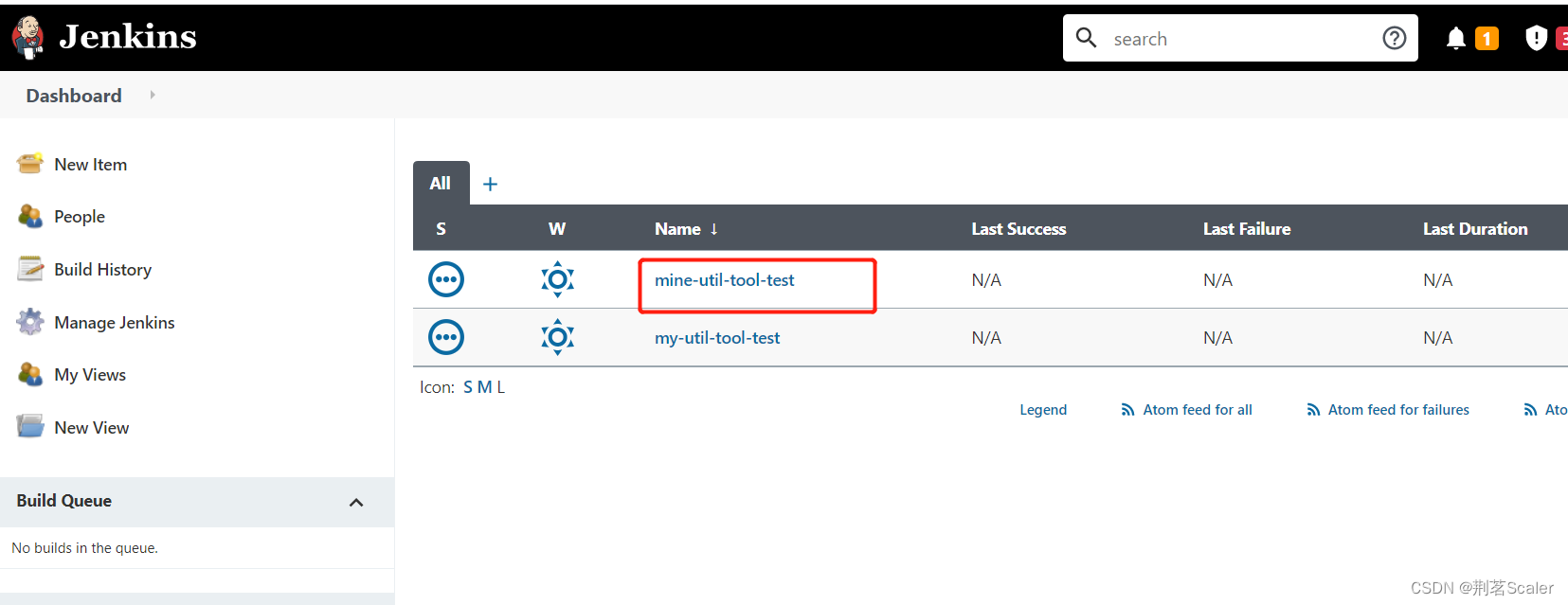

 3.1.2、 Use Jenkins structure , Pull the code

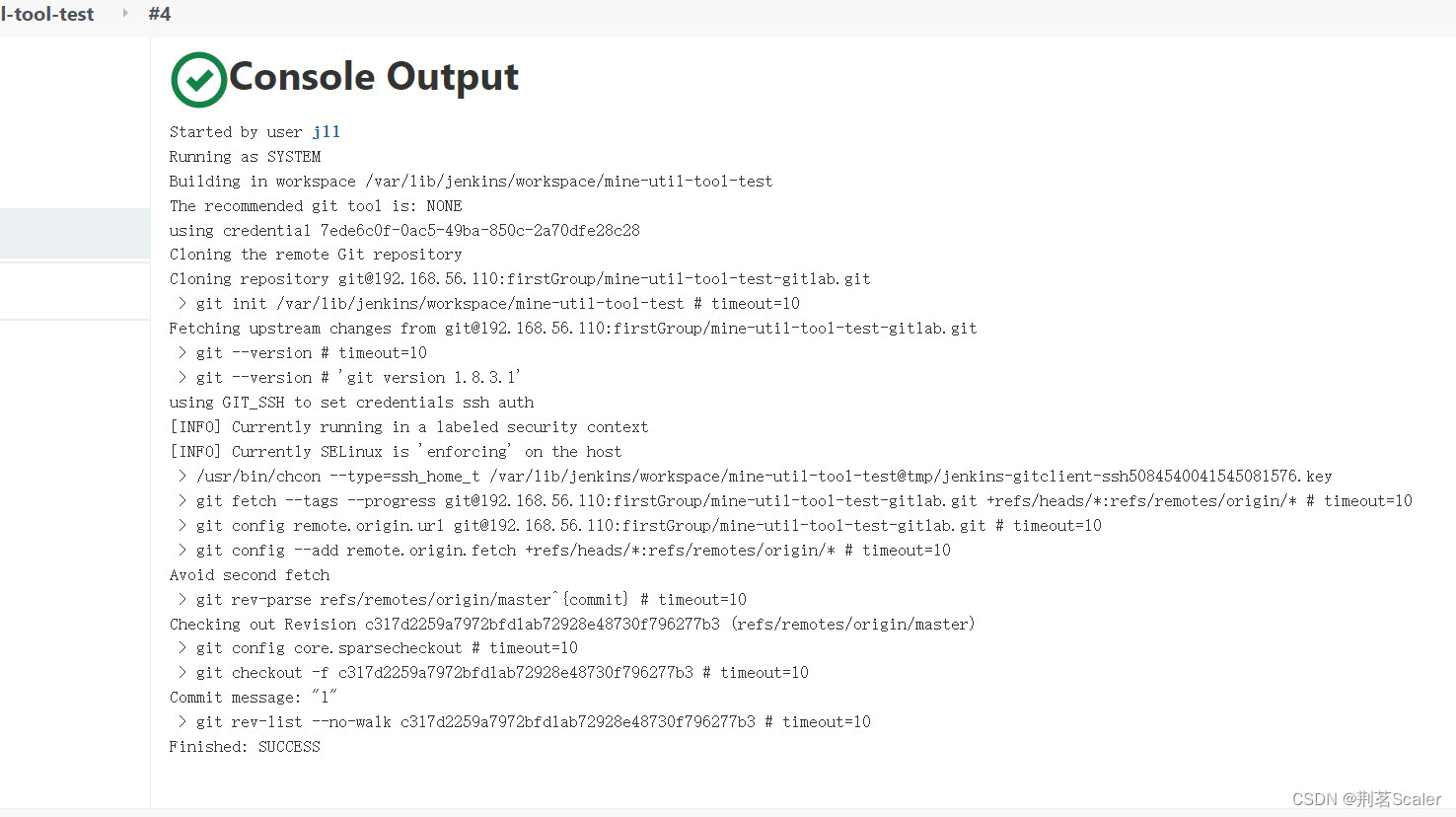

  Pull complete ：

  3.2、 add to ssh The credentials

ssh Secret free login diagram ：

 3.2.1、 Use root Users generate public and private keys

ssh-keygen -t rsa

stay /root/.ssh/ The directory holds the public and private keys .

id_rsa： Private key file

id_rsa.pub： A public key file



3.2.2、 Put the generated public key in gitlab On

With root The account login -》 Click on the picture -》Settings-》SSH Keys

gitlab Must log in root account number , Other accounts cannot be set , The password you set is root123456 .

gitlab Add public key on :



Jenkins Add a private key to the :

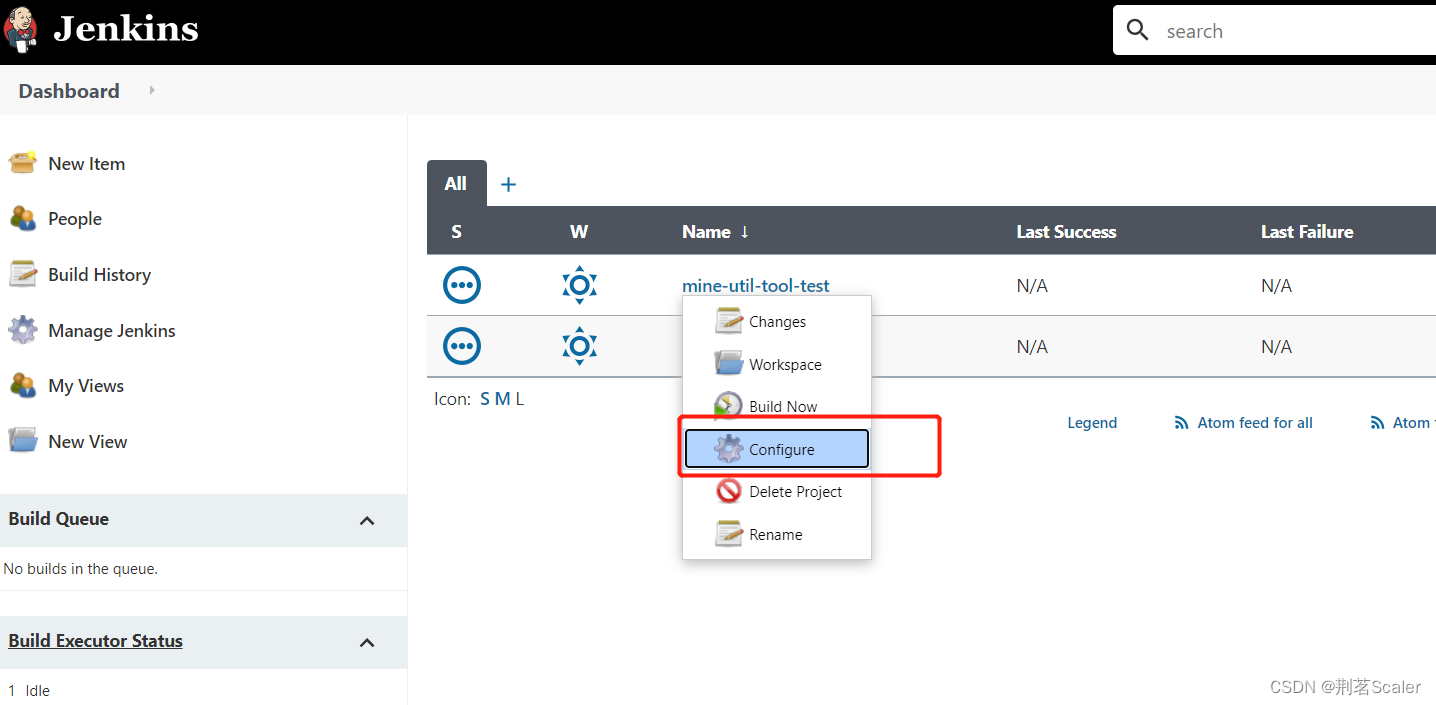

Jenkins Upper item settings git Last project ssh Address :



  Delete the original item , again build:
