2. Multisensor post fusion technology

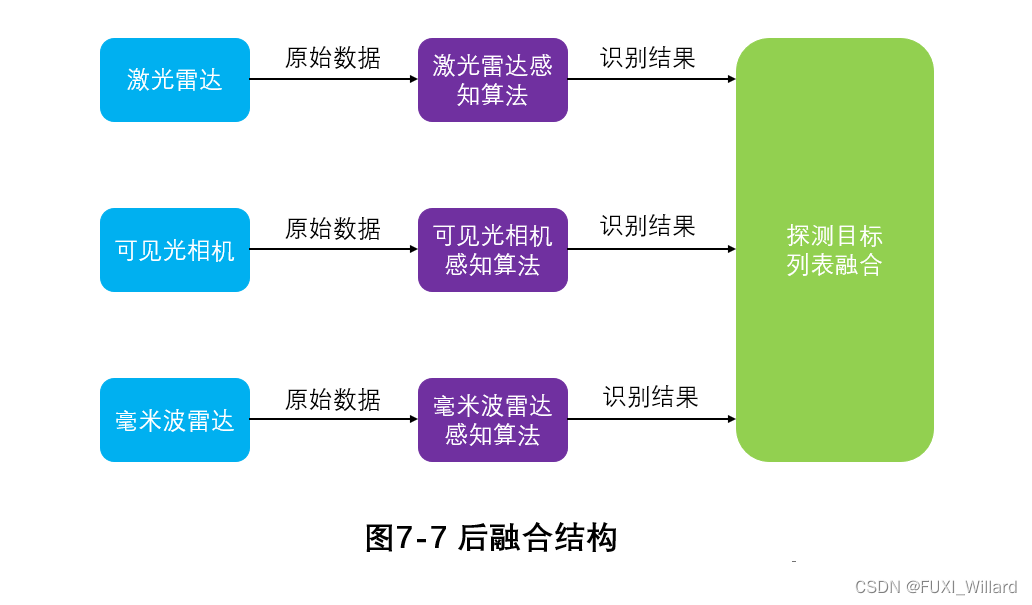

Post fusion technology ： Each sensor outputs detection data information independently , After processing the data information of each sensor , Then fuse and summarize the final perception results .

2.1 Ulm Autopilot ： Modular fusion method

Ulm The University autonomous driving project proposes a modular 、 Sensor independent fusion method , Allow efficient sensor replacement , By mapping on the network 、 Multiple sensors are used in key modules such as location and tracking to ensure information redundancy . This algorithm is mainly applied to radar 、 camera 、 The detection information of the three sensors of the laser scanner is fused , Three stations IBEO LUX The laser scanner is mounted on the front bumper , The camera is mounted behind the windshield , And equipped with multiple radars .

The illustration above ：

• Blue ： Camera field of view ;
• Red ： Laser scanner sensing range ;
• green ： Radar sensing range ;

The algorithm proposes a hierarchical modular environment awareness system (HMEP), It contains three perception layers ： Grid mapping 、 Location and target tracking ;

Each sensing layer will perform sensor fusion , And produce an environmental model result ; In addition to sensor data , The perception layer can also use the results of the previous layer , The order is improved according to the abstraction level of environment model elements ; The results of different perception layers may be redundant , Even contradictory , Therefore, the combination model combines all the results into a unified environment model .

1. Grid mapping layer

   The grid mapping layer divides the surrounding environment into a single grid cell , According to the classical occupancy grid mapping method, the proportion of each cell in the grid graph is estimated , The output result is the percentage probability of each cell ; The combination module mainly uses its output information to predict the boundary of the target object ;
   Specifically ： Based on sensor data , The inverse sensor model can predict the percentage probability of each cell , It is called measuring grid ; The mapping algorithm updates the grid mapping of the measurement grid by using binary Bayesian filter , And fuse the multi-sensor data into the grid mapping layer .
2. Positioning layer

   Positioning layer fusion sensor detection data 、 Grid layer information and digital map , Output digital map with self positioning information ;
   Specifically ： In the grid diagram constructed by three laser scanners, the maximum stable extreme value region is used (Maximally Stable Extremal Regions,MSER) The extracted features , Features in the grid include tree trunks 、 Road signs, etc ; Display based on feature map , The positioning layer uses Monte Carlo to locate (Monte-Carlo Localization,MCL) Method to predict the target attitude .
3. Tracking layer

   The tracking layer passes the radar 、 camera 、 Centralized fusion of lidar detection data realizes the perception of moving objects in the surrounding environment , The information from the grid mapping layer and the positioning layer can also be used to obtain the target orientation 、 Maximum speed and other information , So as to complete the task of multi-target tracking .
   The fusion module uses a labeled dobernuli (Labeled Muti-Bernouli,LMB) Filter implementation , Output a list containing the spatial distribution and probability of existence of the target trajectory ; Tracking layer usage DempsterShafer Methods to realize sensor fusion perception , It can give full play to the advantages of each sensor , Avoid failure due to sensor limitations ;
4. Summary
   The algorithm is proposed , For the future autonomous driving perception system , Its key technology is the ability to replace sensors without changing the core of the fusion system ; Each sensing layer provides a general sensor interface , It can merge additional sensors or replace existing sensors without changing the fusion core of the sensing system .
   Its modular structure is helpful for the replacement of sensors , And the sensor independent interface is mapped in the network 、 The application of positioning and tracking module makes it unnecessary to make any adjustment to the fusion algorithm to modify the sensor settings .

2.2 FOP-MOC Model

Chavez-Garcia And so forth FOP-MOC Model , Take the classification information of the target as the key element of sensor fusion , The method based on evidence framework is used as the sensor fusion algorithm , It mainly solves the problem of sensor data association 、 The problem of sensor fusion .

Low level integration in SLAM Module ; The detection layer fuses the target list detected by each sensor ; The tracking layer integrates the track list of each sensor module tracking the target , To generate the final result .FOP-MOC Sensor fusion is carried out at the detection layer to improve the sensing ability of the sensing system .

FOP-MOC Model , The input information of the fusion model is ： radar 、 camera 、 List of lidar detection targets , The output result is the target detection information after fusion , And send it to the tracking module ; The detection data of radar and lidar are mainly used for moving target detection , The images collected by the camera are mainly used for target classification , Each target is determined by its location 、 Size 、 The evidence distribution of Category Hypothesis , The category information is the shape from the detection result 、 Relative speed and visual appearance .
