VARCHART XGantt Is a powerful Gantt chart control , Its modular design allows you to create applications that meet your needs .XGantt Can be used for .NET,ActiveX and ASP.NET Applications , Can quickly 、 Simply integrate into your application , Help you identify performance bottlenecks 、 Avoid delays and efficient use of resources , Make complex data easier to understand .

Example ： Tutorial project 1

Development environment as a code example , We use up Visual Studio .NET 2010. Our first sample will show the following results ：

Our sample collection includes sample tutorial projects 1, This sample project demonstrates VARCHART XGantt Built in interaction of , And make it easy for you to understand the steps described in our blog series .

Now? , Let's go ！

Place the Gantt chart control on the form

Yes Visual Studio 2010 User reminders ： As we're at the introductory blog ＃1 As already mentioned in , Before you drag the Gantt chart control to the form , Remember to change the target framework from   .NET Framework Client Profile  Change to   .NET Framework 4 .  Set up （C＃） or   Advanced compiler settings （VB）, Because the former lacks System.Design.dll, This is required for design time property pages . If you don't change the frame , An error message will pop up when you try to drag the control onto the form .

To put VARCHART XGantt Control placed on the form , please xgantt_icon_toolbox Select its icon in the toolbox , And draw a frame in the form where you want it to appear .

If you want to run VARCHART Windows Forms The bottom and right sides of the control are adjusted to the full size of the window , Please use the control's anchor or dock attribute .

Tips ：

Use data types and “ enumeration ” Element time , At the beginning of the program “ The name space ” Instructions will save you detailed reference instructions .

VB: Imports NETRONIC.XGantt
C#: using NETRONIC.XGantt;
VcNodeCollection instead of NETRONIC.XGantt.VcNodeCollection.

Provide data

To show activities and links ,VARCHART XGantt Data needs to be provided . By default , Two tables are used for the necessary communication ：

• NodeTable（ Also known as Maindata）
• LinkTable（ Also known as “ Relationship ”）

Put... In the form VARCHART XGantt when , The basic fields have been set .

Maindata Data table fields ：

Fields in relational tables

The other fields needed need to be defined manually . You can use the dialog box at design time “ Management data sheet ”（ Lower part ） To perform this operation , Or through objects at run time VcDataTableFieldCollection Of Add（...） Method to do this .

If you need more tables than are defined by default , You can click after enabled extended data table on property page general , stay “ Management data sheet ” Create them at the top of the dialog .

The method DataRecordByID（） Of VcDataRecordCollection Allows you to quickly find objects through primary keys .

To make activities and links visible in our introductory example , You need to first enter some records in the data table .

This can be done by using this method to add （...） Object type VcDataRecordCollection. The method EndLoading Complete the data input on the corresponding chart . So , Please put it on the form Load Event, enter the following line of code .

Sample code C＃

vcGantt1.ExtendedDataTablesEnabled = true;

    VcDataTable dataTable = vcGantt1.DataTableCollection.DataTableByName("Maindata");

   VcDataRecordCollection dataRecCltn = dataTable.DataRecordCollection;



         dataRecCltn.Add（“ 1; node 1; 04.05.2015 ;; 5 ;; Group 1; Group A;”）;

         dataRecCltn.Add（“ 2; Node 2; 11.05.2015 ;; 5 ;; Group 1; Group A;”）;

         dataRecCltn.Add（“ 3; node 3; 18.05.2015 ;; 5 ;; Group 1; Group B;”）;

   dataTable = vcGantt1.DataTableCollection.DataTableByName（“ Relations”）;

   dataRecCltn = dataTable.DataRecordCollection;

   dataRecCltn.Add("1;1;2");

   dataRecCltn.Add("2;2;3");

  vcGantt1.EndLoading();

Values in records are separated by semicolons . The order of the fields must correspond to the order of the fields in the data definition . The new record must not have an empty ID . The date in the record must be the same as that in the data definition table DateFormat The definition corresponds to . The interpretation of the duration depends on the setting of the time unit . It is preset to days, You can go to “ routine ” Modify it on the properties page .

For the table and “ routine ” Each dialog box on the property page defines the “ date ” Output format .

from CSV File load data

perhaps , You can also choose from CSV File load data . The structure of the file must correspond to the following scheme ：
**** Maindata ****

1;Node 1;04.05.2015;;5;;Group 1;Group A;
2;Node 2;11.05.2015;;5;;Group 1;Group A;
3;Node 3;18.05.2015;;5;;Group 1;Group B;
**** Relations ****
1;1;2;
2;2;3;

Each record has its own line . The content and object type of these lines VcDataRecordCollection Methods Add（...） The parameters passed correspond to .

First, list Maindata Records of data sheets , And then there was Relations Records of data sheets . Use **** Table name **** Mark the beginning of the record group .

If you use the name intro.csv For example, this kind of file is saved , You can import data as follows ：

Sample code C＃

vcGantt1.Load(@"c:\intro.csv");

Specify the period of time represented

Up to now , You won't see any activities , Because the time scale has not been adjusted to the corresponding time period . The display range of the timescale can be displayed through the properties TimeScaleStart and TimeScaleEnd Definition , You can also go through objects VcGantt Of OptimizeTimeScaleStartEnd（...） Method from the data to determine .

Sample code C＃

private void Form1_Load(object sender, System.EventArgs e)

{
    vcGantt1.ExtendedDataTablesEnabled = true;
   VcDataTable dataTable = vcGantt1.DataTableCollection.DataTableByName("Maindata");

   VcDataRecordCollection dataRecCltn = dataTable.DataRecordCollection;

         dataRecCltn.Add（“ 1; node 1; 04.05.2015 ;; 5 ;; Group 1; Group A;” ）;
         dataRecCltn.Add（“ 2; node 2; 11.05.2015 ;; 5 ;; Group 1; Group A;” ）;
         dataRecCltn.Add（“ 3; node 3; 18.05.2015 ;; 5 ;; Group 1; Group B;” ）;


   dataTable = vcGantt1.DataTableCollection.DataTableByName("Relations");

   dataRecCltn = dataTable.DataRecordCollection;

   dataRecCltn.Add("1;1;2");

   dataRecCltn.Add("2;2;3");

   vcGantt1.EndLoading();

   vcGantt1.OptimizeTimeScaleStartEnd(3);

}

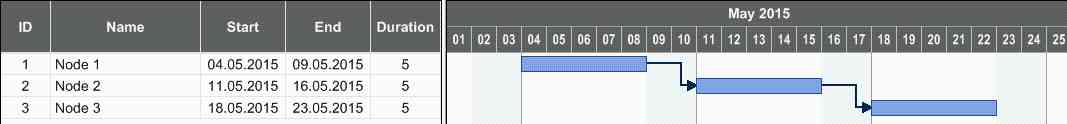

If you run the program now , The result should be as shown in the figure below .

Calculate the end date

The table column containing the end date is still empty . have access to VARCHART XGantt Contains a calendar from “ Start ” and “ The duration of the ” Field to calculate the end time of the activity .

In the default calendar , Working day （ Monday to Friday ） Pre defined as activity time , It's going to be the weekend （ Saturday and Sunday ） Defined as inactive time .

You can identify the inactive time in the graph by the gray background . By disabling “ node ” On the properties page “ Nodes use calendars ” Options , You can close the calendar .

Please note the difference in calculation between using and not using the calendar ：

If you activate the calendar , It starts on Friday and continues 3 The day will end on Tuesday . No calendar , The event will end on Sunday .

You can use objects VcCalendar Of AddDuration（...） Method to calculate the end date . This requires the start and duration of each activity . These fields can be accessed through their index . After the end date set by this method set_DataField（...）, The method updates （） Of VcNode You need to call the changes to be displayed .

Sample code C＃

foreach (VcNode node in vcGantt1.NodeCollection)

         {

            VcCalendar tmpCal = vcGantt1.CalendarCollection.Active;

            DateTime tmpDate = tmpCal.AddDuration((DateTime)node.get_DataField(2),

                                           Convert.ToInt32(node.get_DataField(4)));

            node.set_DataField(3, tmpDate);

            node.Update();

         }

The start and end dates of activities created or modified by mouse interaction are automatically placed at the activity time .

contrary , Can be API Or set the date set by the edit dialog box to non working time .

The date generated by calculation is always placed in working hours . To make sure that you will API Set the date into the working time , You need to calculate the start date from the end date and activity duration .

Sample code C＃

tmpDate = tmpCal.AddDuration((DateTime)node.get_DataField(3),

               (-1) * Convert.ToInt32(node.get_DataField(4)));

node.set_DataField(2, tmpDate);

To keep the data consistent , The missing duration or missing duration should be considered incorrect , And reset it to 0. If the start date is missing , The end date cannot be calculated . The code is called SetNodeEndDate（...） In a separate method .

Sample code C＃

private void SetNodeEndDate(VcNode node)

   {

   // Avoid empty duration or negative duration

   if ((string) node.get_DataField(4) == "" ||

        Convert.ToInt32(node.get_DataField(4)) < 0) node.set_DataField(4,"0"); // If the start date is empty then the end date should also be empty if (node.get_DataField(2).ToString() == "31.12.1899 00:00:00") node.set_DataField(3,""); else { // "Assign calendar to nodes" on the Nodes property page has to be checked VcCalendar tmpCal = vcGantt1.CalendarCollection.Active; DateTime tmpDate = tmpCal.AddDuration( (DateTime)node.get_DataField(2), Convert.ToInt32(node.get_DataField(4))); node.set_DataField(3, tmpDate); // start date only in active timespans tmpDate = tmpCal.AddDuration((DateTime)node.get_DataField(3), (-1) * Convert.ToInt32(node.get_DataField(4))); node.set_DataField(2, tmpDate); node.Update(); }

The calculation of the date is necessary ：

1. After the activity is loaded
2. After modifying the date or duration through the data edit dialog box or in place editor
3. adopt API After modifying the activity value

however , After modification through mouse interaction , There is no need to start the calculation , Because in this case , Internal calculations will be performed automatically .

A computes the loop , It includes all nodes that can be set by attributes NodeCollection in question VcGantt object . Its code will be added to the event Form1_Load（...） At the end of .

Sample code C＃

// Calculate end date for all nodes

foreach (VcNode node in vcGantt1.NodeCollection)

   SetNodeEndDate(node);

Data changes caused by users can be made through events VcNodeModifiedEx obtain . The added method call will calculate the end date .

Sample code C＃

private void vcGantt1_VcNodeModifiedEx(object sender, VcNodeModifiedExEventArgs e)

      {

         switch (e.ModificationType)

         {

            case VcModificationTypes.vcAnything:

               //Node modified by Inplace Editor

               SetNodeEndDate(e.Node);

               break;

            default:

               break;

         }

      }

If API Changed the data value , Must be explicitly called SetNodeEndDate（...） Method .
