HuiFer 带你读懂 BeanFactory getBean 方法
2022-08-05 05:16:00 【staHuri】
Spring BeanFactory
- Author: HuiFer
- 源码阅读仓库: SourceHot-spring
BeanFactory 概述
org.springframework.beans.factory.BeanFactory
类图
方法列表
- 贴出部分代码. 仅表示方法作用
public interface BeanFactory {
// 从容器中根据beanname获取
Object getBean(String name) throws BeansException;
// 延迟加载对象
<T> ObjectProvider<T> getBeanProvider(Class<T> requiredType);
// 是否存在beanName
boolean containsBean(String name);
// 这个 beanName 是否是单例的. 映射成 bean
boolean isSingleton(String name) throws NoSuchBeanDefinitionException;
// 是否多例.
boolean isPrototype(String name) throws NoSuchBeanDefinitionException;
// 类型是否匹配
boolean isTypeMatch(String name, ResolvableType typeToMatch) throws NoSuchBeanDefinitionException;
// 获取bean的类型
Class<?> getType(String name) throws NoSuchBeanDefinitionException;
// 获取别名
String[] getAliases(String name);
}
解析
用例
bean 的实例化有如下几种方法
- 静态方法
- 工厂方法创建
- FactoryBean 接口创建
代码部分
public class UserBean {
private String name;
private Integer age;
public static UserBean createInstance() {
UserBean userBean = new UserBean();
userBean.setAge(18);
userBean.setName("zhangsan");
return userBean;
}
// get set 忽略
}
public interface UserBeanFactory {
UserBean factory();
}
public class UserBeanFactoryImpl implements
UserBeanFactory {
@Override
public UserBean factory() {
return UserBean.createInstance();
}
}
public class UserFactoryBean implements FactoryBean<UserBean> {
@Override
public boolean isSingleton() {
return true;
}
@Override
public UserBean getObject() throws Exception {
return UserBean.createInstance();
}
@Override
public Class<?> getObjectType() {
return UserBean.class;
}
}
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">
<!-- 静态方法-->
<bean id="static-method-user" class="org.source.hot.spring.overview.ioc.bean.init.UserBean" factory-method="createInstance"/>
<!-- 工厂方法创建-->
<bean id="factory-use" class="org.source.hot.spring.overview.ioc.bean.init.UserBean" factory-bean="userFactory" factory-method="factory"></bean>
<!--user 工厂bean-->
<bean id="userFactory" class="org.source.hot.spring.overview.ioc.bean.init.UserBeanFactoryImpl"/>
<!--factory bean-->
<bean id="factory-bean-user" class="org.source.hot.spring.overview.ioc.bean.init.UserFactoryBean"/>
</beans>
public class SpringBeanInstantiation {
public static void main(String[] args) {
BeanFactory context = new ClassPathXmlApplicationContext(
"META-INF/beans/spring-bean-instantiation.xml");
UserBean staticMethodBean = context.getBean("static-method-user", UserBean.class);
UserBean factoryUser = context.getBean("factory-use", UserBean.class);
UserBean factoryBean = context.getBean("factory-bean-user", UserBean.class);
System.out.println();
}
}
分析
- 对下面代码进行分析
UserBean staticMethodBean = context.getBean("static-method-user", UserBean.class);
org.springframework.context.support.AbstractApplicationContext#getBean(java.lang.String, java.lang.Class<T>)
@Override
public <T> T getBean(String name, Class<T> requiredType) throws BeansException {
// 判断 beanFactory 是否存活
assertBeanFactoryActive();
// 1. 获取 beanFactory
// 2. 根据 beanName + class 获取 Bean
return getBeanFactory().getBean(name, requiredType);
}
- 从方法参数
- name: beanName
- requiredType: 唯一的类型. 对象类型
assertBeanFactoryActive
- beanFactory 是否存活判断
protected void assertBeanFactoryActive() {
// 是否存活
if (!this.active.get()) {
// 是否关闭
if (this.closed.get()) {
throw new IllegalStateException(getDisplayName() + " has been closed already");
}
else {
throw new IllegalStateException(getDisplayName() + " has not been refreshed yet");
}
}
}
getBeanFactory
获取beanFactory
获取方法是一个抽象方法
public abstract ConfigurableListableBeanFactory getBeanFactory() throws IllegalStateException;子类实现
org.springframework.context.support.AbstractRefreshableApplicationContext#getBeanFactory@Override public final ConfigurableListableBeanFactory getBeanFactory() { synchronized (this.beanFactoryMonitor) { if (this.beanFactory == null) { throw new IllegalStateException("BeanFactory not initialized or already closed - " + "call 'refresh' before accessing beans via the ApplicationContext"); } return this.beanFactory; } }org.springframework.context.support.GenericApplicationContext#getBeanFactory
@Override public final ConfigurableListableBeanFactory getBeanFactory() { return this.beanFactory; }
获取到的对象是
org.springframework.beans.factory.support.DefaultListableBeanFactory

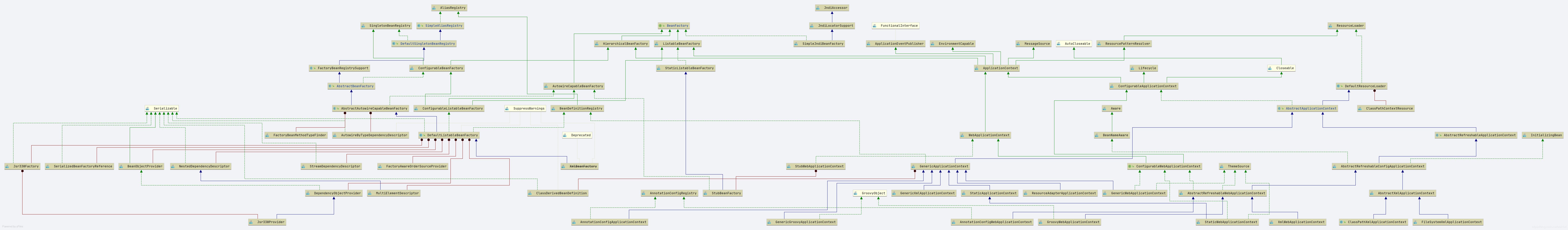

- 整体类图
doGetBean
org.springframework.beans.factory.support.AbstractBeanFactory#doGetBean获取 bean 的核心
transformedBeanName
protected String transformedBeanName(String name) {
// 转换 beanName .
// 1. 通过·BeanFactoryUtils.transformedBeanName· 求beanName
// 2. 如果是有别名的(方法参数是别名) . 会从别名列表中获取对应的 beanName
return canonicalName(BeanFactoryUtils.transformedBeanName(name));
}
public static String transformedBeanName(String name) {
Assert.notNull(name, "'name' must not be null");
// 名字不是 & 开头直接返回
if (!name.startsWith(BeanFactory.FACTORY_BEAN_PREFIX)) {
return name;
}
// 截取字符串 在返回
return transformedBeanNameCache.computeIfAbsent(name, beanName -> {
do {
beanName = beanName.substring(BeanFactory.FACTORY_BEAN_PREFIX.length());
}
while (beanName.startsWith(BeanFactory.FACTORY_BEAN_PREFIX));
return beanName;
});
}
public String canonicalName(String name) {
String canonicalName = name;
// Handle aliasing...
String resolvedName;
do {
// 别名的获取
resolvedName = this.aliasMap.get(canonicalName);
if (resolvedName != null) {
canonicalName = resolvedName;
}
}
while (resolvedName != null);
return canonicalName;
}
别名对象
private final Map<String, String> aliasMap = new ConcurrentHashMap<>(16);
<bean id="factory-bean-user"
class="org.source.hot.spring.overview.ioc.bean.init.UserFactoryBean"/>
<alias name="factory-bean-user" alias="userFactoryBean"/>
aliasMap 和 别名标签的对应关系
alias标签的alias值作为别名的key ， alias 标签的 name 值作为 value
getSingleton
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#getSingleton(java.lang.String)
@Override
@Nullable
public Object getSingleton(String beanName) {
return getSingleton(beanName, true);
}
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#getSingleton(java.lang.String, boolean)
@Nullable
protected Object getSingleton(String beanName, boolean allowEarlyReference) {
// 尝试从单例缓存中获取
Object singletonObject = this.singletonObjects.get(beanName);
// 单例对象是否null
// 这个 beanName 是否正在创建
if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
// 锁
synchronized (this.singletonObjects) {
// 从延迟加载的map中获取
singletonObject = this.earlySingletonObjects.get(beanName);
// 对象是否空 ， 是否允许提前应用
if (singletonObject == null && allowEarlyReference) {
// 从对象工厂map中获取对象工厂
ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
if (singletonFactory != null) {
// 对象获取后设置
singletonObject = singletonFactory.getObject();
this.earlySingletonObjects.put(beanName, singletonObject);
this.singletonFactories.remove(beanName);
}
}
}
}
return singletonObject;
}
- 相关属性值
/** * Cache of singleton objects: bean name to bean instance. * * 单例对象容器, key: beanName , value: bean实例 * */
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);
/** * Cache of singleton factories: bean name to ObjectFactory. * key: beanName * value: 对象工厂 * */
private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);
/** * Names of beans that are currently in creation. * * 当前正在实例化的beanName * * */
private final Set<String> singletonsCurrentlyInCreation =
Collections.newSetFromMap(new ConcurrentHashMap<>(16));
getObjectForBeanInstance
org.springframework.beans.factory.support.AbstractBeanFactory#getObjectForBeanInstance
protected Object getObjectForBeanInstance(
Object beanInstance, String name, String beanName, @Nullable RootBeanDefinition mbd) {
// Don't let calling code try to dereference the factory if the bean isn't a factory.
// 判断 beanName 是不是 bean 工厂
if (BeanFactoryUtils.isFactoryDereference(name)) {
// 类型判断
if (beanInstance instanceof NullBean) {
return beanInstance;
}
if (!(beanInstance instanceof FactoryBean)) {
throw new BeanIsNotAFactoryException(beanName, beanInstance.getClass());
}
if (mbd != null) {
mbd.isFactoryBean = true;
}
// 返回实例
return beanInstance;
}
// Now we have the bean instance, which may be a normal bean or a FactoryBean.
// If it's a FactoryBean, we use it to create a bean instance, unless the
// caller actually wants a reference to the factory.
// 判断是否是 factoryBean
if (!(beanInstance instanceof FactoryBean)) {
return beanInstance;
}
Object object = null;
if (mbd != null) {
mbd.isFactoryBean = true;
}
else {
// 缓存中获取
object = getCachedObjectForFactoryBean(beanName);
}
if (object == null) {
// Return bean instance from factory.
// 如果还是 null 从 factory bean 中创建
FactoryBean<?> factory = (FactoryBean<?>) beanInstance;
// Caches object obtained from FactoryBean if it is a singleton.
if (mbd == null && containsBeanDefinition(beanName)) {
mbd = getMergedLocalBeanDefinition(beanName);
}
boolean synthetic = (mbd != null && mbd.isSynthetic());
// 从 FactoryBean 中获取bean实例
object = getObjectFromFactoryBean(factory, beanName, !synthetic);
}
return object;
}
getObjectFromFactoryBean
org.springframework.beans.factory.support.FactoryBeanRegistrySupport#getObjectFromFactoryBean从 FactoryBean 中获取对象
protected Object getObjectFromFactoryBean(FactoryBean<?> factory, String beanName, boolean shouldPostProcess) {
// 是否单例 是否已经包含
if (factory.isSingleton() && containsSingleton(beanName)) {
synchronized (getSingletonMutex()) {
// 从工厂bean的缓存中获取
Object object = this.factoryBeanObjectCache.get(beanName);
if (object == null) {
// 从 factoryBean 接口中获取
object = doGetObjectFromFactoryBean(factory, beanName);
// Only post-process and store if not put there already during getObject() call above
// (e.g. because of circular reference processing triggered by custom getBean calls)
// 从缓存map中获取
Object alreadyThere = this.factoryBeanObjectCache.get(beanName);
if (alreadyThere != null) {
// 如果缓存中获取有值
// object 覆盖
object = alreadyThere;
}
else {
if (shouldPostProcess) {
if (isSingletonCurrentlyInCreation(beanName)) {
// Temporarily return non-post-processed object, not storing it yet..
return object;
}
// 单例创建前的验证
beforeSingletonCreation(beanName);
try {
// 从 FactoryBean 接口创建的 后置处理
object = postProcessObjectFromFactoryBean(object, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(beanName,
"Post-processing of FactoryBean's singleton object failed", ex);
}
finally {
// 单例bean创建之后
afterSingletonCreation(beanName);
}
}
// 是否包含bean name
if (containsSingleton(beanName)) {
// 插入缓存
// 后续使用的时候可以直接获取
this.factoryBeanObjectCache.put(beanName, object);
}
}
}
return object;
}
}
else {
Object object = doGetObjectFromFactoryBean(factory, beanName);
if (shouldPostProcess) {
try {
object = postProcessObjectFromFactoryBean(object, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(beanName, "Post-processing of FactoryBean's object failed", ex);
}
}
return object;
}
}
beforeSingletonCreation
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#beforeSingletonCreation单例创建前的验证
protected void beforeSingletonCreation(String beanName) {
// 排除的单例beanName 是否包含当前beanName
// 添加当前正在初始化的beanName 是否正确
if (!this.inCreationCheckExclusions.contains(beanName) && !this.singletonsCurrentlyInCreation.add(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
}
postProcessObjectFromFactoryBean
两种实现
org.springframework.beans.factory.support.FactoryBeanRegistrySupport#postProcessObjectFromFactoryBeanprotected Object postProcessObjectFromFactoryBean(Object object, String beanName) throws BeansException { return object; }直接返回 object
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#postProcessObjectFromFactoryBean调用BeanPostProcessor@Override protected Object postProcessObjectFromFactoryBean(Object object, String beanName) { return applyBeanPostProcessorsAfterInitialization(object, beanName); } @Override public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName) throws BeansException { Object result = existingBean; for (BeanPostProcessor processor : getBeanPostProcessors()) { Object current = processor.postProcessAfterInitialization(result, beanName); if (current == null) { return result; } result = current; } return result; }
两个方法军返回
Bean对象 . 一种是直接返回 。 另一种是执行接口BeanPostProcessor接口返回
afterSingletonCreation
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#afterSingletonCreation
protected void afterSingletonCreation(String beanName) {
// 排除的单例beanName 是否包含当前beanName
// 移除当前正在初始化的beanName 是否正确
if (!this.inCreationCheckExclusions.contains(beanName) && !this.singletonsCurrentlyInCreation.remove(beanName)) {
throw new IllegalStateException("Singleton '" + beanName + "' isn't currently in creation");
}
}
- 代码现在进入的很深了，回到 doGetBean
org.springframework.beans.factory.support.AbstractBeanFactory#doGetBean
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
@Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {
// 转换beanName
final String beanName = transformedBeanName(name);
Object bean;
// Eagerly check singleton cache for manually registered singletons.
// 获取单例对象
Object sharedInstance = getSingleton(beanName);
// 单例对象是否存在 参数是否为空
if (sharedInstance != null && args == null) {
if (logger.isTraceEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
}
}
// 实例化bean
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
// 省略后续内容
}
目前未知
doGetBean的第一个if分支已经分析完毕. 接下来看下面的代码下面这段代码就简单说一下就跳过了。
- 从 容器中获取，最后还是回到doGetBean方法中. 来进行bean创建 这里不进行展开。
else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
// 循环依赖的问题
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// Check if bean definition exists in this factory.
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
String nameToLookup = originalBeanName(name);
if (parentBeanFactory instanceof AbstractBeanFactory) {
return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
nameToLookup, requiredType, args, typeCheckOnly);
}
else if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else if (requiredType != null) {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
else {
return (T) parentBeanFactory.getBean(nameToLookup);
}
}
markBeanAsCreated
org.springframework.beans.factory.support.AbstractBeanFactory#markBeanAsCreated方法作用将bean标记为已创建
protected void markBeanAsCreated(String beanName) {
// 已创建的beanName 是否包含当前beanName
if (!this.alreadyCreated.contains(beanName)) {
synchronized (this.mergedBeanDefinitions) {
if (!this.alreadyCreated.contains(beanName)) {
// Let the bean definition get re-merged now that we're actually creating
// the bean... just in case some of its metadata changed in the meantime.
// 将属性stale设置true
clearMergedBeanDefinition(beanName);
// 放入已创建集合中
this.alreadyCreated.add(beanName);
}
}
}
}
protected void clearMergedBeanDefinition(String beanName) {
RootBeanDefinition bd = this.mergedBeanDefinitions.get(beanName);
if (bd != null) {
bd.stale = true;
}
}
stale 的解释
/** * Determines if the definition needs to be re-merged. * 是否需要重新合并定义 * */ volatile boolean stale;属性值 已创建的beanName
private final Set<String> alreadyCreated = Collections.newSetFromMap(new ConcurrentHashMap<>(256));
getMergedLocalBeanDefinition
org.springframework.beans.factory.support.AbstractBeanFactory#getMergedLocalBeanDefinition这个方法获取一个
RootBeanDefinition对象 ， 这个对象也是bean的一种定义。从目前的几个方法名称来看，暂且认为这是一个合并了多个
BeanDefinition的对象吧
protected RootBeanDefinition getMergedLocalBeanDefinition(String beanName) throws BeansException {
// Quick check on the concurrent map first, with minimal locking.
// 缓存中获取
RootBeanDefinition mbd = this.mergedBeanDefinitions.get(beanName);
if (mbd != null && !mbd.stale) {
return mbd;
}
// 合并的 bean 定义
return getMergedBeanDefinition(beanName, getBeanDefinition(beanName));
}
protected RootBeanDefinition getMergedBeanDefinition(String beanName, BeanDefinition bd)
throws BeanDefinitionStoreException {
return getMergedBeanDefinition(beanName, bd, null);
}
getBeanDefinition
- 获取
beanDefinition org.springframework.beans.factory.support.DefaultListableBeanFactory#getBeanDefinition
@Override
public BeanDefinition getBeanDefinition(String beanName) throws NoSuchBeanDefinitionException {
BeanDefinition bd = this.beanDefinitionMap.get(beanName);
if (bd == null) {
if (logger.isTraceEnabled()) {
logger.trace("No bean named '" + beanName + "' found in " + this);
}
throw new NoSuchBeanDefinitionException(beanName);
}
return bd;
}
从 beanDefinition map 中获取
相关属性
/** * Map of bean definition objects, keyed by bean name. * * key: beanName * value: BeanDefinition * * */ private final Map<String, BeanDefinition> beanDefinitionMap = new ConcurrentHashMap<>(256);
getMergedBeanDefinition
获取
RootBeanDefinitionorg.springframework.beans.factory.support.AbstractBeanFactory#getMergedBeanDefinition(java.lang.String, org.springframework.beans.factory.config.BeanDefinition, org.springframework.beans.factory.config.BeanDefinition)第一部分代码
- map 中获取 RootBeanDefinition
- 是否存在父名称
- 类型是否是
RootBeanDefinition- 是: 拷贝
- 否: 将
BeanDefinition转换成RootBeanDefinition
protected RootBeanDefinition getMergedBeanDefinition(
String beanName, BeanDefinition bd, @Nullable BeanDefinition containingBd)
throws BeanDefinitionStoreException {
synchronized (this.mergedBeanDefinitions) {
RootBeanDefinition mbd = null;
RootBeanDefinition previous = null;
// Check with full lock now in order to enforce the same merged instance.
if (containingBd == null) {
// 从缓存中获取
mbd = this.mergedBeanDefinitions.get(beanName);
}
if (mbd == null || mbd.stale) {
previous = mbd;
// 是否存在父名称
if (bd.getParentName() == null) {
// Use copy of given root bean definition.
// 类型是否等于RootBeanDefinition
if (bd instanceof RootBeanDefinition) {
// 做一次对象拷贝
mbd = ((RootBeanDefinition) bd).cloneBeanDefinition();
}
else {
// 将 beanDefinition 创建成 RootBeanDefinition
mbd = new RootBeanDefinition(bd);
}
}
// 省略其他
}
相关属性
/** * Map from bean name to merged RootBeanDefinition. * key: beanName * value: RootBeanDefinition * */ private final Map<String, RootBeanDefinition> mergedBeanDefinitions = new ConcurrentHashMap<>(256);克隆 方法
/** * 克隆 BeanDefinition * @return */ @Override public RootBeanDefinition cloneBeanDefinition() { return new RootBeanDefinition(this); }第二部分代码
{
// Child bean definition: needs to be merged with parent.
// 父BeanDefinition
BeanDefinition pbd;
try {
// 父类beanName
String parentBeanName = transformedBeanName(bd.getParentName());
// 当前beanName是否等于父的beanName
if (!beanName.equals(parentBeanName)) {
// 存在父 beanName
// 父 beanDefinition
// 递归调用
pbd = getMergedBeanDefinition(parentBeanName);
}
else {
// 获取父 beanFactory
BeanFactory parent = getParentBeanFactory();
// beanFactory 类型判断
if (parent instanceof ConfigurableBeanFactory) {
// ConfigurableBeanFactory 的获取方式
pbd = ((ConfigurableBeanFactory) parent).getMergedBeanDefinition(parentBeanName);
}
else {
throw new NoSuchBeanDefinitionException(parentBeanName,
"Parent name '" + parentBeanName + "' is equal to bean name '" + beanName +
"': cannot be resolved without an AbstractBeanFactory parent");
}
}
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanDefinitionStoreException(bd.getResourceDescription(), beanName,
"Could not resolve parent bean definition '" + bd.getParentName() + "'", ex);
}
// Deep copy with overridden values.
// 将 父 BeanDefinition 对象拷贝
mbd = new RootBeanDefinition(pbd);
// 覆盖 beanDefinition
mbd.overrideFrom(bd);
}
overrideFrom
覆盖方法
org.springframework.beans.factory.support.AbstractBeanDefinition#overrideFrom最后一段
// Set default singleton scope, if not configured before.
// 作用域设置
if (!StringUtils.hasLength(mbd.getScope())) {
// 没有设置作用域直接给单例类型
mbd.setScope(SCOPE_SINGLETON);
}
// A bean contained in a non-singleton bean cannot be a singleton itself.
// Let's correct this on the fly here, since this might be the result of
// parent-child merging for the outer bean, in which case the original inner bean
// definition will not have inherited the merged outer bean's singleton status.
// 修正 作用域
if (containingBd != null && !containingBd.isSingleton() && mbd.isSingleton()) {
mbd.setScope(containingBd.getScope());
}
// Cache the merged bean definition for the time being
// (it might still get re-merged later on in order to pick up metadata changes)
if (containingBd == null && isCacheBeanMetadata()) {
// 放入缓存
this.mergedBeanDefinitions.put(beanName, mbd);
}
}
if (previous != null) {
copyRelevantMergedBeanDefinitionCaches(previous, mbd);
}
return mbd;
checkMergedBeanDefinition
org.springframework.beans.factory.support.AbstractBeanFactory#checkMergedBeanDefinitionprotected void checkMergedBeanDefinition(RootBeanDefinition mbd, String beanName, @Nullable Object[] args) throws BeanDefinitionStoreException { if (mbd.isAbstract()) { throw new BeanIsAbstractException(beanName); } }- 判断是否 abstract 标记的情况
继续回到
doGetBean方法
// 需要依赖的bean
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
// 注册依赖bean
registerDependentBean(dep, beanName);
try {
getBean(dep);
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
}
}
}
isDependent
是否存在依赖关系
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#isDependent(java.lang.String, java.lang.String, java.util.Set<java.lang.String>)
private boolean isDependent(String beanName, String dependentBeanName, @Nullable Set<String> alreadySeen) {
if (alreadySeen != null && alreadySeen.contains(beanName)) {
return false;
}
// 别名
String canonicalName = canonicalName(beanName);
// 依赖列表中获取
Set<String> dependentBeans = this.dependentBeanMap.get(canonicalName);
if (dependentBeans == null) {
return false;
}
if (dependentBeans.contains(dependentBeanName)) {
return true;
}
for (String transitiveDependency : dependentBeans) {
if (alreadySeen == null) {
alreadySeen = new HashSet<>();
}
alreadySeen.add(beanName);
if (isDependent(transitiveDependency, dependentBeanName, alreadySeen)) {
return true;
}
}
return false;
}
相关属性
/** * Map between dependent bean names: bean name to Set of dependent bean names. * * key: bean * value: 依赖列表 * */ private final Map<String, Set<String>> dependentBeanMap = new ConcurrentHashMap<>(64);一个用例
<bean class="org.source.hot.spring.overview.ioc.bean.init.SystemUserBean" >
<property name="userBean" ref="factory-use"/>
</bean>
registerDependentBean
- 注册依赖关系
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#registerDependentBean- 在前文调用
isDependent方法的的时候我们找到了一个依赖映射dependentBeanMap，在这个方法中会将依赖关系放入dependentBeanMap
- 在前文调用
public void registerDependentBean(String beanName, String dependentBeanName) {
// 别名
String canonicalName = canonicalName(beanName);
synchronized (this.dependentBeanMap) {
// 向依赖关系中放入数据
Set<String> dependentBeans =
this.dependentBeanMap.computeIfAbsent(canonicalName, k -> new LinkedHashSet<>(8));
if (!dependentBeans.add(dependentBeanName)) {
return;
}
}
synchronized (this.dependenciesForBeanMap) {
Set<String> dependenciesForBean =
this.dependenciesForBeanMap.computeIfAbsent(dependentBeanName, k -> new LinkedHashSet<>(8));
dependenciesForBean.add(canonicalName);
}
}
再回到
doGetBean接下来就是实例化的过程了.
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, () -> {
try {
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
getSingleton
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#getSingleton(java.lang.String, org.springframework.beans.factory.ObjectFactory<?>)获取单例对象
- 从单例对象的map缓存中获取
- 从 ObjectFactory 中获取
周边方法
beforeSingletonCreationafterSingletonCreationaddSingleton
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(beanName, "Bean name must not be null");
synchronized (this.singletonObjects) {
// 从单例对象缓存中获取
Object singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null) {
if (this.singletonsCurrentlyInDestruction) {
throw new BeanCreationNotAllowedException(beanName,
"Singleton bean creation not allowed while singletons of this factory are in destruction " +
"(Do not request a bean from a BeanFactory in a destroy method implementation!)");
}
if (logger.isDebugEnabled()) {
logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
}
// 单例创建前的验证
beforeSingletonCreation(beanName);
boolean newSingleton = false;
boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
if (recordSuppressedExceptions) {
this.suppressedExceptions = new LinkedHashSet<>();
}
try {
// 从 ObjectFactory 中获取
singletonObject = singletonFactory.getObject();
newSingleton = true;
}
catch (IllegalStateException ex) {
// Has the singleton object implicitly appeared in the meantime ->
// if yes, proceed with it since the exception indicates that state.
singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null) {
throw ex;
}
}
catch (BeanCreationException ex) {
if (recordSuppressedExceptions) {
for (Exception suppressedException : this.suppressedExceptions) {
ex.addRelatedCause(suppressedException);
}
}
throw ex;
}
finally {
if (recordSuppressedExceptions) {
this.suppressedExceptions = null;
}
// 创建单例对象后的验证
afterSingletonCreation(beanName);
}
if (newSingleton) {
// 添加到 单例容器中
addSingleton(beanName, singletonObject);
}
}
return singletonObject;
}
}
回到 doGetBean 方法中
if (mbd.isSingleton()) { // 判断是否是单例 sharedInstance = getSingleton(beanName, () -> { try { return createBean(beanName, mbd, args); } catch (BeansException ex) { // Explicitly remove instance from singleton cache: It might have been put there // eagerly by the creation process, to allow for circular reference resolution. // Also remove any beans that received a temporary reference to the bean. destroySingleton(beanName); throw ex; } }); bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd); }这里又要给
createBean方法， 从getSingleton的参数看可以知道 ，第二个匿名函数是ObjectFactory接口实现.@FunctionalInterface public interface ObjectFactory<T> { /** * Return an instance (possibly shared or independent) * of the object managed by this factory. * 获取对象 * @return the resulting instance * @throws BeansException in case of creation errors */ T getObject() throws BeansException; }- createBean 返回的就是单例bean对象的实例
createBean
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBean(java.lang.String, org.springframework.beans.factory.support.RootBeanDefinition, java.lang.Object[])两个核心方法
// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
resolveBeforeInstantiation
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#resolveBeforeInstantiation方法概述:
获取
BeanPostProcessor接口的实现列表applyBeanPostProcessorsBeforeInstantiation前置方法执行applyBeanPostProcessorsAfterInitialization后置方法执行
@Nullable
protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
Object bean = null;
if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
// Make sure bean class is actually resolved at this point.
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
Class<?> targetType = determineTargetType(beanName, mbd);
if (targetType != null) {
/** * 主要实现{@link org.springframework.beans.factory.config.InstantiationAwareBeanPostProcessor#postProcessBeforeInstantiation(java.lang.Class, java.lang.String)} */
bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
if (bean != null) {
bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
}
}
}
mbd.beforeInstantiationResolved = (bean != null);
}
return bean;
}
doCreateBean
- 创建 bean
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#doCreateBean
// Instantiate the bean.
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
// beanFactory 移除当前创建的beanName
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
// beanWrapper 是否存在
if (instanceWrapper == null) {
// 创建 bean 实例
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
createBeanInstance
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBeanInstance- 创建 bean 实例
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
// Make sure bean class is actually resolved at this point.
// 获取 bean class
Class<?> beanClass = resolveBeanClass(mbd, beanName);
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName()
);
}
// 返回一个用来创建bean实例的回调接口
// Supplier get 直接获取bean对象
Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
if (instanceSupplier != null) {
return obtainFromSupplier(instanceSupplier, beanName);
}
if (mbd.getFactoryMethodName() != null) {
// 通过工厂方法创建
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
// Shortcut when re-creating the same bean...
boolean resolved = false;
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
// 自动构造 bean
return autowireConstructor(beanName, mbd, null, null);
}
else {
// 实例化bean
return instantiateBean(beanName, mbd);
}
}
// Candidate constructors for autowiring?
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args);
}
// Preferred constructors for default construction?
ctors = mbd.getPreferredConstructors();
if (ctors != null) {
return autowireConstructor(beanName, mbd, ctors, null);
}
// No special handling: simply use no-arg constructor.
return instantiateBean(beanName, mbd);
}
resolveBeanClass
org.springframework.beans.factory.support.AbstractBeanFactory#resolveBeanClass- 获取bean 的class
@Nullable
protected Class<?> resolveBeanClass(final RootBeanDefinition mbd, String beanName, final Class<?>... typesToMatch)
throws CannotLoadBeanClassException {
try {
// 是否包含 bean 类型
if (mbd.hasBeanClass()) {
// 直接返回
return mbd.getBeanClass();
}
if (System.getSecurityManager() != null) {
return AccessController.doPrivileged((PrivilegedExceptionAction<Class<?>>) () ->
doResolveBeanClass(mbd, typesToMatch), getAccessControlContext());
}
else {
// 从 bean definition 中获取
return doResolveBeanClass(mbd, typesToMatch);
}
}
catch (PrivilegedActionException pae) {
ClassNotFoundException ex = (ClassNotFoundException) pae.getException();
throw new CannotLoadBeanClassException(mbd.getResourceDescription(), beanName, mbd.getBeanClassName(), ex);
}
catch (ClassNotFoundException ex) {
throw new CannotLoadBeanClassException(mbd.getResourceDescription(), beanName, mbd.getBeanClassName(), ex);
}
catch (LinkageError err) {
throw new CannotLoadBeanClassException(mbd.getResourceDescription(), beanName, mbd.getBeanClassName(), err);
}
}
doResolveBeanClass
org.springframework.beans.factory.support.AbstractBeanFactory#doResolveBeanClass第一段
ClassLoader beanClassLoader = getBeanClassLoader(); ClassLoader dynamicLoader = beanClassLoader; boolean freshResolve = false; // 判断 typesToMatch 是否为空 if (!ObjectUtils.isEmpty(typesToMatch)) { // When just doing type checks (i.e. not creating an actual instance yet), // use the specified temporary class loader (e.g. in a weaving scenario). // 获取临时类加载器 ClassLoader tempClassLoader = getTempClassLoader(); if (tempClassLoader != null) { dynamicLoader = tempClassLoader; freshResolve = true; // 类型比较 if (tempClassLoader instanceof DecoratingClassLoader) { DecoratingClassLoader dcl = (DecoratingClassLoader) tempClassLoader; for (Class<?> typeToMatch : typesToMatch) { // 添加排除的类 dcl.excludeClass(typeToMatch.getName()); } } } }第二段
if (className != null) { // bean 属性值 Object evaluated = evaluateBeanDefinitionString(className, mbd); if (!className.equals(evaluated)) { // A dynamically resolved expression, supported as of 4.2... if (evaluated instanceof Class) { return (Class<?>) evaluated; } else if (evaluated instanceof String) { className = (String) evaluated; freshResolve = true; } else { throw new IllegalStateException("Invalid class name expression result: " + evaluated); } }
evaluateBeanDefinitionString
@Nullable
protected Object evaluateBeanDefinitionString(@Nullable String value, @Nullable BeanDefinition beanDefinition) {
// 占位符解析
if (this.beanExpressionResolver == null) {
return value;
}
Scope scope = null;
if (beanDefinition != null) {
// 获取 scope
String scopeName = beanDefinition.getScope();
if (scopeName != null) {
// scope 转换成 接口值
scope = getRegisteredScope(scopeName);
}
}
// 返回对象
return this.beanExpressionResolver.evaluate(value, new BeanExpressionContext(this, scope));
}
evaluate
org.springframework.context.expression.StandardBeanExpressionResolver#evaluate
@Override
@Nullable
public Object evaluate(@Nullable String value, BeanExpressionContext evalContext) throws BeansException {
if (!StringUtils.hasLength(value)) {
return value;
}
try {
Expression expr = this.expressionCache.get(value);
if (expr == null) {
// el表达式解析
expr = this.expressionParser.parseExpression(value, this.beanExpressionParserContext);
// 解析结果放入缓存
this.expressionCache.put(value, expr);
}
// spring 中默认的表达式上下文
StandardEvaluationContext sec = this.evaluationCache.get(evalContext);
if (sec == null) {
// 设置属性
sec = new StandardEvaluationContext(evalContext);
sec.addPropertyAccessor(new BeanExpressionContextAccessor());
sec.addPropertyAccessor(new BeanFactoryAccessor());
sec.addPropertyAccessor(new MapAccessor());
sec.addPropertyAccessor(new EnvironmentAccessor());
sec.setBeanResolver(new BeanFactoryResolver(evalContext.getBeanFactory()));
sec.setTypeLocator(new StandardTypeLocator(evalContext.getBeanFactory().getBeanClassLoader()));
ConversionService conversionService = evalContext.getBeanFactory().getConversionService();
if (conversionService != null) {
sec.setTypeConverter(new StandardTypeConverter(conversionService));
}
customizeEvaluationContext(sec);
this.evaluationCache.put(evalContext, sec);
}
// 把值获取
return expr.getValue(sec);
}
catch (Throwable ex) {
throw new BeanExpressionException("Expression parsing failed", ex);
}
}
- 类图
BeanExpressionContext
- 两个属性
private final ConfigurableBeanFactory beanFactory;
@Nullable
private final Scope scope;
- 几个方法
public boolean containsObject(String key) {
return (this.beanFactory.containsBean(key) ||
(this.scope != null && this.scope.resolveContextualObject(key) != null));
}
@Nullable
public Object getObject(String key) {
if (this.beanFactory.containsBean(key)) {
return this.beanFactory.getBean(key);
}
else if (this.scope != null) {
return this.scope.resolveContextualObject(key);
}
else {
return null;
}
}
beanName 是否存在
根据 beanName 获取 bean 实例
- 回到解析方法
parseExpression
@Override
public Expression parseExpression(String expressionString, @Nullable ParserContext context) throws ParseException {
if (context != null && context.isTemplate()) {
// 是否使用 template 解析
return parseTemplate(expressionString, context);
}
else {
// 自定义的解析规则
return doParseExpression(expressionString, context);
}
}
doParseExpression
- spring 中的两种解析方式
org.springframework.expression.spel.standard.InternalSpelExpressionParser#doParseExpressionorg.springframework.expression.spel.standard.SpelExpressionParser#doParseExpression
- spring 中的两种解析方式
parseTemplate 方法
org.springframework.expression.common.TemplateAwareExpressionParser#parseTemplate
private Expression parseTemplate(String expressionString, ParserContext context) throws ParseException {
// 表达式为空
if (expressionString.isEmpty()) {
// 创建空的 LiteralExpression
return new LiteralExpression("");
}
// 表达式解析成接口

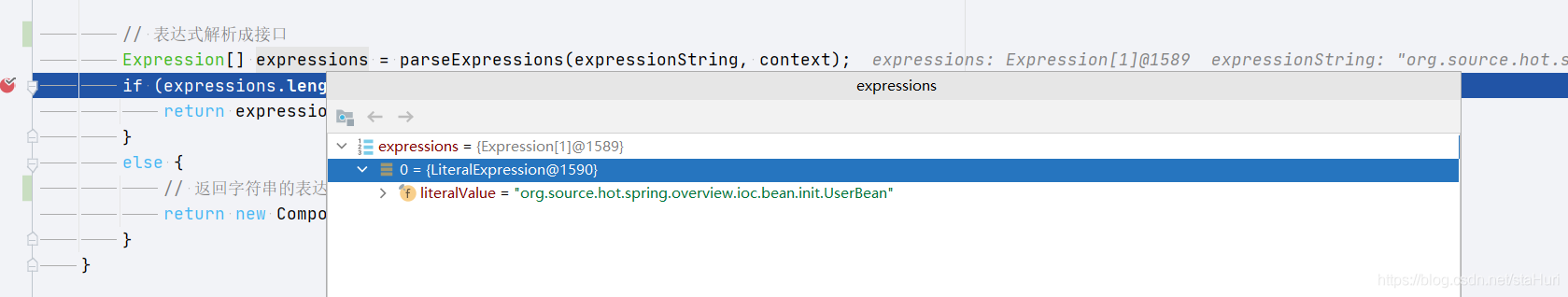

Expression[] expressions = parseExpressions(expressionString, context);
if (expressions.length == 1) {
return expressions[0];
}
else {
// 返回字符串的表达式
return new CompositeStringExpression(expressionString, expressions);
}
}
parseExpressionsorg.springframework.expression.common.TemplateAwareExpressionParser#parseExpressions- 说简单一些这个地方就是拿出表达式的值
回到
evaluate方法
StandardEvaluationContext sec = this.evaluationCache.get(evalContext);
if (sec == null) {
// 设置属性
sec = new StandardEvaluationContext(evalContext);
sec.addPropertyAccessor(new BeanExpressionContextAccessor());
sec.addPropertyAccessor(new BeanFactoryAccessor());
sec.addPropertyAccessor(new MapAccessor());
sec.addPropertyAccessor(new EnvironmentAccessor());
sec.setBeanResolver(new BeanFactoryResolver(evalContext.getBeanFactory()));
sec.setTypeLocator(new StandardTypeLocator(evalContext.getBeanFactory().getBeanClassLoader()));
ConversionService conversionService = evalContext.getBeanFactory().getConversionService();
if (conversionService != null) {
sec.setTypeConverter(new StandardTypeConverter(conversionService));
}
customizeEvaluationContext(sec);
this.evaluationCache.put(evalContext, sec);
}
// 把值获取
return expr.getValue(sec);
最后一句
getValueorg.springframework.expression.common.LiteralExpression#getValue(org.springframework.expression.EvaluationContext)刚才流程中我们可以看到
expr是LiteralExpression@Override public String getValue(EvaluationContext context) { return this.literalValue; }直接返回字符串. 这个字符串就是刚才放进去的 el表达式
往外跳 找到方法 doResolveBeanClass
if (className != null) {
// bean 属性值
Object evaluated = evaluateBeanDefinitionString(className, mbd);
if (!className.equals(evaluated)) {
// A dynamically resolved expression, supported as of 4.2...
if (evaluated instanceof Class) {
return (Class<?>) evaluated;
}
else if (evaluated instanceof String) {
className = (String) evaluated;
freshResolve = true;
}
else {
throw new IllegalStateException("Invalid class name expression result: " + evaluated);
}
}
if (freshResolve) {
// When resolving against a temporary class loader, exit early in order
// to avoid storing the resolved Class in the bean definition.
if (dynamicLoader != null) {
try {
return dynamicLoader.loadClass(className);
}
catch (ClassNotFoundException ex) {
if (logger.isTraceEnabled()) {
logger.trace("Could not load class [" + className + "] from " + dynamicLoader + ": " + ex);
}
}
}
return ClassUtils.forName(className, dynamicLoader);
}
}
- 目前为止我们解析了 第一句话
Object evaluated = evaluateBeanDefinitionString(className, mbd);接下来往下走看一下具体的 class 返回对象
- 类型等于 class 直接返回
- 类型等于 String 的两种返回方式
- ClassLoader.loadClass 返回
- ClassUtils.forName 返回
- 底层方法为
java.lang.Class#forName(java.lang.String, boolean, java.lang.ClassLoader)
- 底层方法为
resolveBeanClass
回到
doResolveBeanClass方法中.最后一行// Resolve regularly, caching the result in the BeanDefinition... return mbd.resolveBeanClass(beanClassLoader);
@Nullable
public Class<?> resolveBeanClass(@Nullable ClassLoader classLoader) throws ClassNotFoundException {
// 获取beanClassName
String className = getBeanClassName();
if (className == null) {
return null;
}
// 加载类
Class<?> resolvedClass = ClassUtils.forName(className, classLoader);
this.beanClass = resolvedClass;
// 返回
return resolvedClass;
}
- 获取 beanClassName
@Override
@Nullable
public String getBeanClassName() {
Object beanClassObject = this.beanClass;
if (beanClassObject instanceof Class) {
return ((Class<?>) beanClassObject).getName();
}
else {
return (String) beanClassObject;
}
}
- 回到
createBeanInstanceorg.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBeanInstance
// 返回一个用来创建bean实例的回调接口
// Supplier get 直接获取bean对象
Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
if (instanceSupplier != null) {
return obtainFromSupplier(instanceSupplier, beanName);
}
obtainFromSupplier
protected BeanWrapper obtainFromSupplier(Supplier<?> instanceSupplier, String beanName) {
Object instance;
// 获取当前的bean实例
String outerBean = this.currentlyCreatedBean.get();
// 设置当前处理的beanName
this.currentlyCreatedBean.set(beanName);
try {
// 从 Supplier 中获取
instance = instanceSupplier.get();
}
finally {
if (outerBean != null) {
// 如果 currentlyCreatedBean 取不到设置
this.currentlyCreatedBean.set(outerBean);
}
else {
// 移除
this.currentlyCreatedBean.remove();
}
}
if (instance == null) {
// supplier 中获取不到, 将实例设置为 NullBean
instance = new NullBean();
}
// beanWrapper 包装
BeanWrapper bw = new BeanWrapperImpl(instance);
// beanWrapper 实例化后的操作
initBeanWrapper(bw);
return bw;
}
Supplier代码如下
@FunctionalInterface
public interface Supplier<T> {
/** * Gets a result. * * @return a result */
T get();
}
initBeanWrapper
protected void initBeanWrapper(BeanWrapper bw) {
// 设置转换服务
bw.setConversionService(getConversionService());
// 注册自定义属性编辑器
registerCustomEditors(bw);
}
registerCustomEditors
protected void registerCustomEditors(PropertyEditorRegistry registry) {
PropertyEditorRegistrySupport registrySupport =
(registry instanceof PropertyEditorRegistrySupport ? (PropertyEditorRegistrySupport) registry : null);
if (registrySupport != null) {
registrySupport.useConfigValueEditors();
}
if (!this.propertyEditorRegistrars.isEmpty()) {
for (PropertyEditorRegistrar registrar : this.propertyEditorRegistrars) {
try {
// 属性编辑器,注册自定义属性编辑器
registrar.registerCustomEditors(registry);
}
catch (BeanCreationException ex) {
Throwable rootCause = ex.getMostSpecificCause();
if (rootCause instanceof BeanCurrentlyInCreationException) {
BeanCreationException bce = (BeanCreationException) rootCause;
String bceBeanName = bce.getBeanName();
if (bceBeanName != null && isCurrentlyInCreation(bceBeanName)) {
if (logger.isDebugEnabled()) {
logger.debug("PropertyEditorRegistrar [" + registrar.getClass().getName() +
"] failed because it tried to obtain currently created bean '" +
ex.getBeanName() + "': " + ex.getMessage());
}
onSuppressedException(ex);
continue;
}
}
throw ex;
}
}
}
if (!this.customEditors.isEmpty()) {
this.customEditors.forEach((requiredType, editorClass) ->
registry.registerCustomEditor(requiredType, BeanUtils.instantiateClass(editorClass)));
}
}
最后调用
org.springframework.beans.support.ResourceEditorRegistrar#registerCustomEditors
registerCustomEditors
@Override
public void registerCustomEditors(PropertyEditorRegistry registry) {
ResourceEditor baseEditor = new ResourceEditor(this.resourceLoader, this.propertyResolver);
doRegisterEditor(registry, Resource.class, baseEditor);
doRegisterEditor(registry, ContextResource.class, baseEditor);
doRegisterEditor(registry, InputStream.class, new InputStreamEditor(baseEditor));
doRegisterEditor(registry, InputSource.class, new InputSourceEditor(baseEditor));
doRegisterEditor(registry, File.class, new FileEditor(baseEditor));
doRegisterEditor(registry, Path.class, new PathEditor(baseEditor));
doRegisterEditor(registry, Reader.class, new ReaderEditor(baseEditor));
doRegisterEditor(registry, URL.class, new URLEditor(baseEditor));
ClassLoader classLoader = this.resourceLoader.getClassLoader();
doRegisterEditor(registry, URI.class, new URIEditor(classLoader));
doRegisterEditor(registry, Class.class, new ClassEditor(classLoader));
doRegisterEditor(registry, Class[].class, new ClassArrayEditor(classLoader));
if (this.resourceLoader instanceof ResourcePatternResolver) {
doRegisterEditor(registry, Resource[].class,
new ResourceArrayPropertyEditor((ResourcePatternResolver) this.resourceLoader, this.propertyResolver));
}
}
doRegisterEditor
private void doRegisterEditor(PropertyEditorRegistry registry, Class<?> requiredType, PropertyEditor editor) {
if (registry instanceof PropertyEditorRegistrySupport) {
// 属性编辑器覆盖默认的编辑器
((PropertyEditorRegistrySupport) registry).overrideDefaultEditor(requiredType, editor);
}
else {
// 注册自定义的属性编辑器
registry.registerCustomEditor(requiredType, editor);
}
}
覆盖默认编辑器
public void overrideDefaultEditor(Class<?> requiredType, PropertyEditor propertyEditor) {
if (this.overriddenDefaultEditors == null) {
this.overriddenDefaultEditors = new HashMap<>();
}
this.overriddenDefaultEditors.put(requiredType, propertyEditor);
}
registerCustomEditor
@Override
public void registerCustomEditor(@Nullable Class<?> requiredType, @Nullable String propertyPath, PropertyEditor propertyEditor) {
if (requiredType == null && propertyPath == null) {
throw new IllegalArgumentException("Either requiredType or propertyPath is required");
}
if (propertyPath != null) {
if (this.customEditorsForPath == null) {
this.customEditorsForPath = new LinkedHashMap<>(16);
}
this.customEditorsForPath.put(propertyPath, new CustomEditorHolder(propertyEditor, requiredType));
}
else {
if (this.customEditors == null) {
this.customEditors = new LinkedHashMap<>(16);
}
// 放入 customEditors map对象中
this.customEditors.put(requiredType, propertyEditor);
this.customEditorCache = null;
}
}
到这里 createBeanInstance 流程已经完毕
回到doCreateBean 方法
// beanWrapper 是否存在
if (instanceWrapper == null) {
// 创建 bean 实例
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
// 获取 实例
final Object bean = instanceWrapper.getWrappedInstance();
// beanWrapper中存储的实例.class
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
紧接着两行代码 获取 bean 实例 和beanType
applyMergedBeanDefinitionPostProcessors
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
// 后置方法执行 BeanPostProcessor
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Post-processing of merged bean definition failed", ex
);
}
mbd.postProcessed = true;
}
}
applyMergedBeanDefinitionPostProcessors方法会执行所有的后置方法.
protected void applyMergedBeanDefinitionPostProcessors(RootBeanDefinition mbd, Class<?> beanType, String beanName) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof MergedBeanDefinitionPostProcessor) {
MergedBeanDefinitionPostProcessor bdp = (MergedBeanDefinitionPostProcessor) bp;
bdp.postProcessMergedBeanDefinition(mbd, beanType, beanName);
}
}
}
addSingletonFactory
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#addSingletonFactory继续回到 doCreateBean
// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
// 单例对象暴露
if (earlySingletonExposure) {
if (logger.isTraceEnabled()) {
logger.trace("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
}
org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#addSingletonFactory添加单例工厂
protected void addSingletonFactory(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(singletonFactory, "Singleton factory must not be null");
synchronized (this.singletonObjects) {
if (!this.singletonObjects.containsKey(beanName)) {
// 添加单例对象工厂
this.singletonFactories.put(beanName, singletonFactory);
// 删除单例BeanName
this.earlySingletonObjects.remove(beanName);
// 注册单例beanName
this.registeredSingletons.add(beanName);
}
}
}
getEarlyBeanReference
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#getEarlyBeanReference
@Override
public Object getEarlyBeanReference(Object bean, String beanName) {
// 尝试获取缓存
Object cacheKey = getCacheKey(bean.getClass(), beanName);
// 加入缓存
this.earlyProxyReferences.put(cacheKey, bean);
// 代理对象
return wrapIfNecessary(bean, beanName, cacheKey);
}
- wrapIfNecessary
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
// 这个bean是否处理过
if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
return bean;
}
// 这个bean是否需要代理
if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
return bean;
}
// 1.bean.class是否是Spring接口类型 2. 是否为 AutowireCapableBeanFactory 接口
if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
// 向代理集合中插入值
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
// Create proxy if we have advice.
// 增强方法获取
Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
// 增强方法不为空
if (specificInterceptors != DO_NOT_PROXY) {
// 向代理集合中插入值
this.advisedBeans.put(cacheKey, Boolean.TRUE);
// 创建代理
Object proxy = createProxy(
bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
// 代理类型
this.proxyTypes.put(cacheKey, proxy.getClass());
return proxy;
}
this.advisedBeans.put(cacheKey, Boolean.FALSE);
return bean;
}
回到下面代码中
if (earlySingletonExposure) { if (logger.isTraceEnabled()) { logger.trace("Eagerly caching bean '" + beanName + "' to allow for resolving potential circular references"); } // 添加单例工厂 addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean)); }- 上述方法就是将结果bean放入
populateBean
// Initialize the bean instance.
Object exposedObject = bean;
try {
populateBean(beanName, mbd, instanceWrapper);
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#populateBean设置属性值
概述一下方法
自动注入的两种实现
- 根据类型
- 根据名称
xml 中的属性标签设置
<bean class="org.source.hot.spring.overview.ioc.bean.init.UserBean"> <property name="age" value="30"/> </bean>
{ if (bw == null) { if (mbd.hasPropertyValues()) { throw new BeanCreationException( mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance"); } else { // Skip property population phase for null instance. return; } } // Give any InstantiationAwareBeanPostProcessors the opportunity to modify the // state of the bean before properties are set. This can be used, for example, // to support styles of field injection. if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) { for (BeanPostProcessor bp : getBeanPostProcessors()) { if (bp instanceof InstantiationAwareBeanPostProcessor) { InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp; if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) { return; } } } } PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null); // 获取自动注入的值 int resolvedAutowireMode = mbd.getResolvedAutowireMode(); // 自动注入 if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) { MutablePropertyValues newPvs = new MutablePropertyValues(pvs); // Add property values based on autowire by name if applicable. if (resolvedAutowireMode == AUTOWIRE_BY_NAME) { // 按照名称注入 autowireByName(beanName, mbd, bw, newPvs); } // Add property values based on autowire by type if applicable. if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) { // 按照类型注入 autowireByType(beanName, mbd, bw, newPvs); } pvs = newPvs; } boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors(); boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE); PropertyDescriptor[] filteredPds = null; if (hasInstAwareBpps) { if (pvs == null) { pvs = mbd.getPropertyValues(); } for (BeanPostProcessor bp : getBeanPostProcessors()) { if (bp instanceof InstantiationAwareBeanPostProcessor) { InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp; PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName); if (pvsToUse == null) { if (filteredPds == null) { filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching); } pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName); if (pvsToUse == null) { return; } } pvs = pvsToUse; } } } if (needsDepCheck) { if (filteredPds == null) { filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching); } // 以来检查 checkDependencies(beanName, mbd, filteredPds, pvs); } if (pvs != null) { // 应用属性 applyPropertyValues(beanName, mbd, bw, pvs); } }
pvs 属性如下
applyPropertyValues
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#applyPropertyValues- 属性设置
protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
if (pvs.isEmpty()) {
return;
}
if (System.getSecurityManager() != null && bw instanceof BeanWrapperImpl) {
((BeanWrapperImpl) bw).setSecurityContext(getAccessControlContext());
}
MutablePropertyValues mpvs = null;
// 没有解析的属性
List<PropertyValue> original;
if (pvs instanceof MutablePropertyValues) {
mpvs = (MutablePropertyValues) pvs;
if (mpvs.isConverted()) {
// Shortcut: use the pre-converted values as-is.
try {
bw.setPropertyValues(mpvs);
return;
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
original = mpvs.getPropertyValueList();
}
else {
original = Arrays.asList(pvs.getPropertyValues());
}
// 自定义转换器
TypeConverter converter = getCustomTypeConverter();
if (converter == null) {
converter = bw;
}
// 创建BeanDefinitionValueResolver
BeanDefinitionValueResolver valueResolver = new BeanDefinitionValueResolver(this, beanName, mbd, converter);
// Create a deep copy, resolving any references for values.
// 解析后的对象集合
List<PropertyValue> deepCopy = new ArrayList<>(original.size());
boolean resolveNecessary = false;
for (PropertyValue pv : original) {
// 解析过的属性
if (pv.isConverted()) {
deepCopy.add(pv);
}
// 没有解析过的属性
else {
// 属性名称
String propertyName = pv.getName();
// 属性值,直接读取到的
Object originalValue = pv.getValue();
if (originalValue == AutowiredPropertyMarker.INSTANCE) {
Method writeMethod = bw.getPropertyDescriptor(propertyName).getWriteMethod();
if (writeMethod == null) {
throw new IllegalArgumentException("Autowire marker for property without write method: " + pv);
}
originalValue = new DependencyDescriptor(new MethodParameter(writeMethod, 0), true);
}
// 解析值
Object resolvedValue = valueResolver.resolveValueIfNecessary(pv, originalValue);
Object convertedValue = resolvedValue;
/** * 1. isWritableProperty: 属性可写 * 2. isNestedOrIndexedProperty: 是否循环嵌套 */
boolean convertible = bw.isWritableProperty(propertyName) &&
!PropertyAccessorUtils.isNestedOrIndexedProperty(propertyName);
if (convertible) {
// 转换器解析
convertedValue = convertForProperty(resolvedValue, propertyName, bw, converter);
}
// Possibly store converted value in merged bean definition,
// in order to avoid re-conversion for every created bean instance.
if (resolvedValue == originalValue) {
if (convertible) {
pv.setConvertedValue(convertedValue);
}
deepCopy.add(pv);
}
// 类型解析
else if (convertible && originalValue instanceof TypedStringValue &&
!((TypedStringValue) originalValue).isDynamic() &&
!(convertedValue instanceof Collection || ObjectUtils.isArray(convertedValue))) {
pv.setConvertedValue(convertedValue);
deepCopy.add(pv);
}
else {
resolveNecessary = true;
deepCopy.add(new PropertyValue(pv, convertedValue));
}
}
}
if (mpvs != null && !resolveNecessary) {
mpvs.setConverted();
}
// Set our (possibly massaged) deep copy.
try {
bw.setPropertyValues(new MutablePropertyValues(deepCopy));
}
catch (BeansException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
属性设置后跳出方法回到 doCreateBean
try {
populateBean(beanName, mbd, instanceWrapper);
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
initializeBean
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#initializeBean(java.lang.String, java.lang.Object, org.springframework.beans.factory.support.RootBeanDefinition)我们可以看一下整个代码的流程
- aware 接口的执行
- BeanPostProcessor 前置方法执行
- bean实例化
- BeanPostProcessor 后置方法执行
- 返回bean
protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
invokeAwareMethods(beanName, bean);
return null;
}, getAccessControlContext());
}
else {
// aware 接口执行
invokeAwareMethods(beanName, bean);
}
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
// BeanPostProcessor 前置方法执行
wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
}
try {
// 执行实例化函数
invokeInitMethods(beanName, wrappedBean, mbd);
}
catch (Throwable ex) {
throw new BeanCreationException(
(mbd != null ? mbd.getResourceDescription() : null),
beanName, "Invocation of init method failed", ex
);
}
if (mbd == null || !mbd.isSynthetic()) {
// BeanPostProcessor 后置方法执行
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
return wrappedBean;
}
- Aware 接口的执行
private void invokeAwareMethods(final String beanName, final Object bean) {
if (bean instanceof Aware) {
if (bean instanceof BeanNameAware) {
((BeanNameAware) bean).setBeanName(beanName);
}
if (bean instanceof BeanClassLoaderAware) {
ClassLoader bcl = getBeanClassLoader();
if (bcl != null) {
((BeanClassLoaderAware) bean).setBeanClassLoader(bcl);
}
}
if (bean instanceof BeanFactoryAware) {
((BeanFactoryAware) bean).setBeanFactory(AbstractAutowireCapableBeanFactory.this);
}
}
}j
前置方法执行
@Override public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName) throws BeansException { Object result = existingBean; for (BeanPostProcessor processor : getBeanPostProcessors()) { Object current = processor.postProcessBeforeInitialization(result, beanName); if (current == null) { return result; } result = current; } return result; }后置方法执行
@Override public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName) throws BeansException { Object result = existingBean; for (BeanPostProcessor processor : getBeanPostProcessors()) { // 执行 spring 容器中 BeanPostProcessor Object current = processor.postProcessAfterInitialization(result, beanName); if (current == null) { return result; } result = current; } return result; }
invokeInitMethods
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#invokeInitMethods- 初始化方法重点看一下
protected void invokeInitMethods(String beanName, final Object bean, @Nullable RootBeanDefinition mbd)
throws Throwable {
// 是否是 InitializingBean
boolean isInitializingBean = (bean instanceof InitializingBean);
// 是否存在方法 "afterPropertiesSet"
if (isInitializingBean && (mbd == null || !mbd.isExternallyManagedInitMethod("afterPropertiesSet"))) {
if (logger.isTraceEnabled()) {
logger.trace("Invoking afterPropertiesSet() on bean with name '" + beanName + "'");
}
if (System.getSecurityManager() != null) {
try {
// 执行 afterPropertiesSet
AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () -> {
((InitializingBean) bean).afterPropertiesSet();
return null;
}, getAccessControlContext());
}
catch (PrivilegedActionException pae) {
throw pae.getException();
}
}
else {
((InitializingBean) bean).afterPropertiesSet();
}
}
if (mbd != null && bean.getClass() != NullBean.class) {
String initMethodName = mbd.getInitMethodName();
if (StringUtils.hasLength(initMethodName) &&
!(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&
!mbd.isExternallyManagedInitMethod(initMethodName)) {
// 自定义的 init method
invokeCustomInitMethod(beanName, bean, mbd);
}
}
}
我们现在的bean不是InitializingBean 会走自定义的init-mthod方法
做一下改造实体对象
public void initMethod() { this.name = "abc"; this.age = 10; }
<bean class="org.source.hot.spring.overview.ioc.bean.init.UserBean" init-method="initMethod">
<property name="age" value="30"/>
</bean>
- 观察
initMethodName会变成 标签属性init-method的内容. 接下来就是通过反射执行方法
在执行方法前将 bean 的信息先做一次截图
如果按照我们代码中的编写方式 bean 的属性会被覆盖
invokeCustomInitMethod
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#invokeCustomInitMethod- 执行 自定义的
init-method方法
protected void invokeCustomInitMethod(String beanName, final Object bean, RootBeanDefinition mbd)
throws Throwable {
// 获取 initMethod 名称
String initMethodName = mbd.getInitMethodName();
Assert.state(initMethodName != null, "No init method set");
// 反射获取方法
Method initMethod = (mbd.isNonPublicAccessAllowed() ?
BeanUtils.findMethod(bean.getClass(), initMethodName) :
ClassUtils.getMethodIfAvailable(bean.getClass(), initMethodName));
// 方法是否存在判断
if (initMethod == null) {
if (mbd.isEnforceInitMethod()) {
throw new BeanDefinitionValidationException("Could not find an init method named '" +
initMethodName + "' on bean with name '" + beanName + "'");
}
else {
if (logger.isTraceEnabled()) {
logger.trace("No default init method named '" + initMethodName +
"' found on bean with name '" + beanName + "'");
}
// Ignore non-existent default lifecycle methods.
return;
}
}
if (logger.isTraceEnabled()) {
logger.trace("Invoking init method '" + initMethodName + "' on bean with name '" + beanName + "'");
}
// 尝试获取接口方法
Method methodToInvoke = ClassUtils.getInterfaceMethodIfPossible(initMethod);
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
ReflectionUtils.makeAccessible(methodToInvoke);
return null;
});
try {
// 反射调用
AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () ->
methodToInvoke.invoke(bean), getAccessControlContext());
}
catch (PrivilegedActionException pae) {
InvocationTargetException ex = (InvocationTargetException) pae.getException();
throw ex.getTargetException();
}
}
else {
try {
// 反射调用
ReflectionUtils.makeAccessible(methodToInvoke);
methodToInvoke.invoke(bean);
}
catch (InvocationTargetException ex) {
throw ex.getTargetException();
}
}
}
getInterfaceMethodIfPossible
org.springframework.util.ClassUtils#getInterfaceMethodIfPossible
public static Method getInterfaceMethodIfPossible(Method method) {
// 是不是 public
// 是不是 接口
if (!Modifier.isPublic(method.getModifiers()) || method.getDeclaringClass().isInterface()) {
return method;
}
// 放入init-method 缓存
return interfaceMethodCache.computeIfAbsent(method, key -> {
Class<?> current = key.getDeclaringClass();
while (current != null && current != Object.class) {
// 当前类的 接口列表
Class<?>[] ifcs = current.getInterfaces();
for (Class<?> ifc : ifcs) {
try {
// 从接口中获取方法
return ifc.getMethod(key.getName(), key.getParameterTypes());
}
catch (NoSuchMethodException ex) {
// ignore
}
}
current = current.getSuperclass();
}
return key;
});
}
跳出这个方法
initializeBean回到下面代码try { populateBean(beanName, mbd, instanceWrapper); exposedObject = initializeBean(beanName, exposedObject, mbd); }org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#doCreateBean其实到此bean已经创建完成可以直接返回了.
再往外层跳
org.springframework.beans.factory.support.AbstractBeanFactory#doGetBeanif (mbd.isSingleton()) { // 判断是否是单例 sharedInstance = getSingleton(beanName, () -> { try { return createBean(beanName, mbd, args); } catch (BeansException ex) { // Explicitly remove instance from singleton cache: It might have been put there // eagerly by the creation process, to allow for circular reference resolution. // Also remove any beans that received a temporary reference to the bean. destroySingleton(beanName); throw ex; } }); bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd); }- 单例对象的创建bean已经完成啦…
其他的两种创建，其本质还是
createBean方法的调用.
// 原型模式创建
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
else {
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, () -> {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
});
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; consider " +
"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
再往外面跳一层 回到 getBean 方法.
终于 getBean 方法底层调用分析结束.
边栏推荐
猜你喜欢
![[Database and SQL study notes] 10. (T-SQL language) functions, stored procedures, triggers](/img/b9/06b90160c962a25a3cc44731afb6dc.png)
随机推荐
MaskDistill - Semantic segmentation without labeled data
MaskDistill-不需要标注数据的语义分割
【数据库和SQL学习笔记】10.（T-SQL语言）函数、存储过程、触发器
Oracle压缩表修改字段的处理方法
11%的参数就能优于Swin，微软提出快速预训练蒸馏方法TinyViT
单片机按键开发库-支持连击、长按等操作
网络信息安全运营方法论 （上）
【ts】typescript高阶：模版字面量类型
ECCV2022 | RU & Google propose zero-shot object detection with CLIP!
十一、拦截器运行原理
神经网络也能像人类利用外围视觉一样观察图像
AIDL详解
【Promise高级用法】实现并行和串行API
CVPR best paper winner Huang Gao's team from Tsinghua University presented the first dynamic network review
Service
IDEA 配置连接数据库报错 Server returns invalid timezone. Need to set ‘serverTimezone‘ property.
[Pytorch study notes] 9. How to evaluate the classification results of the classifier - using confusion matrix, F1-score, ROC curve, PR curve, etc. (taking Softmax binary classification as an example)
用GAN的方法来进行图片匹配！休斯顿大学提出用于文本图像匹配的对抗表示学习，消除模态差异！
CVPR最佳论文得主清华黄高团队提出首篇动态网络综述
dataframe 常用操作
