Flowable boundary timer

---

Preface

Use boundary timer , Remind the unapproved tasks in advance , If users borrow books , The day before the return time , Remind users .

One 、 Process design

The flow chart is as follows

Set the start time on the reminder event , Use ${startTime}.

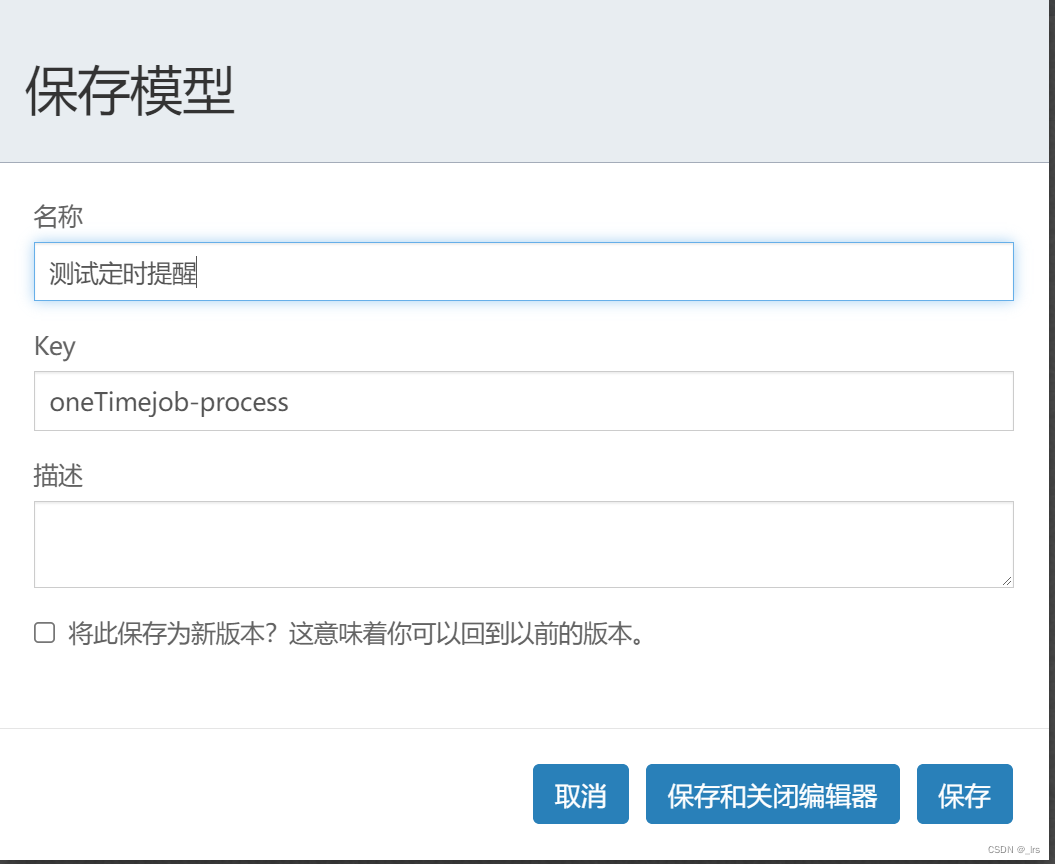

Two 、xml file

xml The documents are as follows ：

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:flowable="http://flowable.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.flowable.org/processdef" exporter="Flowable Open Source Modeler" exporterVersion="6.7.2">
  <process id="oneTimejob-process" name=" Test timing reminder " isExecutable="true">
    <startEvent id="startEvent1" name=" Start " flowable:formFieldValidation="true"></startEvent>
    <endEvent id="sid-86F81954-65D0-4E2A-8DFB-766D26AE15E0" name=" end "></endEvent>
    <sequenceFlow id="sid-5CF78305-333A-45DA-AC71-5833231A2602" sourceRef="sid-45452B0C-4C8B-4AEC-AAF1-C869D11CEFB6" targetRef="sid-86F81954-65D0-4E2A-8DFB-766D26AE15E0"></sequenceFlow>
    <userTask id="sid-45452B0C-4C8B-4AEC-AAF1-C869D11CEFB6" name=" The return " flowable:assignee="admin" flowable:formFieldValidation="true">
      <extensionElements>
        <modeler:activiti-idm-assignee xmlns:modeler="http://flowable.org/modeler"><![CDATA[true]]></modeler:activiti-idm-assignee>
        <modeler:assignee-info-email xmlns:modeler="http://flowable.org/modeler"><![CDATA[test-[email protected]-domain.tld]]></modeler:assignee-info-email>
        <modeler:assignee-info-firstname xmlns:modeler="http://flowable.org/modeler"><![CDATA[admin]]></modeler:assignee-info-firstname>
        <modeler:assignee-info-lastname xmlns:modeler="http://flowable.org/modeler"><![CDATA[admin]]></modeler:assignee-info-lastname>
        <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
      </extensionElements>
    </userTask>
    <sequenceFlow id="sid-2452D23F-5DB9-4A2B-AA37-167D0EEE9889" sourceRef="startEvent1" targetRef="sid-45452B0C-4C8B-4AEC-AAF1-C869D11CEFB6"></sequenceFlow>
    <boundaryEvent id="sid-D6DB3545-D033-40A7-99D9-59FA84328C76" name=" remind " attachedToRef="sid-45452B0C-4C8B-4AEC-AAF1-C869D11CEFB6" cancelActivity="true">
      <extensionElements>
        <flowable:executionListener event="start" class="cn.ac.iscas.pdm.biz.rest.test.FlowableEventListenerTest"></flowable:executionListener>
      </extensionElements>
      <timerEventDefinition>
        <timeDate>${
    startTime}</timeDate>
      </timerEventDefinition>
    </boundaryEvent>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_oneTimejob-process">
    <bpmndi:BPMNPlane bpmnElement="oneTimejob-process" id="BPMNPlane_oneTimejob-process">
      <bpmndi:BPMNShape bpmnElement="startEvent1" id="BPMNShape_startEvent1">
        <omgdc:Bounds height="30.0" width="30.0" x="100.0" y="160.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-86F81954-65D0-4E2A-8DFB-766D26AE15E0" id="BPMNShape_sid-86F81954-65D0-4E2A-8DFB-766D26AE15E0">
        <omgdc:Bounds height="28.0" width="28.0" x="450.0" y="161.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-45452B0C-4C8B-4AEC-AAF1-C869D11CEFB6" id="BPMNShape_sid-45452B0C-4C8B-4AEC-AAF1-C869D11CEFB6">
        <omgdc:Bounds height="80.0" width="100.0" x="255.0" y="135.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-D6DB3545-D033-40A7-99D9-59FA84328C76" id="BPMNShape_sid-D6DB3545-D033-40A7-99D9-59FA84328C76">
        <omgdc:Bounds height="31.0" width="31.0" x="339.97943327875964" y="196.69537188961235"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="sid-2452D23F-5DB9-4A2B-AA37-167D0EEE9889" id="BPMNEdge_sid-2452D23F-5DB9-4A2B-AA37-167D0EEE9889" flowable:sourceDockerX="15.0" flowable:sourceDockerY="15.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="129.94999949366624" y="175.0"></omgdi:waypoint>
        <omgdi:waypoint x="254.99999999993574" y="175.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-5CF78305-333A-45DA-AC71-5833231A2602" id="BPMNEdge_sid-5CF78305-333A-45DA-AC71-5833231A2602" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
        <omgdi:waypoint x="354.95000000000005" y="175.0"></omgdi:waypoint>
        <omgdi:waypoint x="450.0" y="175.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</definitions>

3、 ... and 、 Event listener

Custom listener , Realization FlowableEventListener Interface

@Component
@Slf4j
public class FlowableEventListenerTest implements FlowableEventListener {

    @Override
    public void onEvent(FlowableEvent event) {

        try {

            //FlowableEntityEventImpl  event
            if (event instanceof FlowableEntityEventImpl) {

                FlowableEntityEventImpl engineEvent = (FlowableEntityEventImpl) event;
                JobEntityImpl job = (JobEntityImpl) engineEvent.getEntity();
                // Get task details
                String name = job.getElementName();
                String processInstanceId = job.getProcessInstanceId();

                System.out.println(name);
                System.out.println(processInstanceId);

            } else {

                // Other events
            }
        } catch (Exception e) {

            log.error(" Error executing event listener ,error{}", e);
        }
    }

    @Override
    public boolean isFailOnException() {

        return false;
    }

    @Override
    public boolean isFireOnTransactionLifecycleEvent() {

        return false;
    }

    @Override
    public String getOnTransaction() {

        return null;
    }
}

Four 、 Register listener

@Configuration
public class GlobalEventListenerConfig {

    @Autowired
    private RuntimeService runtimeService;

    @PostConstruct
    public void addListener() {

        // The second parameter indicates that only the event of successful task execution is processed , The absence of a second parameter indicates processing  FlowableEngineEventType  All events for
        runtimeService.addEventListener(new FlowableEventListenerTest(), FlowableEngineEventType.JOB_EXECUTION_SUCCESS);
    }
}

5、 ... and 、 test

·1、 Loading process

	@Test
    public void createDeploymentTest() {

        Deployment deployment = repositoryService.createDeployment()
                .addClasspathResource(" Test timing reminder .bpmn20.xml")
                .deploy();
        System.out.println(deployment.getId());
    }

2、 Start process

	@Test
    public void startOneTimejobProcessDefinition() {

        Map<String, Object> variables = new HashMap<String, Object>();
        // Scheduled task start time
        variables.put("startTime", "2022-06-26T22:40:00");
        // Through process key Boot instance
        ProcessInstance processInstance =
                runtimeService.startProcessInstanceByKey("oneTimejob-process", variables);
        System.out.println(processInstance.getName());
    }

When the scheduled task start time comes , If the task has not been approved , Will trigger the logic of the listener .
