[opencv] [image gradient]

Let's calculate the gradient of each pixel in the image
We can use first-order Sobel Operator and Scharr operator , And use secondary Laplace operator , The experiment is as follows ：

The original image is ：

The gradient of the first-order operator is calculated as follows ：
Find the gradient of each pixel of the image . Calculated above sobel The operator can be approximated as X and Y Directional gradient , So the total gradient is ：
G = (Gx^2 + Gy ^2) ^ 0.5 Or it can be approximately calculated as
G = |Gx| + |Gy|

Second order operator , The gradient can be obtained directly .

import numpy as np
import random
import cv2
import matplotlib.pyplot as plt


#  Show the image , Encapsulate as a function
def cv_show_image(name, img):
    cv2.imshow(name, img)
    cv2.waitKey(0)  #  Waiting time , In milliseconds ,0 Represents any key termination
    cv2.destroyAllWindows()


img = cv2.imread('images/yuan.png')  #  Read the original image
print(img.shape)

# Sobel operator , For example, the gradient in the right direction
# [[-1, 0, 1],
# Gx = [-2, 0, 2],
# [-1, 0, 1]]
#  For example, it is a downward gradient
# [[-1, -2, -1],
# Gy = [0, 0, 0],
# [1, 2, 1]]
#  It is equivalent to subtracting the pixel value on the left from the pixel value on the right
# dst = cv2.Sobel(src, ddepth, dx, dy, ksize)
# src:  Input the original image
# ddepth:  The depth of the image , It's usually -1
# dx and dy:  Horizontal and vertical
# ksize:  The size of the convolution kernel

#  Let's look at the results of operations in different directions
#  The result of pixel subtraction is positive and negative , If there is a negative number ,opencv The default truncation is 0
#  But what we want to see is the size of the difference , Even negative numbers have different values , Cannot be smeared 0 No difference , So we need to save negative numbers , Negative calculation results can be retained .
sobel_x = cv2.Sobel(img, cv2.CV_64F, 1, 0, 3)  #  The image is converted to a form with a negative number , Because the number of digits is higher .
sobel_x_abs = cv2.convertScaleAbs(sobel_x)  #  Take the absolute value , Keep our difference value
sobel_y = cv2.Sobel(img, cv2.CV_64F, 0 ,1, 3)  #  The image is converted to a form with a negative number , Because the number of digits is higher .
sobel_y_abs = cv2.convertScaleAbs(sobel_y)  #  Take the absolute value , Keep our difference value


#  Find the gradient of each pixel of the image . Calculated above sobel The operator can be approximated as X and Y Directional gradient , So the total gradient is ：
# G = (Gx^2 + Gy^2)^0.5  Or it can be approximately calculated as
# G = |Gx| + |Gy|
sobel_xy_add = cv2.addWeighted(sobel_x_abs, 0.5, sobel_y_abs, 0.5, 0)  #  Use x + y To find the gradient .
sobel_xy_abs_add = cv2.convertScaleAbs(sobel_xy_add)  #  Take the absolute value , Keep our difference value

#  The following method is not recommended , This effect is not very good .
sobel_xy = cv2.Sobel(img, cv2.CV_64F, 1, 1, 3)  #  The image is converted to a form with a negative number , Because the number of digits is higher .
sobel_xy_abs = cv2.convertScaleAbs(sobel_xy)  #  Take the absolute value , Keep our difference value

ret = np.hstack((sobel_x, sobel_y, sobel_xy_add, sobel_xy))
cv2.imshow('sobel_src', ret)
cv2.waitKey(0)
cv2.destroyAllWindows()

ret = np.hstack((sobel_x_abs, sobel_y_abs, sobel_xy_abs_add, sobel_xy_abs))
cv2.imshow('sobel_abs', ret)
cv2.waitKey(0)
cv2.destroyAllWindows()



#  Two other operators for finding image gradient , This and Sobel Operators are very similar , Or the degree of emphasis is different
# Scharr  operator
# [[-3, 0, 3],
# Gx = [-10, 0, 10],
# [-3, 0, 3]]
#  For example, it is a downward gradient
# [[-3, -10, -3],
# Gy = [0, 0, 0],
# [3, 10, 3]]
#  Let's look at the results of operations in different directions
#  The result of pixel subtraction is positive and negative , If there is a negative number ,opencv The default truncation is 0
#  But what we want to see is the size of the difference , Even negative numbers have different values , Cannot be smeared 0 No difference , So we need to save negative numbers , Negative calculation results can be retained .
scharr_x = cv2.Scharr(img, cv2.CV_64F, 1, 0, 3)  #  The image is converted to a form with a negative number , Because the number of digits is higher .
scharr_x_abs = cv2.convertScaleAbs(scharr_x)  #  Take the absolute value , Keep our difference value
scharr_y = cv2.Scharr(img, cv2.CV_64F, 0 ,1, 3)  #  The image is converted to a form with a negative number , Because the number of digits is higher .
scharr_y_abs = cv2.convertScaleAbs(scharr_y)  #  Take the absolute value , Keep our difference value


#  Find the gradient of each pixel of the image . Calculated above sobel The operator can be approximated as X and Y Directional gradient , So the total gradient is ：
# G = (Gx^2 + Gy^2)^0.5  Or it can be approximately calculated as
# G = |Gx| + |Gy|
scharr_xy_add = cv2.addWeighted(scharr_x_abs, 0.5, scharr_y_abs, 0.5, 0)  #  Use x + y To find the gradient .
scharr_xy_abs_add = cv2.convertScaleAbs(scharr_xy_add)  #  Take the absolute value , Keep our difference value

ret = np.hstack((scharr_x, scharr_y, scharr_xy_add))
cv2.imshow('scharr_src', ret)
cv2.waitKey(0)
cv2.destroyAllWindows()

ret = np.hstack((scharr_x_abs, scharr_y_abs, scharr_xy_abs_add))
cv2.imshow('scharr_abs', ret)
cv2.waitKey(0)
cv2.destroyAllWindows()


# Laplace operator
# Laplace The operator can approximately calculate the second derivative of the image , It has rotation invariance , That is, edges in all directions can be detected .
# Laplace There are two kinds of operators , Consider separately 4- Adjacency （D4） and 8- Adjacency （D8） Second order differential of two neighborhoods .
#  For example, one 3x3 Of 4- Adjacency is
#  for example  4- Adjacency
# [[0, -1, 0],
# [-1, 4, -1],
# [ 0, -1, 0]]
#  for example  8- Adjacency
# [[-1, -1, -1],
# [ -1, 8, -1],
# [ -1, -1, -1]]
Laplacian = cv2.Laplacian(img, cv2.CV_64F)  #  Because it is second-order , No, x and y The concept of direction
Laplacian_abs = cv2.convertScaleAbs(Laplacian)  #  Take the absolute value , Keep our difference value
cv_show_image('Laplacian', Laplacian)


#  Finally, summarize the effects of the three methods
ret = np.hstack((sobel_xy_abs_add, scharr_xy_abs_add, Laplacian_abs))
cv2.imshow('all_here', ret)
cv2.waitKey(0)
cv2.destroyAllWindows()

The effect is as follows ：

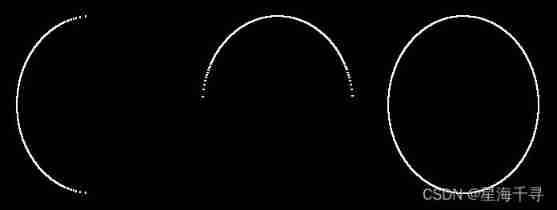

Use Sobel operator , The effect of not adding absolute value operation ：

Use Sobel operator , Add the effect of absolute value operation ：

Use Scharr operator , The effect of not adding absolute value operation ：

Use Scharr operator , Add the effect of absolute value operation ：

Use Laplace operator , The effect of adding absolute value and not adding absolute value

Finally, add the absolute value to each xy Summary of directions , The effect is as follows ：

The overall effect shows , The effect of using second-order operators is better .
