One-arm routing experiment and three-layer switch experiment

I. One-arm routing experiment

Experimental steps:

1. Settingspc1,pc2,pc3ipAddress and Subnet Mask

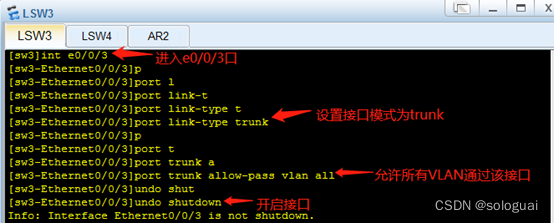

2. Create in the switchVLAN, add the port to VLANMedium

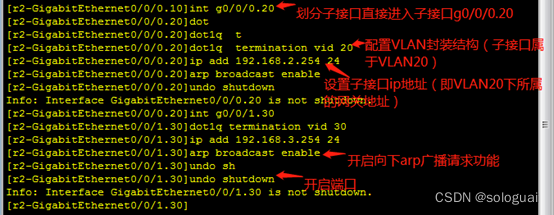

3. Configure the router

4. Test results

Pc1 ping pc2

Pc1 ping pc3

Pc2 ping pc3

The experiment was successful

Layer 2 and Layer 3 switch experiments

1. Set the IP addresses and subnet masks of the three hosts

2. Configuring a Layer 2 switch

3. Create vlan10, vlan20, and vlan30 on the Layer 3 switch respectively, and configure the ip addresses of their virtual interfaces (that is, the gateway addresses corresponding to the three hosts)

4. Test results

pc1 ping pc2

pc1 ping pc3

pc2 ping pc3
