Quick Start to Drools Rule Engine (1)
2022-08-05 06:44:00 【User Nickname 23】
目录
二、droolsThe specific steps for the development and implementation of the rule engine are as follows:
第一步:创建maven项目droolsSpring,在创建好的项目pom.xml文件中添加drools依赖包
第二步:根据drools要求在maven项目目录下创建?resources/META-INF/kmodule.xml
第四步:创建规则文件resources/rules/score-rules.drl,规则文件的内容如下:
一、Drools环境集成
Integrated use in the projectdrools时,Can be used independently or integratedspring使用,If it is used alone, it is directly importedmaven依赖包:如下
<dependency>
<groupId>org.kie</groupId>
<artifactId>kie-spring</artifactId>
<version>7.68.0.Final</version>
</dependency>
<dependency>
<groupId>org.drools</groupId>
<artifactId>drools-compiler</artifactId>
<version>7.68.0.Final</version>
</dependency>
If the development tools used are IDEA,那么在file->setting目录下
点击pluginsSearch and install in the plugin marketdrools插件 ,如图

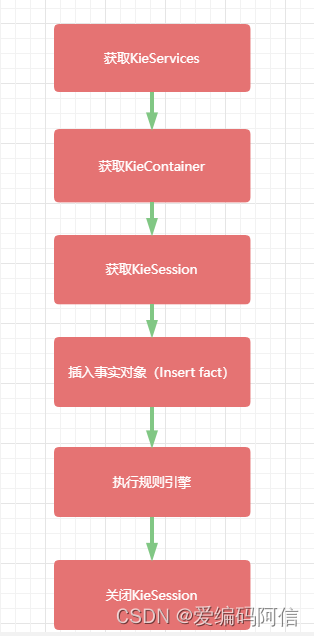

二、droolsThe specific steps for the development and implementation of the rule engine are as follows:
三、drools快速入门
业务场景描述
The rules of bonus points corresponding to the amount consumed by the user are as follows:
//消费100元以下 不加分
//消费100元-500元 加100分
//消费500元-1000元 加500分
//消费1000元以上 加1000分
四、开发实现
第一步:创建maven项目droolsSpring,在创建好的项目pom.xml文件中添加drools依赖包
第二步:根据drools要求在maven项目目录下创建resources/META-INF/kmodule.xml
There needs to be a configuration file that tells the code the rules filedrl在哪里,在drools中这个文件就是kmodule.xml
<?xml version="1.0" encoding="UTF-8"?>
<kmodule xmlns="http://jboss.org/kie/6.0.0/kmodule">
<!--
name:指定kbase的名称,可以任意,但是必须唯一
packages:指定规则文件的目录,需要根据实际情况填写,否则无法加载到规则文件
default:指定当前kbase是否为默认
-->
<kbase name="SimpleRuleKBase" packages="rules">
<!--
name:指定ksession的名称,可以任意,但是必须唯一
default:指定当前ksession是否为默认
-->
<ksession name="simpleRuleKSession"/>
</kbase>
</kmodule>
注意:The names and locations in the configuration file are fixed,不能更改
Kmodule中可以包含一个到多个kbase,分别对应drl的规则文件.
kbase需要一个唯一的name,可以取任意字符串.
packages为drl文件所在resource目录下的路径.注意分区drl文件中的package与此处的package不一定相同.多个包用逗号分隔,默认情况下会扫描resources目录下的所有(包含子目录)规则文件.
kbase的default属性,标示当前KieBase是不是默认的,If it is the default, it can be found directly without the nameKieBase,但每个moduleThere can be at most one defaultKieBase.
kbase下面可以有一个或多个ksession,ksession的name属性必须设置,且必须唯一.
第三步:创建订单实体类Order
package com.hx.rules.entity;
import lombok.Data;
@Data
public class Order {
/**
* 订单金额
*/
private int amount;
/**
* 积分
*/
private int score;
@Override
public String toString() {
return "Order{" +
"amount=" + amount +
", score=" + score +
'}';
}
}
第四步:创建规则文件resources/rules/score-rules.drl,规则文件的内容如下:
package rules;
import com.hx.rules.entity.Order;
//100No points will be added for the following
rule "score_1" //The name needs to be unique
when
$order:Order(amount < 100);
then
$order.setScore(0);
System.out.println("触发规则,100No points will be added for the following");
end
//100元-500元 加100分
rule "score_2"
when
$order:Order(100 < amount && amount< 500)
then
$order.setScore(100);
System.out.println("触发规则,100元-500元 加100分");
end
//500元-1000元 加500分
rule "score_3"
when
$order:Order(500 < amount && amount < 1000)
then
$order.setScore(500);
System.out.println("触发规则,500元-1000元 加500分");
end
//1000元以上 加1000分
rule "score_4"
when
$order:Order(1000 < amount)
then
$order.setScore(1000);
System.out.println("触发规则,500元-1000元 加500分");
end
第五步:编写测试类TestDrools.
情况一:module文件中kbaseSpecify a specific name,并且default设置为true,测试类的代码如下:
package com.hx.rules;
import com.hx.rules.entity.Order;
import org.junit.Test;
import org.kie.api.KieBase;
import org.kie.api.KieServices;
import org.kie.api.runtime.KieContainer;
import org.kie.api.runtime.KieSession;
public class TestDrools {
@Test
public void test() {
//第一步 获取KieServices
KieServices kieServices = KieServices.Factory.get();
//第二步获取kieContainer
KieContainer kieClasspathContainer = kieServices.getKieClasspathContainer();
//第三步获取kieSession
KieSession simpleRuleKSession = kieClasspathContainer.newKieSession();
//Create a new fact object
Order order = new Order();
order.setAmount(235);
//第四步 Insert a fact object into session中
simpleRuleKSession.insert(order);
//第五步 执行规则引擎
simpleRuleKSession.fireAllRules();
//第六步 Shut down the rules engine
simpleRuleKSession.dispose();
System.out.println("规则执行完成,关闭规则");
}
}
注意:
KieContainer kieClasspathContainer = kieServices.getKieClasspathContainer(); //第三步获取kieSession KieSession simpleRuleKSession = kieClasspathContainer.newKieSession();
in both ends of the codecontainer和kiesessionWireless designationname也能查找到KieBase
情况二:module文件中kbaseSpecify a specific name,default未设置或者设置为false,测试类的代码如下:
package com.hx.rules;
import com.hx.rules.entity.Order;
import org.junit.Test;
import org.kie.api.KieBase;
import org.kie.api.KieServices;
import org.kie.api.runtime.KieContainer;
import org.kie.api.runtime.KieSession;
public class TestDrools {
@Test
public void test() {
//第一步 获取KieServices
KieServices kieServices = KieServices.Factory.get();
//第二步获取kieContainer
KieContainer kieClasspathContainer = kieServices.getKieClasspathContainer("SimpleRuleKBase");
//第三步获取kieSession
KieSession simpleRuleKSession = kieClasspathContainer.newKieSession("simpleRuleKSession");
//Create a new fact object
Order order = new Order();
order.setAmount(235);
//第四步 Insert a fact object into session中
simpleRuleKSession.insert(order);
//第五步 执行规则引擎
simpleRuleKSession.fireAllRules();
//第六步 Shut down the rules engine
simpleRuleKSession.dispose();
System.out.println("规则执行完成,关闭规则");
}
}
The test code is written one by one according to the steps described in the annotations,Executing the code yields the following result:
Seeing the corresponding rule output indicates that the case test is successful
