canvas2d
effect
Be careful

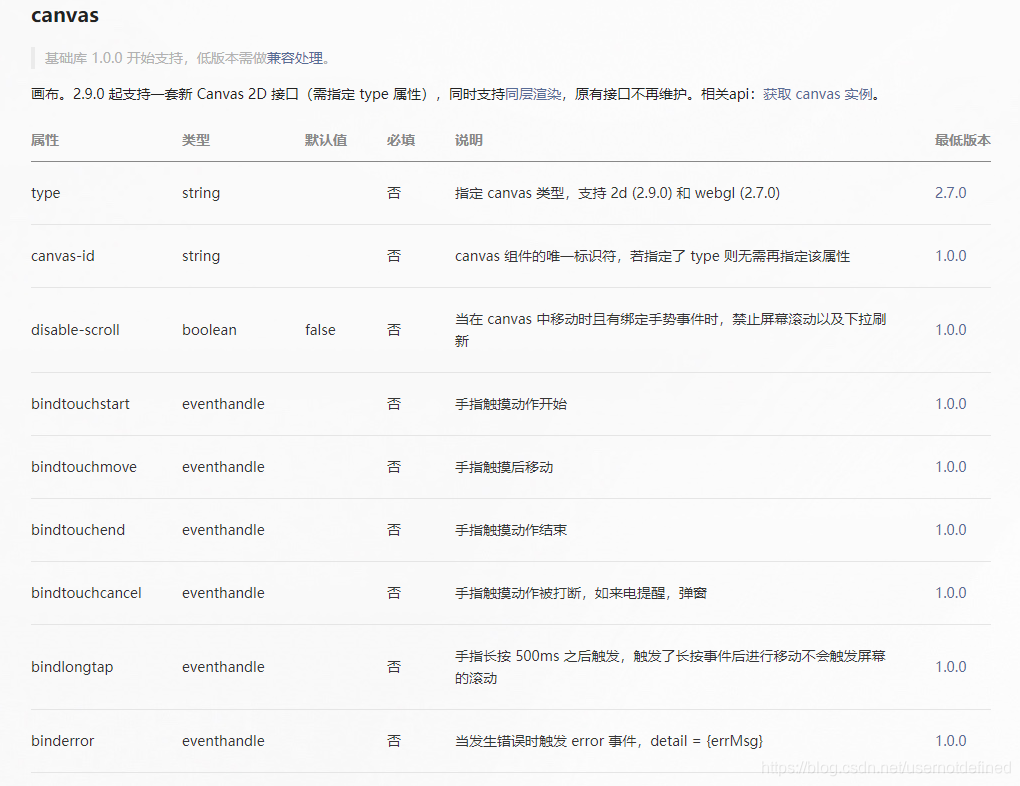

- canvas2d Actually sum web Of canvas equally , You can refer to web Of canvas Of api
- canvas 2d No, draw() Method
- Empty notes can be used clearRect() Method
- No, setFillStyle Method , Only fillStyle attribute
- No, setStrokeStyle Method , Only strokeStyle attribute
- No, setGlobalAlpha Method , As long as there is globalAlpha attribute

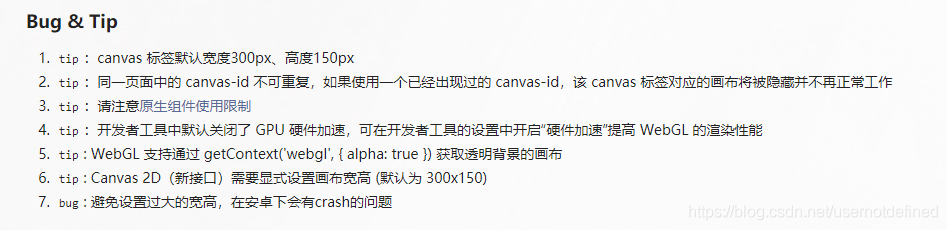

- canvas It is recommended to set the width for initialization 、 high , Although there is a default value, the actual demand is not necessarily the case
Source code （mpx frame ）
<template>
<view class="wrapper">
<view class="handBtn">
<!-- Black pen -->
<image
catchtap="selectColorEvent"
wx:if="{
{selectColor === 'black'}}"
src="../assets/images/color_black_selected.png"
class="{
{ selectColor === 'black' ? 'color_select' : '' }} black-select"
data-color="black"
data-color-value="#1A1A1A"
/>
<image
catchtap="selectColorEvent"
wx:if="{
{selectColor !== 'black'}}"
src="../assets/images/color_black.png"
class="{
{ selectColor === 'black' ? 'color_select' : '' }} black-select"
data-color="black"
data-color-value="#1A1A1A"
/>
<!-- Red pen -->
<image
catchtap="selectColorEvent"
wx:if="{
{selectColor === 'red'}}"
src="../assets/images/color_red_selected.png"
class="{
{ selectColor === 'red' ? 'color_select' : '' }} red-select"
data-color="red"
data-color-value="#ca262a"
/>
<image
wx:if="{
{selectColor !== 'red'}}"
catchtap="selectColorEvent"
src="../assets/images/color_red.png"
class="{
{ selectColor === 'red' ? 'color_select' : '' }} red-select"
data-color="red"
data-color-value="#ca262a"
/>
<button catchtap="retDraw" class="delBtn"> rewrite </button>
<button catchtap="subCanvas" class="subBtn"> complete </button>
</view>
<view class="handCenter">
<canvas
class="handWriting"
disable-scroll="true"
bindtouchstart="uploadScaleStart"
bindtouchmove="uploadScaleMove"
bindtouchend="uploadScaleEnd"
type="2d"
id="myCanvas"
></canvas>
</view>
<view class="handRight">
<view class="handTitle"> Handwriting board </view>
</view>
</view>
</template>
<script>
import {
createPage } from '@mpxjs/core'
const app = getApp()
/* * canvas 2d No, draw() Method * Empty notes can be used clearRect() Method * No, setFillStyle Method , Only fillStyle attribute * No, setStrokeStyle Method , Only strokeStyle attribute * No, setGlobalAlpha Method , As long as there is globalAlpha attribute */
createPage({
data: {
canvasName: 'myCanvas',
ctx: '', // Context instance
canvas: '', // Canvas example
canvasWidth: 0,
canvasHeight: 0,
transparent: 1, // transparency
selectColor: 'black',
lineColor: '#1A1A1A', // Color
lineSize: 1.5, // Note multiple
lineMin: 0.5, // Minimum stroke radius
lineMax: 4, // Maximum stroke radius
pressure: 1, // Default pressure
smoothness: 60, // Smoothness , use 60 To calculate the speed
currentPoint: {
},
currentLine: [], // Current line
firstTouch: true, // First trigger
radius: 1, // Draw the radius of the circle
cutArea: {
top: 0, right: 0, bottom: 0, left: 0 }, // Cutting area
bethelPoint: [], // Save all lines The resulting Bessel point ;
lastPoint: 0,
chirography: [], // Handwriting
currentChirography: {
}, // Current handwriting
linePrack: [] // Scribe track , Generate the actual point of the line
},
onLoad() {
let canvasName = this.data.canvasName
// let ctx = wx.createCanvasContext(canvasName)
const query = wx.createSelectorQuery()
query
.select('#myCanvas')
.fields({
node: true, size: true })
.exec(res => {
const canvas = res[0].node
const ctx = canvas.getContext('2d')
this.setData({
ctx: ctx,
canvas: canvas
})
query
.select('.handCenter')
.boundingClientRect(rect => {
this.setData({
canvasWidth: rect.width,
canvasHeight: rect.height
})
canvas.width = rect.width
canvas.height = rect.height
/* take canvas The background is set to white background , Not set up Derived canvas The background is transparent */
// console.log(this, 'hahah');
this.setCanvasBg('#fff')
})
.exec()
})
},
methods: {
// Rewriting events ( Initialize canvas )
retDraw() {
this.data.ctx.clearRect(0, 0, 700, 730)
// Set up canvas background
this.setCanvasBg('#fff')
},
// Completion event
subCanvas() {
// Call Preview
this.previewCanvasImg()
},
// Draw a line between two points ; Parameter is :line, Will draw the two closest starting points ;
pointToLine(line) {
this.calcBethelLine(line)
return
},
// The handwriting begins
uploadScaleStart(e) {
if (e.type != 'touchstart') return false
let ctx = this.data.ctx
ctx.fillStyle = this.data.lineColor // Initial line set color
ctx.globalAlpha = this.data.transparent // Set translucency
let currentPoint = {
x: e.touches[0].x,
y: e.touches[0].y
}
let currentLine = this.data.currentLine
currentLine.unshift({
time: new Date().getTime(),
dis: 0,
x: currentPoint.x,
y: currentPoint.y
})
this.setData({
currentPoint
// currentLine
})
if (this.data.firstTouch) {
this.setData({
cutArea: {
top: currentPoint.y,
right: currentPoint.x,
bottom: currentPoint.y,
left: currentPoint.x
},
firstTouch: false
})
}
this.pointToLine(currentLine)
},
// Handwriting movement
uploadScaleMove(e) {
if (e.type != 'touchmove') return false
if (e.cancelable) {
// Determine if the default behavior has been disabled
if (!e.defaultPrevented) {
e.preventDefault()
}
}
let point = {
x: e.touches[0].x,
y: e.touches[0].y
}
// Test tailoring
if (point.y < this.data.cutArea.top) {
this.data.cutArea.top = point.y
}
if (point.y < 0) this.data.cutArea.top = 0
if (point.x > this.data.cutArea.right) {
this.data.cutArea.right = point.x
}
if (this.data.canvasWidth - point.x <= 0) {
this.data.cutArea.right = this.data.canvasWidth
}
if (point.y > this.data.cutArea.bottom) {
this.data.cutArea.bottom = point.y
}
if (this.data.canvasHeight - point.y <= 0) {
this.data.cutArea.bottom = this.data.canvasHeight
}
if (point.x < this.data.cutArea.left) {
this.data.cutArea.left = point.x
}
if (point.x < 0) this.data.cutArea.left = 0
this.setData({
lastPoint: this.data.currentPoint,
currentPoint: point
})
let currentLine = this.data.currentLine
currentLine.unshift({
time: new Date().getTime(),
dis: this.distance(this.data.currentPoint, this.data.lastPoint),
x: point.x,
y: point.y
})
// this.setData({
// currentLine
// })
this.pointToLine(currentLine)
},
// The handwriting is over
uploadScaleEnd(e) {
if (e.type != 'touchend') return 0
let point = {
x: e.changedTouches[0].x,
y: e.changedTouches[0].y
}
this.setData({
lastPoint: this.data.currentPoint,
currentPoint: point
})
let currentLine = this.data.currentLine
currentLine.unshift({
time: new Date().getTime(),
dis: this.distance(this.data.currentPoint, this.data.lastPoint),
x: point.x,
y: point.y
})
// this.setData({
// currentLine
// })
if (currentLine.length > 2) {
var info =
(currentLine[0].time - currentLine[currentLine.length - 1].time) / currentLine.length
//$("#info").text(info.toFixed(2));
}
// End in one stroke , Save the coordinate points of the handwriting , Empty , Current handwriting
// Add judgment whether it is in the handwriting area ;
this.pointToLine(currentLine)
var currentChirography = {
lineSize: this.data.lineSize,
lineColor: this.data.lineColor
}
var chirography = this.data.chirography
chirography.unshift(currentChirography)
this.setData({
chirography
})
var linePrack = this.data.linePrack
linePrack.unshift(this.data.currentLine)
this.setData({
linePrack,
currentLine: []
})
},
// How to calculate interpolation ;
calcBethelLine(line) {
if (line.length <= 1) {
line[0].r = this.data.radius
return
}
let x0,
x1,
x2,
y0,
y1,
y2,
r0,
r1,
r2,
len,
lastRadius,
dis = 0,
time = 0,
curveValue = 0.5
if (line.length <= 2) {
x0 = line[1].x
y0 = line[1].y
x2 = line[1].x + (line[0].x - line[1].x) * curveValue
y2 = line[1].y + (line[0].y - line[1].y) * curveValue
//x2 = line[1].x;
//y2 = line[1].y;
x1 = x0 + (x2 - x0) * curveValue
y1 = y0 + (y2 - y0) * curveValue
} else {
x0 = line[2].x + (line[1].x - line[2].x) * curveValue
y0 = line[2].y + (line[1].y - line[2].y) * curveValue
x1 = line[1].x
y1 = line[1].y
x2 = x1 + (line[0].x - x1) * curveValue
y2 = y1 + (line[0].y - y1) * curveValue
}
// From the calculation formula , The three points are (x0,y0),(x1,y1),(x2,y2) ;(x1,y1) This is the control point , The control point does not fall on the curve ; actually , This point will also be the actual point obtained by handwriting , But it falls on the curve
len = this.distance({
x: x2, y: y2 }, {
x: x0, y: y0 })
lastRadius = this.data.radius
for (let n = 0; n < line.length - 1; n++) {
dis += line[n].dis
time += line[n].time - line[n + 1].time
if (dis > this.data.smoothness) break
}
this.setData({
radius:
Math.min((time / len) * this.data.pressure + this.data.lineMin, this.data.lineMax) *
this.data.lineSize
})
line[0].r = this.data.radius
// Calculate the handwriting radius ;
if (line.length <= 2) {
r0 = (lastRadius + this.data.radius) / 2
r1 = r0
r2 = r1
//return;
} else {
r0 = (line[2].r + line[1].r) / 2
r1 = line[1].r
r2 = (line[1].r + line[0].r) / 2
}
let n = 5
let point = []
for (let i = 0; i < n; i++) {
let t = i / (n - 1)
let x = (1 - t) * (1 - t) * x0 + 2 * t * (1 - t) * x1 + t * t * x2
let y = (1 - t) * (1 - t) * y0 + 2 * t * (1 - t) * y1 + t * t * y2
let r = lastRadius + ((this.data.radius - lastRadius) / n) * i
point.push({
x: x, y: y, r: r })
if (point.length == 3) {
let a = this.ctaCalc(
point[0].x,
point[0].y,
point[0].r,
point[1].x,
point[1].y,
point[1].r,
point[2].x,
point[2].y,
point[2].r
)
a[0].color = this.data.lineColor
// let bethelPoint = this.data.bethelPoint;
// console.log(a)
// console.log(this.data.bethelPoint)
// bethelPoint = bethelPoint.push(a);
this.bethelDraw(a, 1)
point = [{
x: x, y: y, r: r }]
}
}
this.setData({
currentLine: line
})
},
// Find the distance between two points
distance(a, b) {
let x = b.x - a.x
let y = b.y - a.y
return Math.sqrt(x * x + y * y)
},
ctaCalc(x0, y0, r0, x1, y1, r1, x2, y2, r2) {
let a = [],
vx01,
vy01,
norm,
n_x0,
n_y0,
vx21,
vy21,
n_x2,
n_y2
vx01 = x1 - x0
vy01 = y1 - y0
norm = Math.sqrt(vx01 * vx01 + vy01 * vy01 + 0.0001) * 2
vx01 = (vx01 / norm) * r0
vy01 = (vy01 / norm) * r0
n_x0 = vy01
n_y0 = -vx01
vx21 = x1 - x2
vy21 = y1 - y2
norm = Math.sqrt(vx21 * vx21 + vy21 * vy21 + 0.0001) * 2
vx21 = (vx21 / norm) * r2
vy21 = (vy21 / norm) * r2
n_x2 = -vy21
n_y2 = vx21
a.push({
mx: x0 + n_x0, my: y0 + n_y0, color: '#1A1A1A' })
a.push({
c1x: x1 + n_x0,
c1y: y1 + n_y0,
c2x: x1 + n_x2,
c2y: y1 + n_y2,
ex: x2 + n_x2,
ey: y2 + n_y2
})
a.push({
c1x: x2 + n_x2 - vx21,
c1y: y2 + n_y2 - vy21,
c2x: x2 - n_x2 - vx21,
c2y: y2 - n_y2 - vy21,
ex: x2 - n_x2,
ey: y2 - n_y2
})
a.push({
c1x: x1 - n_x2,
c1y: y1 - n_y2,
c2x: x1 - n_x0,
c2y: y1 - n_y0,
ex: x0 - n_x0,
ey: y0 - n_y0
})
a.push({
c1x: x0 - n_x0 - vx01,
c1y: y0 - n_y0 - vy01,
c2x: x0 + n_x0 - vx01,
c2y: y0 + n_y0 - vy01,
ex: x0 + n_x0,
ey: y0 + n_y0
})
a[0].mx = a[0].mx.toFixed(1)
a[0].mx = parseFloat(a[0].mx)
a[0].my = a[0].my.toFixed(1)
a[0].my = parseFloat(a[0].my)
for (let i = 1; i < a.length; i++) {
a[i].c1x = a[i].c1x.toFixed(1)
a[i].c1x = parseFloat(a[i].c1x)
a[i].c1y = a[i].c1y.toFixed(1)
a[i].c1y = parseFloat(a[i].c1y)
a[i].c2x = a[i].c2x.toFixed(1)
a[i].c2x = parseFloat(a[i].c2x)
a[i].c2y = a[i].c2y.toFixed(1)
a[i].c2y = parseFloat(a[i].c2y)
a[i].ex = a[i].ex.toFixed(1)
a[i].ex = parseFloat(a[i].ex)
a[i].ey = a[i].ey.toFixed(1)
a[i].ey = parseFloat(a[i].ey)
}
return a
},
bethelDraw(point, is_fill, color) {
let ctx = this.data.ctx
ctx.beginPath()
ctx.moveTo(point[0].mx, point[0].my)
if (undefined != color) {
ctx.fillStyle = color
ctx.strokeStyle = color
} else {
ctx.fillStyle = point[0].color
ctx.strokeStyle = point[0].color
}
for (let i = 1; i < point.length; i++) {
ctx.bezierCurveTo(
point[i].c1x,
point[i].c1y,
point[i].c2x,
point[i].c2y,
point[i].ex,
point[i].ey
)
}
ctx.stroke()
if (undefined != is_fill) {
ctx.fill() // Fill in the figures ( The figure drawn after will overwrite the previous figure , Pay attention to the order when drawing )
}
},
selectColorEvent(event) {
console.log(event)
var color = event.currentTarget.dataset.colorValue
var colorSelected = event.currentTarget.dataset.color
this.setData({
selectColor: colorSelected,
lineColor: color
})
},
// Set up canvas Background color Not set up Derived canvas The background is transparent
//@params： character string color
setCanvasBg(color) {
console.log(' Start setting the background color ')
/* take canvas The background is set to white background , Not set up Derived canvas The background is transparent */
//rect() Parameter description Abscissa of the upper left corner of the rectangular path , The ordinate of the upper left corner , The width of the rectangular path , The height of the rectangular path
// Here is canvasHeight - 4 Because the bottom covers the border , So write down manually
this.data.ctx.rect(0, 0, this.data.canvasWidth, this.data.canvasHeight - 4)
this.data.ctx.fillStyle = color
this.data.ctx.fill() // Set the fill
},
// Save to album
saveCanvasAsImg() {
wx.canvasToTempFilePath({
canvas: this.canvas,
fileType: 'png',
quality: 1, // Picture quality
success(res) {
// console.log(res.tempFilePath, 'canvas Generate image address ');
wx.saveImageToPhotosAlbum({
filePath: res.tempFilePath,
success(res) {
wx.showToast({
title: ' Saved to album ',
duration: 2000
})
}
})
}
})
},
// preview
previewCanvasImg() {
wx.canvasToTempFilePath({
canvas: this.canvas,
fileType: 'jpg',
quality: 1, // Picture quality
success(res) {
console.log(res)
console.log(res.tempFilePath, 'canvas Generate image address ')
wx.previewImage({
urls: [res.tempFilePath] // The preview image Array
})
}
})
},
// Upload
uploadCanvasImg() {
wx.canvasToTempFilePath({
canvas: this.canvas,
fileType: 'png', // png Default no background is transparent , It can be changed jpg
quality: 1, // Picture quality
success(res) {
// console.log(res.tempFilePath, 'canvas Generate image address ');
// Upload
wx.uploadFile({
url: 'https://example.weixin.qq.com/upload', // Just for the sample , Unreal interface address
filePath: res.tempFilePath,
name: 'file_signature',
formData: {
user: 'test'
},
success(res) {
const data = res.data
// do something
}
})
}
})
}
}
})
</script>
<script type="application/json">
{
"navigationBarTitleText": " Handwritten signature "
}
</script>
<style lang="stylus" scoped>
page
background #fbfbfb
height auto
overflow hidden
.wrapper
width 100%
height 95vh
margin 30rpx 0
overflow hidden
display flex
align-content center
flex-direction row
justify-content center
font-size 28rpx
.handWriting
background #fff
width 100%
height 95vh
.handRight
display inline-flex
align-items center
.handCenter
border 4rpx dashed #e9e9e9
flex 5
overflow hidden
box-sizing border-box
.handTitle
transform rotate(90deg)
flex 1
color #666
.handBtn button
font-size 28rpx
.handBtn
height 95vh
display inline-flex
flex-direction column
justify-content space-between
align-content space-between
flex 1
.delBtn
position absolute
top 250rpx
left 0rpx
transform rotate(90deg)
color #666
.delBtn image
position absolute
top 13rpx
left 25rpx
.subBtn
position absolute
bottom 52rpx
left -3rpx
display inline-flex
transform rotate(90deg)
background #008ef6
color #fff
margin-bottom 30rpx
text-align center
justify-content center
.black-select
width 60rpx
height 60rpx
position absolute
top 30rpx
left 25rpx
.black-select.color_select
width 90rpx
height 90rpx
top 30rpx
left 10rpx
.red-select
width 60rpx
height 60rpx
position absolute
top 140rpx
left 25rpx
.red-select.color_select
width 90rpx
height 90rpx
top 120rpx
left 10rpx
</style>
Image resources
边栏推荐
- ActiveMQ message component publish subscribe redelivery message redelivery
- Picture format -webp
- pytoch总结—TENSOR 和NUMPY相互转换
- Wechat applet project: tab navigation bar
- Member inner class, static inner class, local inner class
- NPM common commands
- Lffd: a lightweight fast face detector for edge detection
- uniapp引入组件不生效解决方法
- Debug H5 page -vconsole
- Share code snippets of wechat applet
猜你喜欢
What is hyperfusion? What is the difference with traditional architecture
使用GPU训练kernel切换
Verilog size and +: Using
Remember to customize the top navigation bar of wechat applet
Universal target detection based on region attention
pytorch总结学习系列-数据操作
图片格式-webp
微信小程序用户拒绝授权地理位置信息再次调起授权窗口
Open3d farthest point sampling (FPS)
AugFPN：改進多尺度特征學習用於目標檢測
随机推荐
js轮播图观后重做（较长的完整版，可运行）
What is hyperfusion? What is the difference with traditional architecture
Remember to customize the top navigation bar of wechat applet
Unity C＃ 网络学习（十二）——Protobuf生成协议
SSD improvements cfenet
What is the difference between hyperconverged architecture and traditional architecture?
调试H5页面-vConsole
手写VirtualDOM
MySQL virtual column
Can we trust bounding box annotations for object detection
(transfer) mysql: error 1071 (42000): specified key was too long; max key length is 767 bytes
微信小程序wx.navigateBack返回上一页携带参数
Picture format -webp
DevOps到底是什么意思？
pytorch学习总结—运算的内存开销
npm常用命令
Verilog equivalent operator
Wechat applet jump to official account image and text content
Pointnet/pointnet++ training and testing
Wechat applet wx Navigateback returns the parameters carried on the previous page
