SD_ CMD_ RECEIVE_ SHIFT_ REGISTER

1. Interface

• Normal clock reset soft reset
• Enter the current status of the entry in_current_state as well as sd Send the command line in_serial_cmd, Here's what's interesting , from sd The card was sent in_serial_cmd It is the single that makes up the response bit The signal
• Received bit Count in_has_receive_bit
• Response type in_long_response,1 Long 0 short
• Report crc Check for errors out_cmd_receive_crc_error
• Four response signals response[3:0]

input       in_sd_clk                  ;
input       hrst_n                     ;
input       in_soft_reset              ;


input [2:0] in_current_state           ;
input       in_serial_cmd              ;

input [7:0] in_has_receive_bit         ;
input       in_long_response           ;

output       out_cmd_receive_crc_error ;
output       response0                 ;
output       response1                 ;
output       response2                 ;
output       response3                 ;

2. Response output generation

• The format of long response is shown in the following figure

• among start bit Not recorded , That is, from the transmission bit , We started from 8 Bit is also [7] Start shift deposit
• response3 The highest 8bit=0, be left over 24bit from in_serial_cmd Normal read

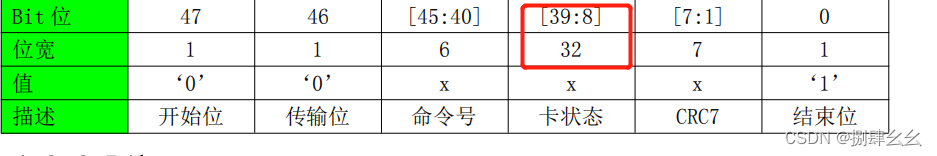

• Short response only response0 That's enough , The format is as follows ：


always @(posedge in_sd_clk or negedge hrst_n) begin
    if(!hrst_n)
        begin
            response0 <= 32'b0;
            response1 <= 32'b0;
            response2 <= 32'b0;
            response3 <= 32'b0;
        end
    else if (!in_soft_reset)
        begin
            response0 <= 32'b0;
            response1 <= 32'b0;
            response2 <= 32'b0;
            response3 <= 32'b0;
        end
    else if (in_current_state == `CMD_STATE_SEND)
        begin
            response0 <= 32'b0;
            response1 <= 32'b0;
            response2 <= 32'b0;
            response3 <= 32'b0;
        end
    else if (in_current_state == `CMD_STATE_RECEIVE)
        begin
            if(in_long_response)
                begin
                    if((in_has_receive_bit >= 7) && (in_has_receive_bit <=30))
                        response3 <= {
    response3[30:0],in_serial_cmd};
                    else if((in_has_receive_bit >= 31) && (in_has_receive_bit <= 62))
                        response2 <= {
    response2[30:0],in_serial_cmd};
                    else if((in_has_receive_bit >= 63) && (in_has_receive_bit <= 94))
                        response1 <= {
    response1[30:0],in_serial_cmd};
                    else if((in_has_receive_bit >= 95) && (in_has_receive_bit <= 126))
                        response0 <= {
    response0[30:0],in_serial_cmd};
                end
            else if((in_has_receive_bit >= 7) && (in_has_receive_bit <= 38))
                response0 <= {
    response0[30:0],in_serial_cmd};
        end
end

3. Received by sd From card crc7 Check the signal

• First order crc yes 8 Bit
• Also by in_serial_cmd Single line transmission , Therefore, it is also necessary to move and deposit
• Appearance correspondence crc The position in the format is as follows ：

• Short corresponding crc The position in the format is as follows ：


always @(posedge in_sd_clk or negedge hrst_n) begin
    if(!hrst_n)
        receive_cec_reg <= 7'b0;
    else if (!in_soft_reset)
        receive_cec_reg <= 7'b0;
    else if (in_current_state == `CMD_STATE_SEND)
        receive_cec_reg <= 7'b0;
    else if (in_current_state == `CMD_STATE_RECEIVE)
        begin
            if (in_long_response)
                begin
                    if((in_has_receive_bit >= 127) && (in_has_receive_bit <= 133))
                        receive_cec_reg <= {
    receive_cec_reg[5:0],in_serial_cmd};
                end
            else begin
                 if((in_has_receive_bit >= 39) && (in_has_receive_bit <= 45))
                     receive_cec_reg <= {
    receive_cec_reg[5:0],in_serial_cmd};
             end
         end
end

4. Calculate for yourself crc7 Value

• You need to calculate again crc The value of comes from sd Card received crc compare
• If the same , Then the command is ok , If it is not the same , Report an error out_cmd_receive_crc_error

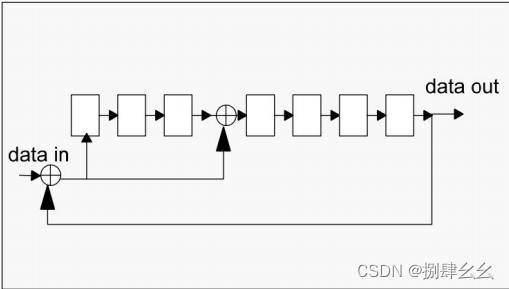

• Calculation crc7 Methods ：[0] and [3] These two bits need to be XOR , Other shifts are ok , See the picture below


always @(posedge in_sd_clk or negedge hrst_n) begin
    if(!hrst_n)
        receive_cec_reg <= 7'b0;
    else if (!in_soft_reset)
        receive_crc_reg <= 7'b0;
    else if(in_current_state == `CMD_STATE_SEND)
        receive_crc_reg <= 7'b0;
    else if (in_current_state == `CMD_STATE_RECEIVE)
        begin
            if(in_long_response)
                begin
                    if((in_has_receive_bit >= 7) && (in_has_receive_bit <=126))
                        begin
                            generate_crc_reg[0] <= in_serial_cmd^generate_crc_reg[6];
                            generate_crc_reg[1] <= generate_crc_reg[0];
                            generate_crc_reg[2] <= generate_crc_reg[1];
                            generate_crc_reg[3] <= in_serial_cmd^generate_crc_reg[6]^generate_crc_reg[2];
                            generate_crc_reg[4] <= generate_crc_reg[3];
                            generate_crc_reg[5] <= generate_crc_reg[4];
                            generate_crc_reg[6] <= generate_crc_reg[5];
                        end
                end
            else
                begin
                    if((in_has_receive_bit >= 0) && (in_has_receive_bit <=38))
                        begin
                            generate_crc_reg[0] <= in_serial_cmd^generate_crc_reg[6];
                            generate_crc_reg[1] <= generate_crc_reg[0];
                            generate_crc_reg[2] <= generate_crc_reg[1];
                            generate_crc_reg[3] <= in_serial_cmd^generate_crc_reg[6]^generate_crc_reg[2];
                            generate_crc_reg[4] <= generate_crc_reg[3];
                            generate_crc_reg[5] <= generate_crc_reg[4];
                            generate_crc_reg[6] <= generate_crc_reg[5];
                        end
                end
        end
end

5. contrast crc7 produce out_cmd_receive_crc_error

• We received receive_crc_reg
• Later we calculated generate_crc_reg
• After receiving, that is 135 perhaps 47bit You can make a comparison

always @(posedge in_sd_clk or negedge hrst_n) begin
    if (!hrst_n)
        out_cmd_receive_crc_error <= 1'b0;
    else if (!in_soft_reset)
        out_cmd_receive_crc_error <= 1'b0;
    else if (in_current_state == `CMD_STATE_SEND)
        out_cmd_receive_crc_error <= 1'b0;
    else if (in_current_state == `CMD_STATE_RECEIVE)
        begin
            if (in_long_response)
                begin
                    if(in_has_receive_bit == 134)
                        out_cmd_receive_crc_error <= !(generate_crc_reg == receive_crc_reg);
                end
            else if (in_has_receive_bit == 46)
                out_cmd_receive_crc_error <= !(generate_crc_reg == receive_crc_reg);
        end
end
